Brother MFC-9010CN Service Manual

5-96
Confidential
8.38 Panel Ground Plate 2
(Only the models without the USB direct interface)

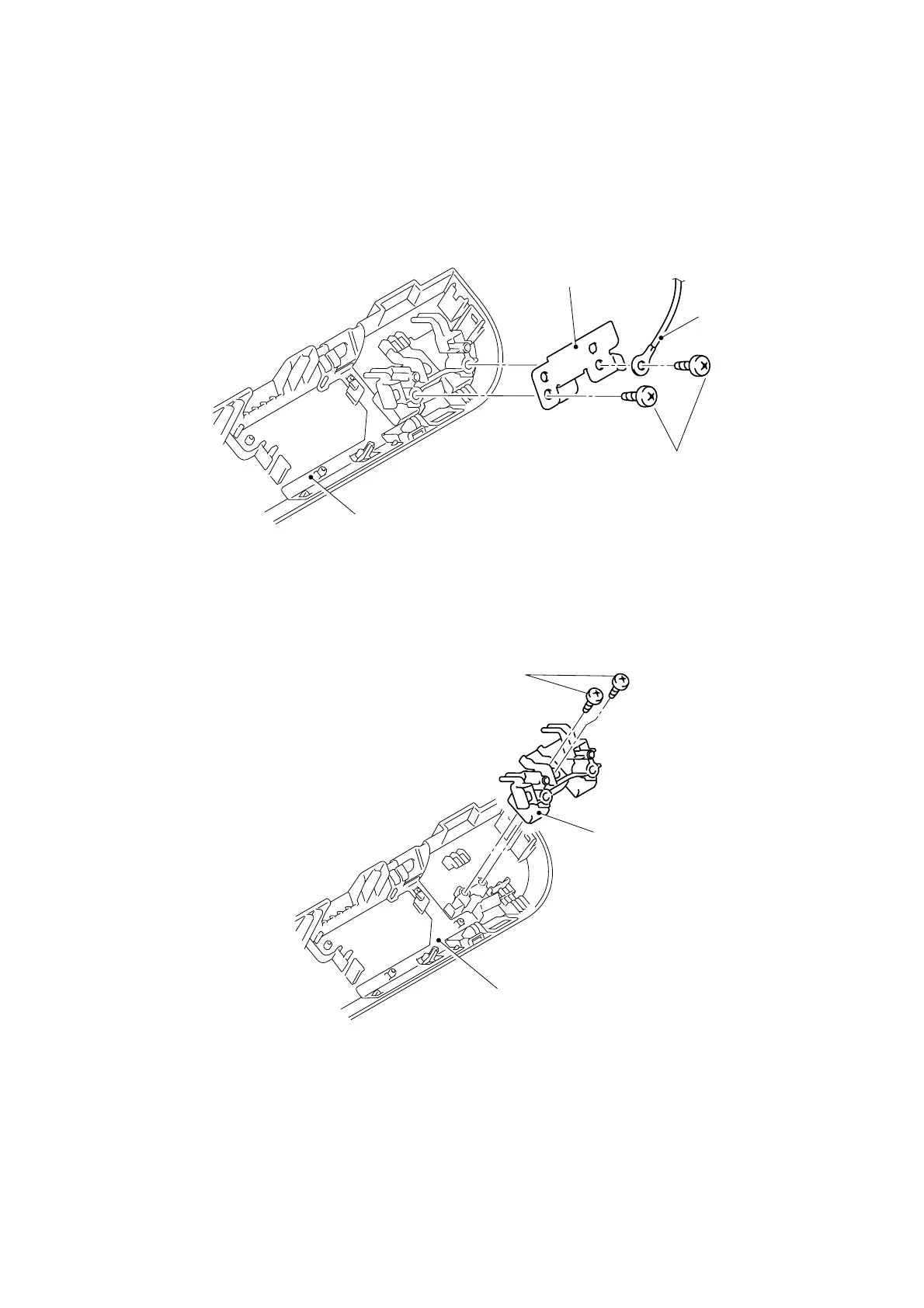

(1) Remove the two Taptite bind B M3x8 screws and FG harness.
(2) Remove the Panel ground plate 2 from the Front cover top ASSY.
Fig. 5-98
(3) Remove the two Taptite bind B M3x8 screws, and then remove the USB holder from the
Front cover top ASSY.
Fig. 5-99
Taptite bind B M3x8
Front cover top ASSY
FG harness
Panel ground plate 2
Taptite bind B M3x8
USB holder
Front cover top ASSY
