5-198
Confidential

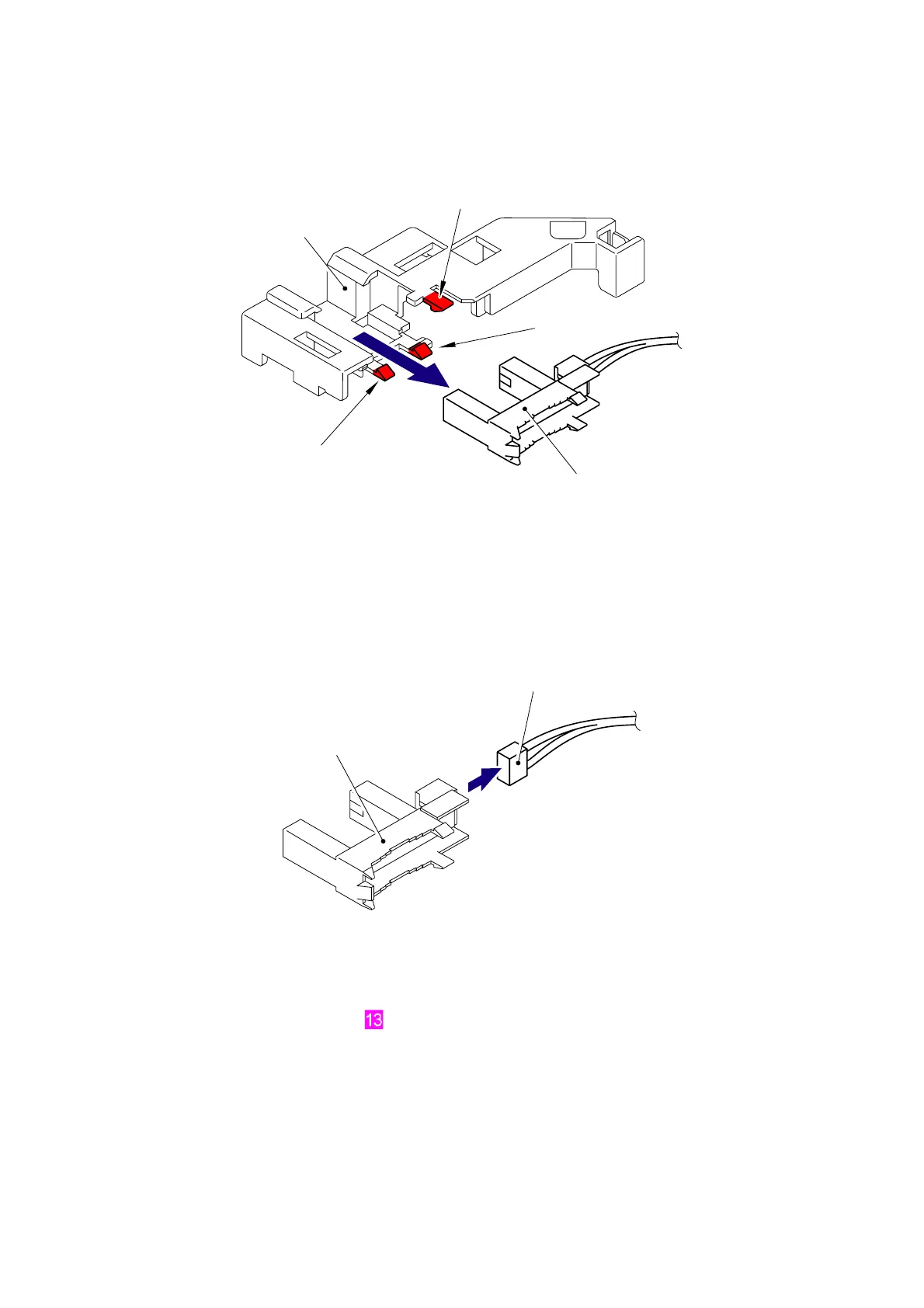

(4) Release the three Hooks to remove the Waste toner sensor from the Waste toner sensor holder.
Fig. 5-261
(5) Disconnect the Connector of the Waste toner harness ASSY from the Waste toner sensor.
Fig. 5-262
Harness routing: Refer to “ Waste Toner Sensor.”
Waste toner sensor holder
Hook
Waste toner sensor
Hook
Hook
Waste toner sensor
Waste toner harness ASSY
