5-197
Confidential

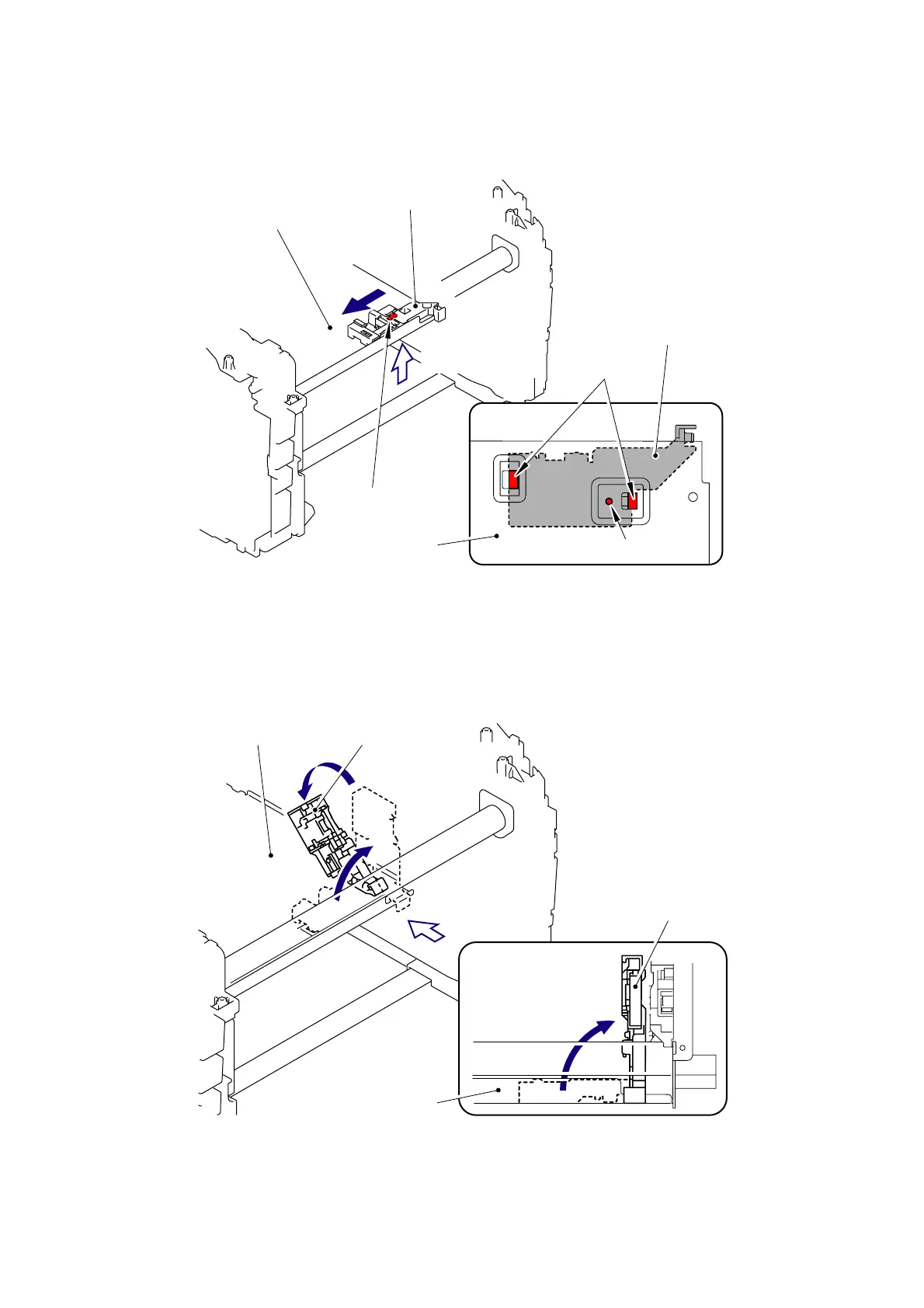

(2) Press the Pin of the Waste toner sensor holder and slide the Waste toner sensor holder to
the left.
Fig. 5-259
(3) Remove the Waste toner sensor holder from the Middle plate sub ASSY as shown in the
figure below.
Fig. 5-260
Pin
Waste toner sensor holder
Pin
Waste toner sensor holder
Hook
Middle plate sub ASSY
Middle plate sub ASSY
A view
<A view>
<Left side>
Middle plate sub ASSY
Waste toner sensor
Middle plate sub ASSY
Waste toner sensor holder
3a
3b
A view
<A view>
holder
3a
