5-180
Confidential
(4)
Disconnect
the Connector (CN3) from the High-voltage power supply PCB ASSY.

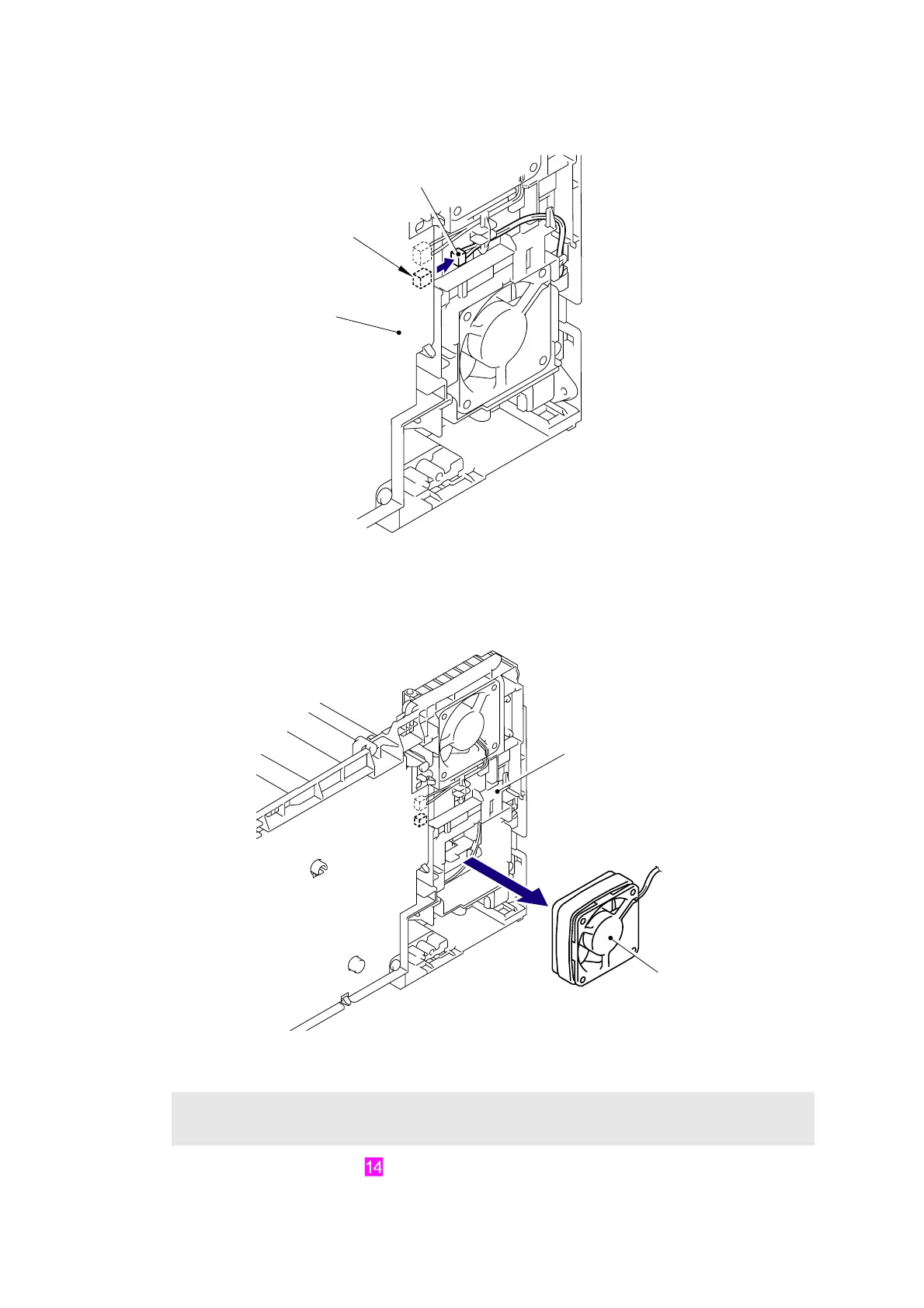

Fig. 5-229
(5) Remove the LV fan ASSY from the Side frame R.
Fig. 5-230
Harness routing: Refer to “ Main Fan ASSY, LV Fan ASSY.”
Assembling Note:
When assembling the LV fan ASSY, place it so that the attached label faces outwards.
High-voltage power supply
Connector
CN3
PCB ASSY
<Right side>
Side frame R
LV fan ASSY
<Right side>
