5-40
Confidential

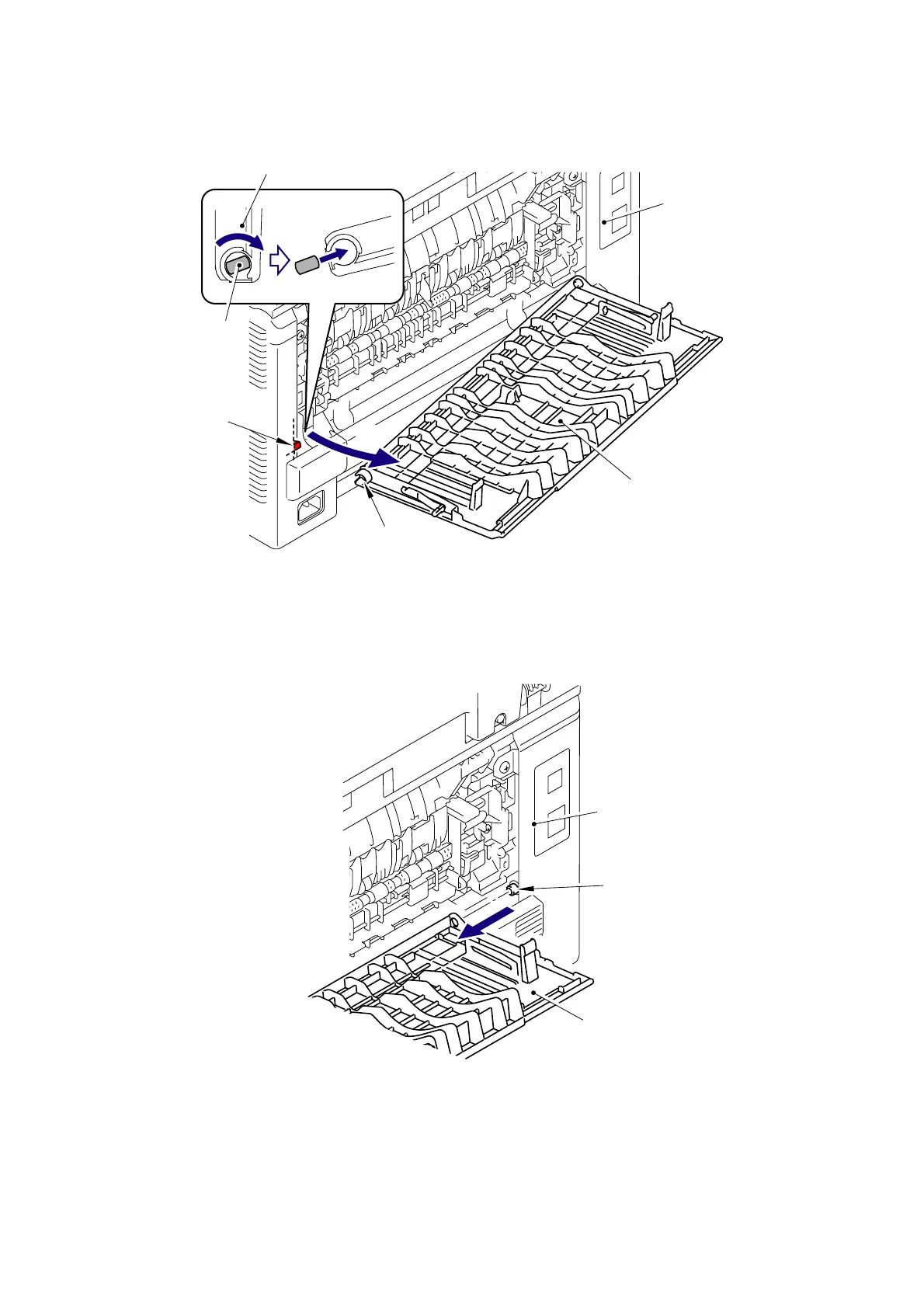

(3) Remove the Bush of the Back cover from the Shaft at the right side of the Main body.
Fig. 5-11
(4) Remove the Back cover from the Shaft at the left side of the Main body.
Fig. 5-12
Main body
Back cover
Bush
Bush
Shaft
Shaft
<Right side>
<Back side>
3a
3c
3b
Main body
Shaft
Back cover
<Left side>
