Brother MFC-9010CN Service Manual

5-201
Confidential

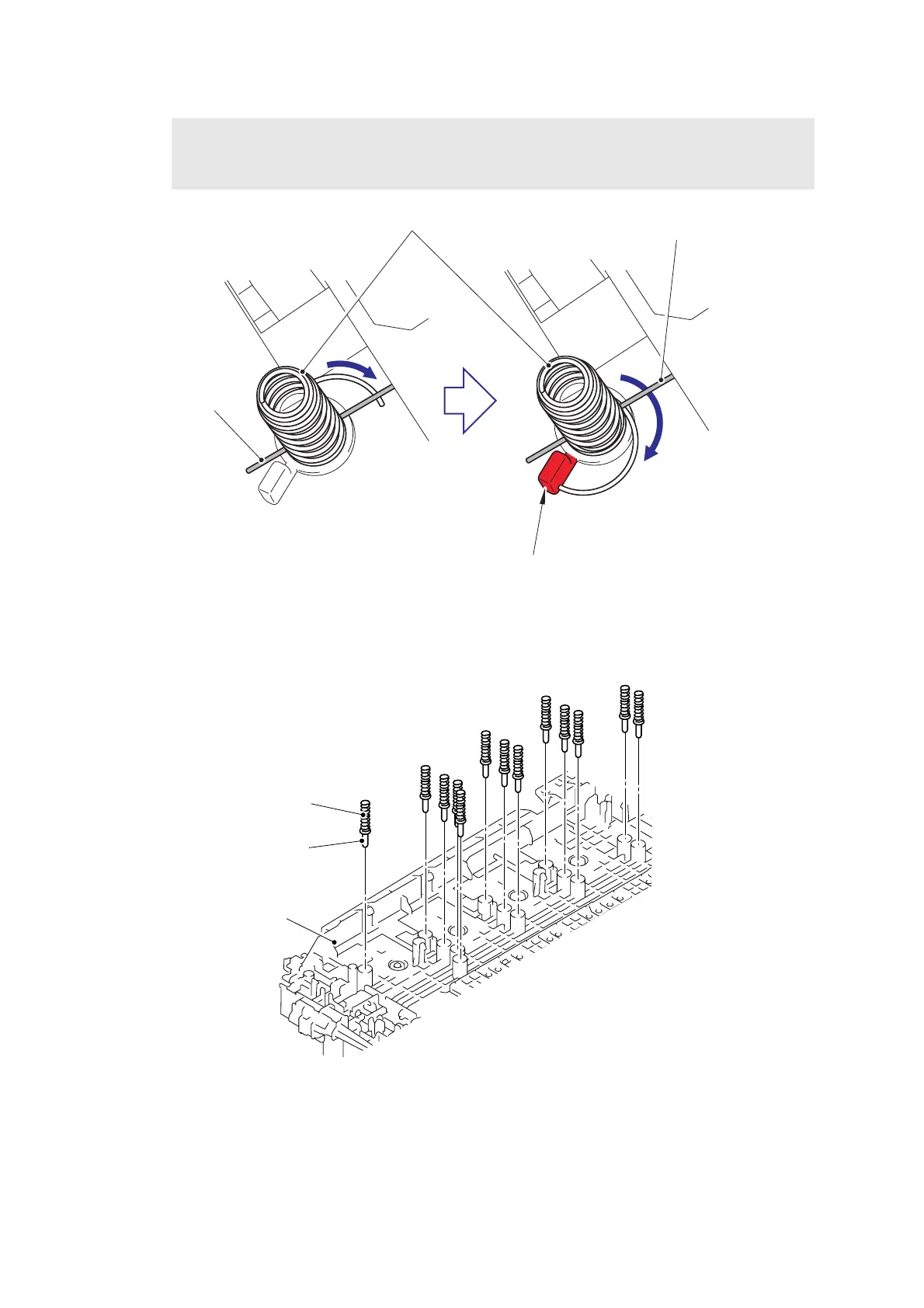

Fig. 5-267
(3) Remove the thirteen Electrode head 2 and thirteen Electrode spring 3 from the Side frame R.
Fig. 5-268
Assembling Note:
When assembling the Electrode spring 2, make sure to insert the tip of the Spring under the
TR head spring until it hits the Stopper as shown in the figure below.
Electrode spring 2
Stopper
TR head spring
TR head spring
Side frame R
Electrode head 2
Electrode spring 3
