5-72
Confidential

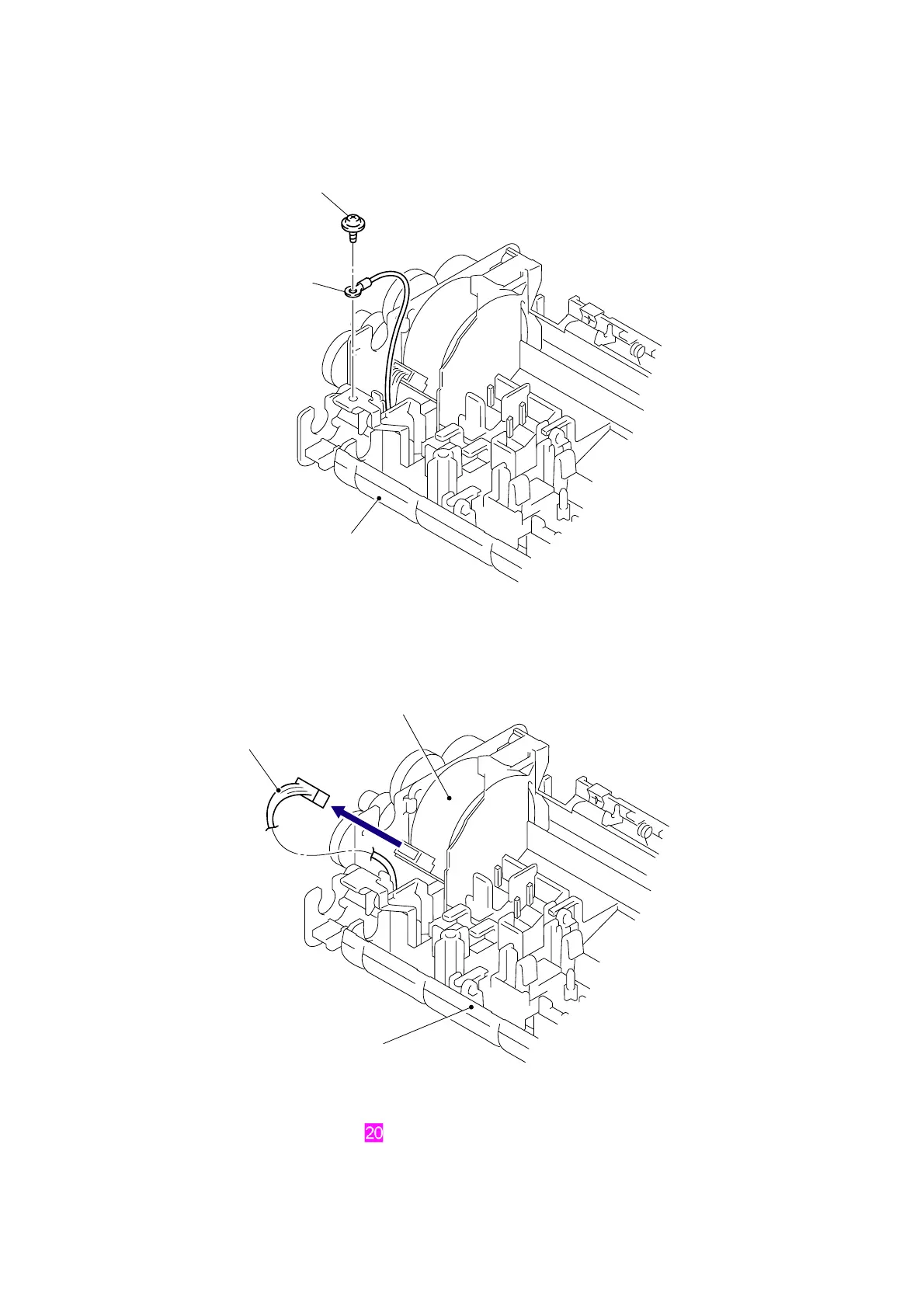

(3) Remove the Taptite cup S M3x6 SR screw, and then remove the ADF FG harness ASSY
from the Lower document chute ASSY.
Fig. 5-59
(4) Remove the ADF motor harness ASSY from the ADF motor.
Fig. 5-60
Harness routing: Refer to “ ADF Unit.”
Lower document chute ASSY
ADF FG harness ASSY
Taptite cup S M3x6 SR
ADF motor
ADF motor harness ASSY
Lower document chute ASSY
