Brother MFC-9010CN Service Manual

5-73
Confidential

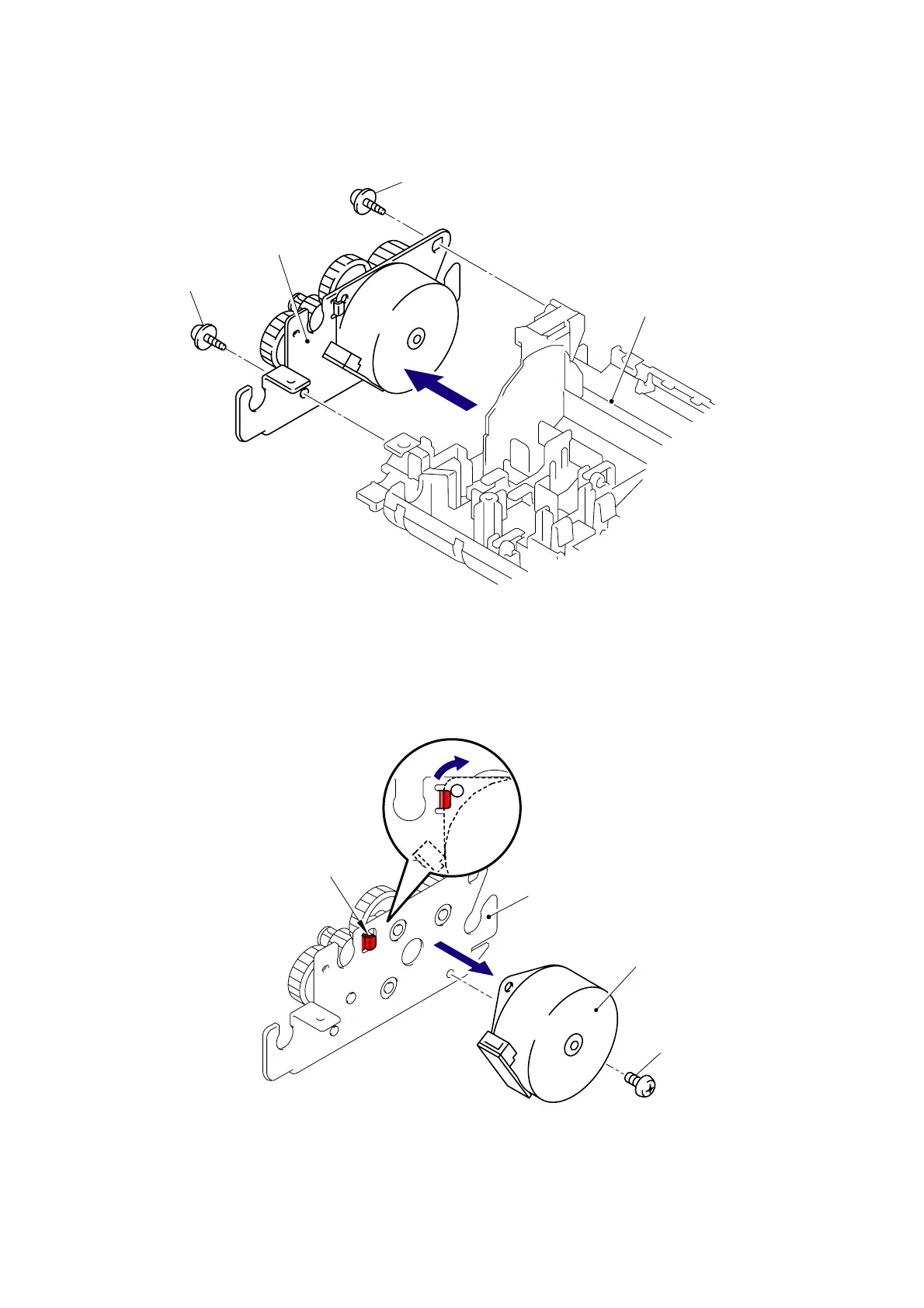

(5) Remove the two Taptite cup B M3x10 screws, and then remove the Drive frame ASSY
from the Lower document chute ASSY.
Fig. 5-61
(6) Remove the Taptite bind S M3x6 screw, and then remove the ADF motor from the
Drive frame ASSY.
Fig. 5-62
Taptite cup B M3x10
Lower document chute ASSY
Drive frame ASSY
Taptite cup B M3x10
Taptite bind S M3x6
Drive frame ASSY
ADF motor
Hook
6a
6b
