Brother MFC-9010CN Service Manual

5-47
Confidential

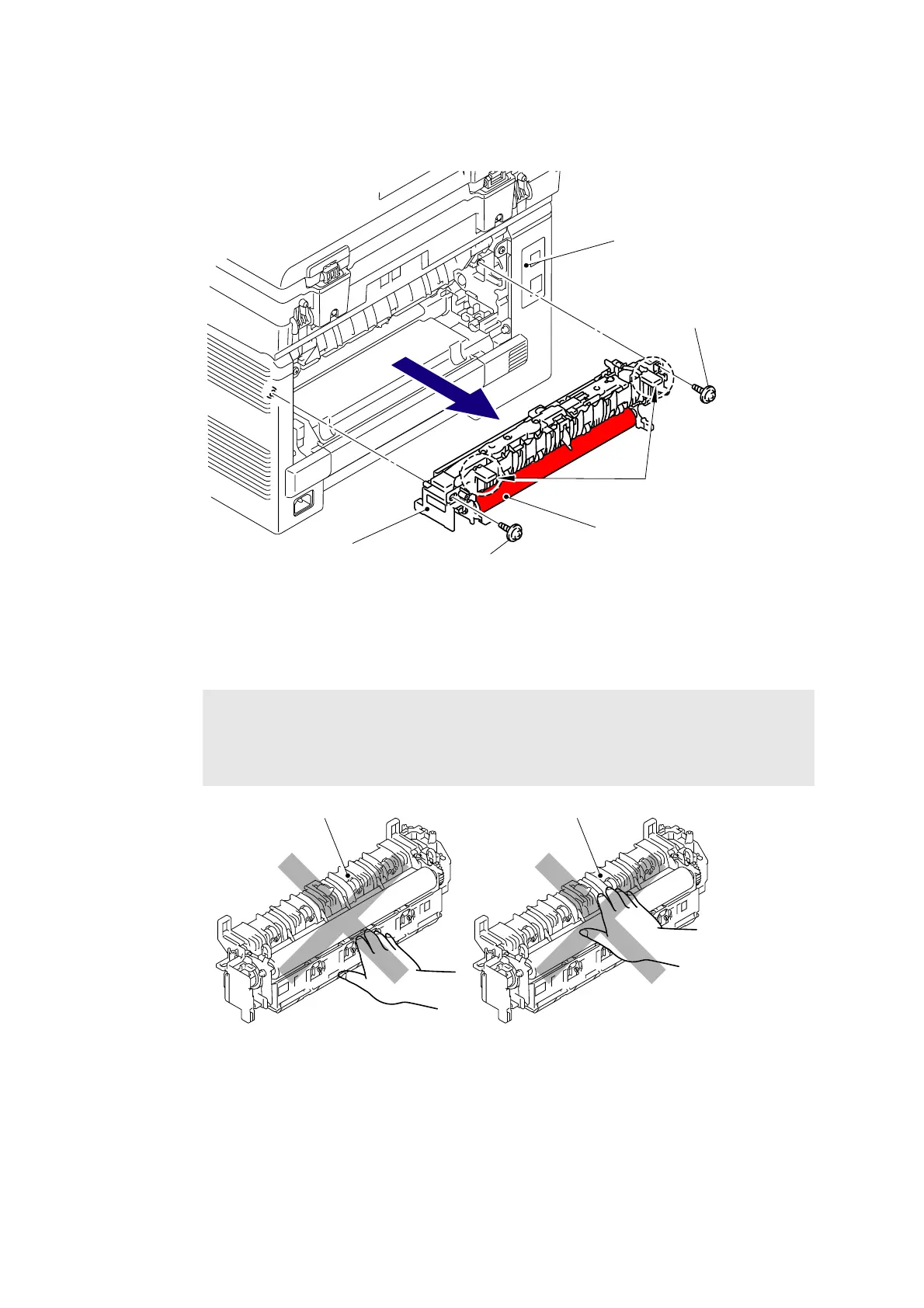

(5) Remove the two Taptite pan B M4x14 screws, and then remove the Fuser unit from the
Main body as holding the “A”.
Fig. 5-24
Fig. 5-25
Note:
- Do not apply a physical impact or vibration to the Fuser unit.
- Do not touch the roller and electrodes as shown in the figure below to prevent
breakage of the Fuser unit.
Taptite pan B M4x14
Taptite pan B M4x14
Fuser unit
Main body
“A”
<Back side>
Pressure roller ASSY
Fuser unit
Fuser unit
