Brother MFC-9010CN Service Manual

5-48
Confidential

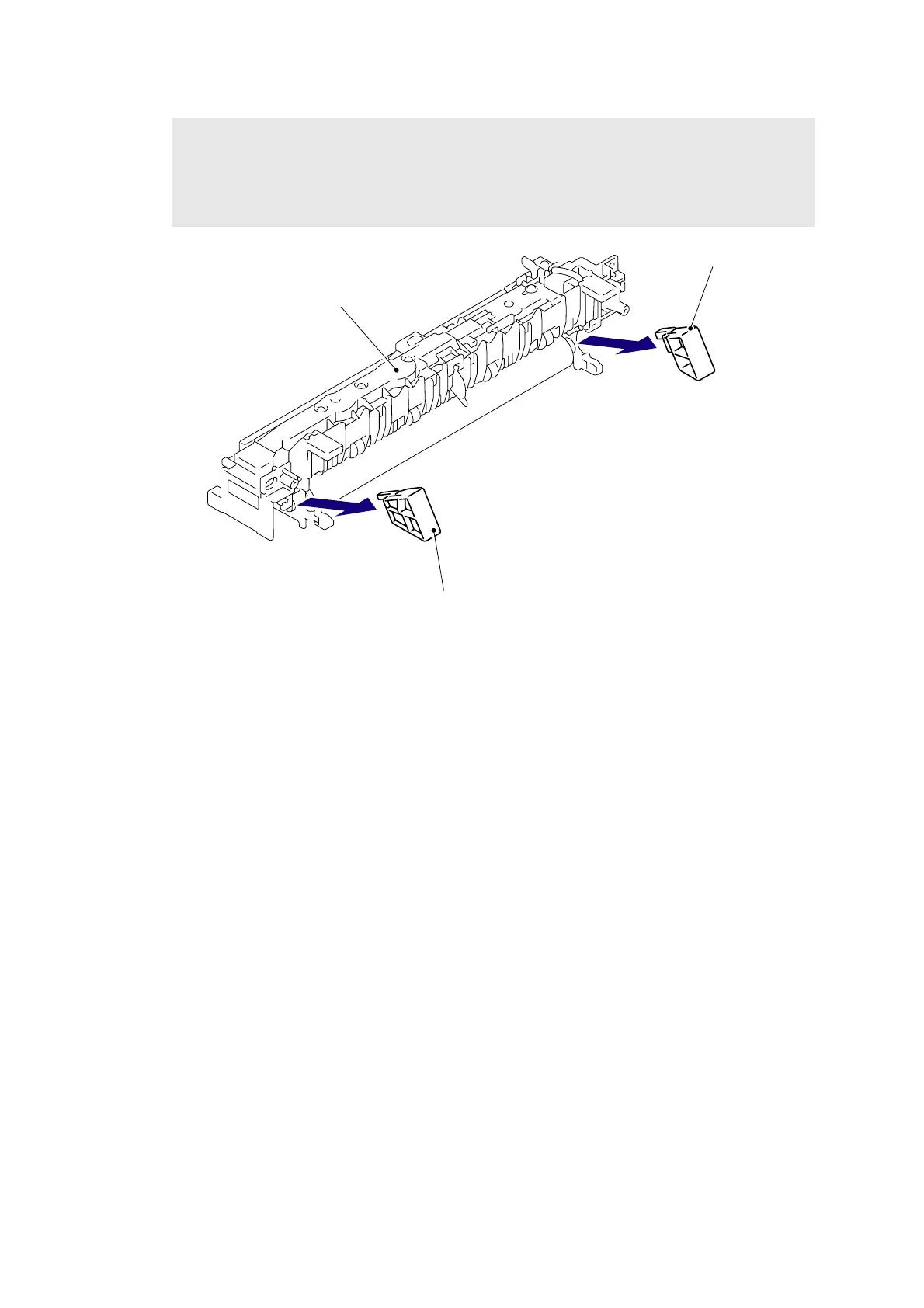

Fig. 5-26
Assembling Note:
The Fuser unit for replacement is transported while the pressure roller is held lightly to
prevent deformation of the pressure roller. When assembling the Fuser unit, make sure to
assemble the Fuser unit to the product first, and then remove the Spacer in the direction of
the arrow from the Fuser unit.
Fuser unit
Spacer
Spacer
