5-112
Confidential

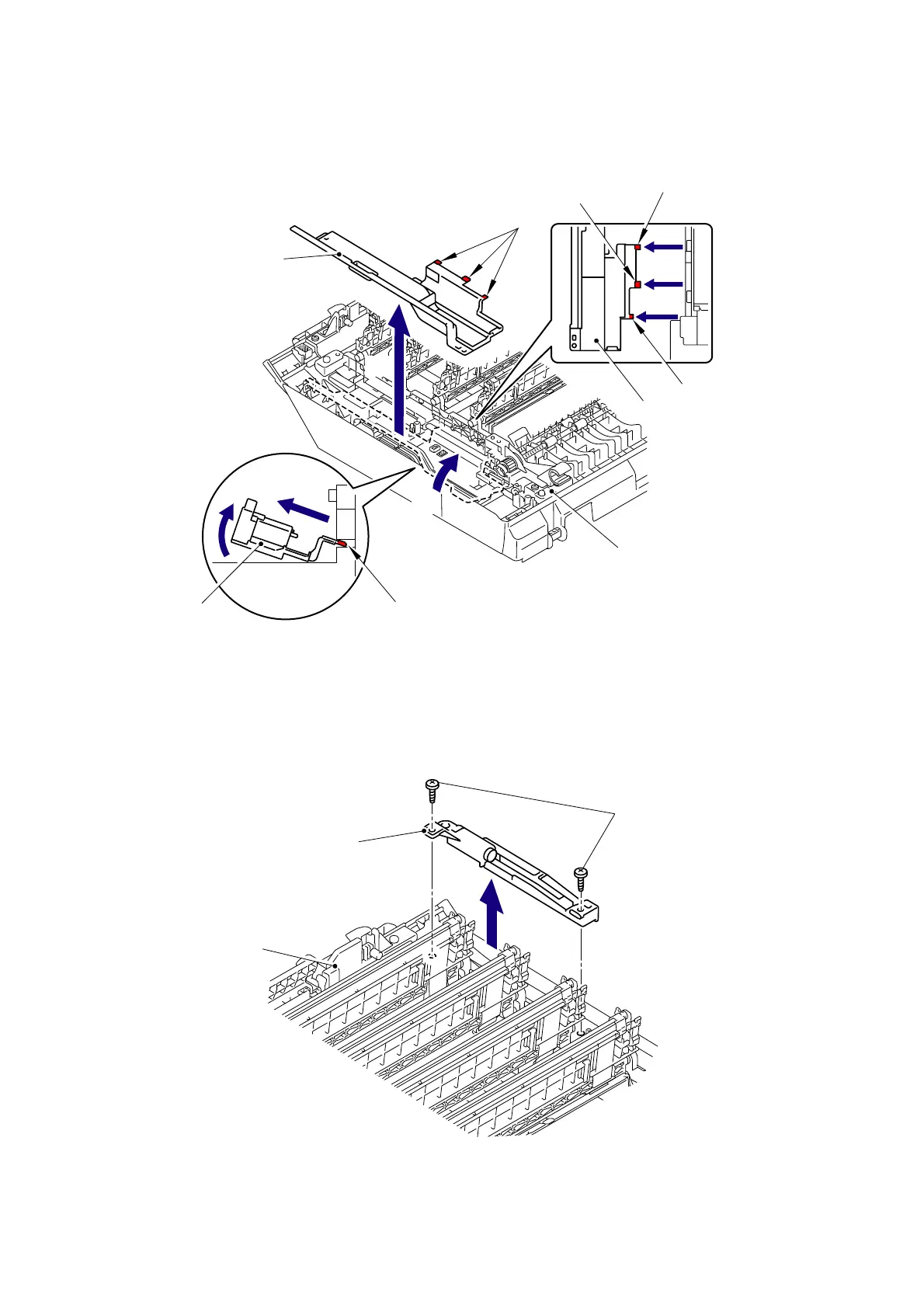

(3) Tilt the TC harness cover 1 in the direction of the arrow 3a, remove the three Hooks, and
remove the TC harness cover 1 from the Joint cover sub ASSY.
Fig. 5-125
(4) Remove the two Taptite bind B M4x12 screws, and then remove the Arm guide R from the
Joint cover sub ASSY
.
Fig. 5-126
Joint cover sub ASSY
TC harness cover 1
Hook
Hook
Hook
Hook
TC harness cover 1
Hook
TC harness cover 1
3b
3a
3a
3b
Taptite bind B M4x12
Joint cover sub ASSY
Arm guide R
