5-113
Confidential

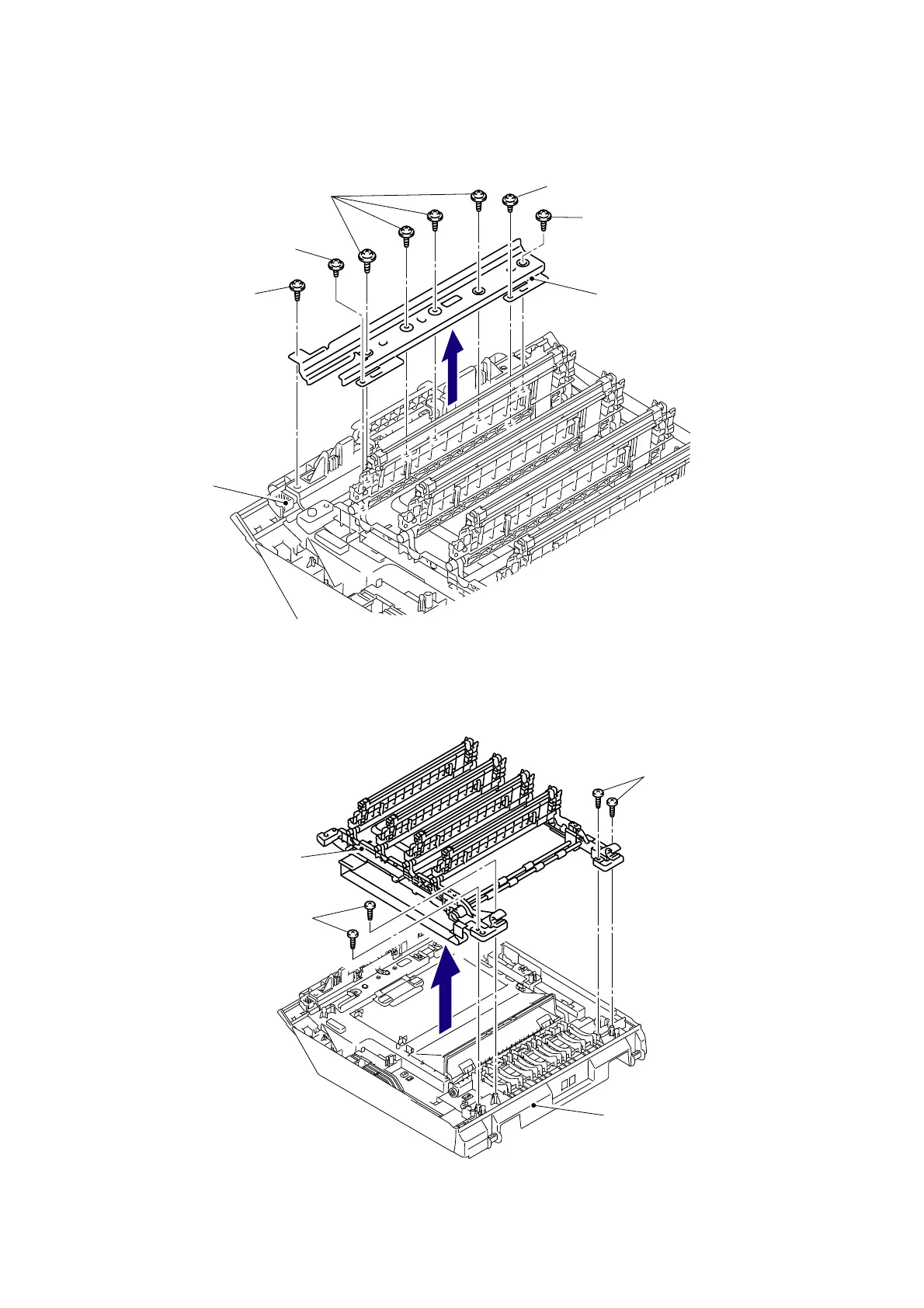

(5) Remove the six Taptite cup B M3x8 screws and two Taptite cup S M3x6 SR screws, and then
remove the Back up plate from the Joint cover sub ASSY.
Fig. 5-127
(6) Remove the four Taptite bind B M4x12 screws, and then remove the Sub frame ASSY
from the Joint cover sub ASSY.
Fig. 5-128
Taptite cup B M3x8
Taptite cup S M3x6 SR
Joint cover
Back up plate
Taptite cup S M3x6 SR
Taptite cup B M3x8
Taptite cup B M3x8
sub ASSY
Taptite bind B M4x12
Joint cover sub ASSY
Sub frame ASSY
Taptite bind B M4x12
