Brother MFC-9010CN Service Manual

5-115
Confidential

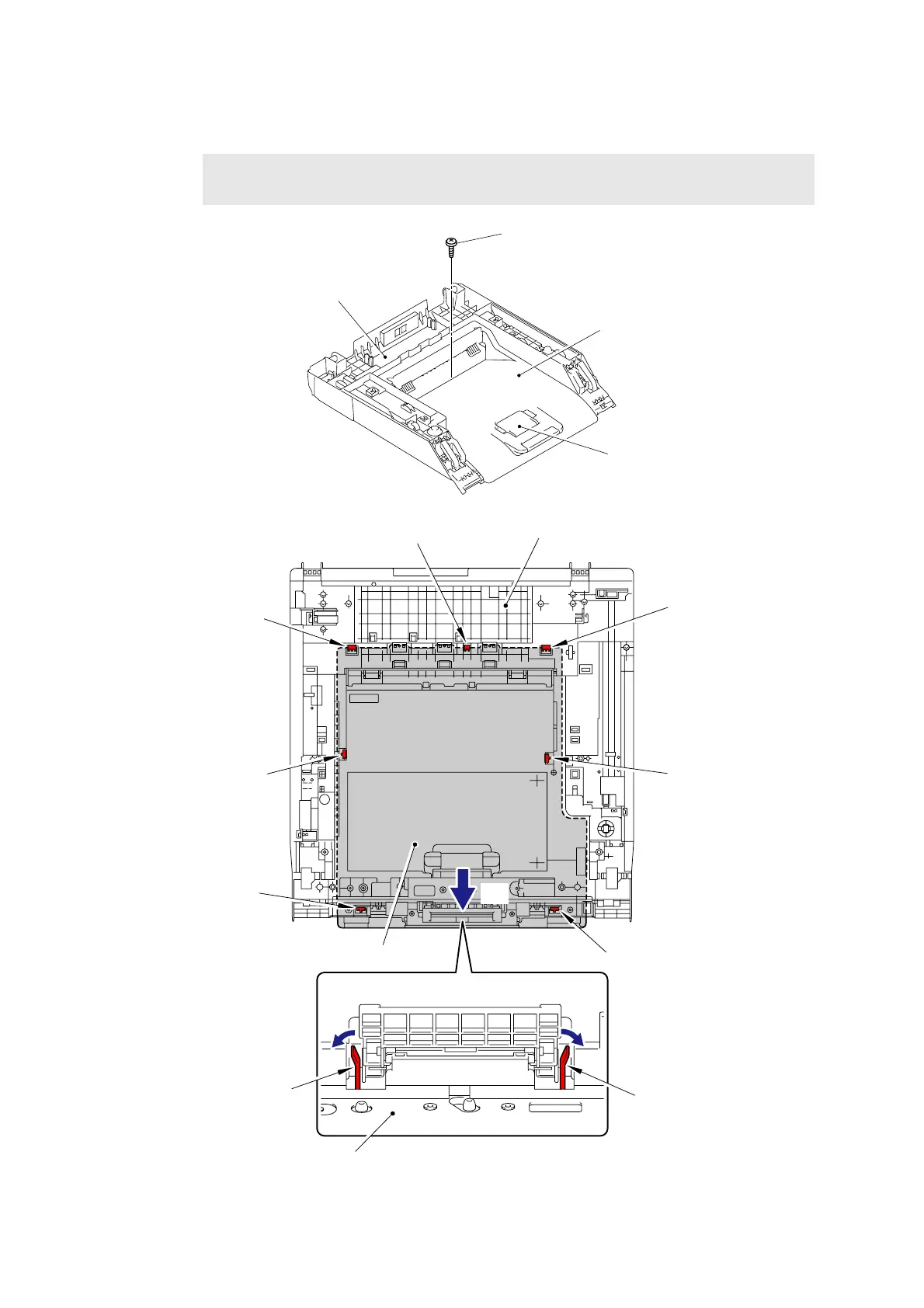

(8) Remove the Taptite bind B M4x12 screw, and then release the nine Hooks to remove the
Inner chute ASSY 1 from the Joint cover sub ASSY.
Fig. 5-130
Note:
When you remove any of the following parts, be careful not to damage the Paper stopper.
Joint cover sub ASSY
Inner chute ASSY 1
Paper stopper
Taptite bind B M4x12
Hook
Joint cover sub ASSY
Inner chute ASSY 1
Hook
Hook
Hook
Hook
Hook
Hook
Hook
Inner chute ASSY 1
Hook
8b
8a
8a
