5-153
Confidential

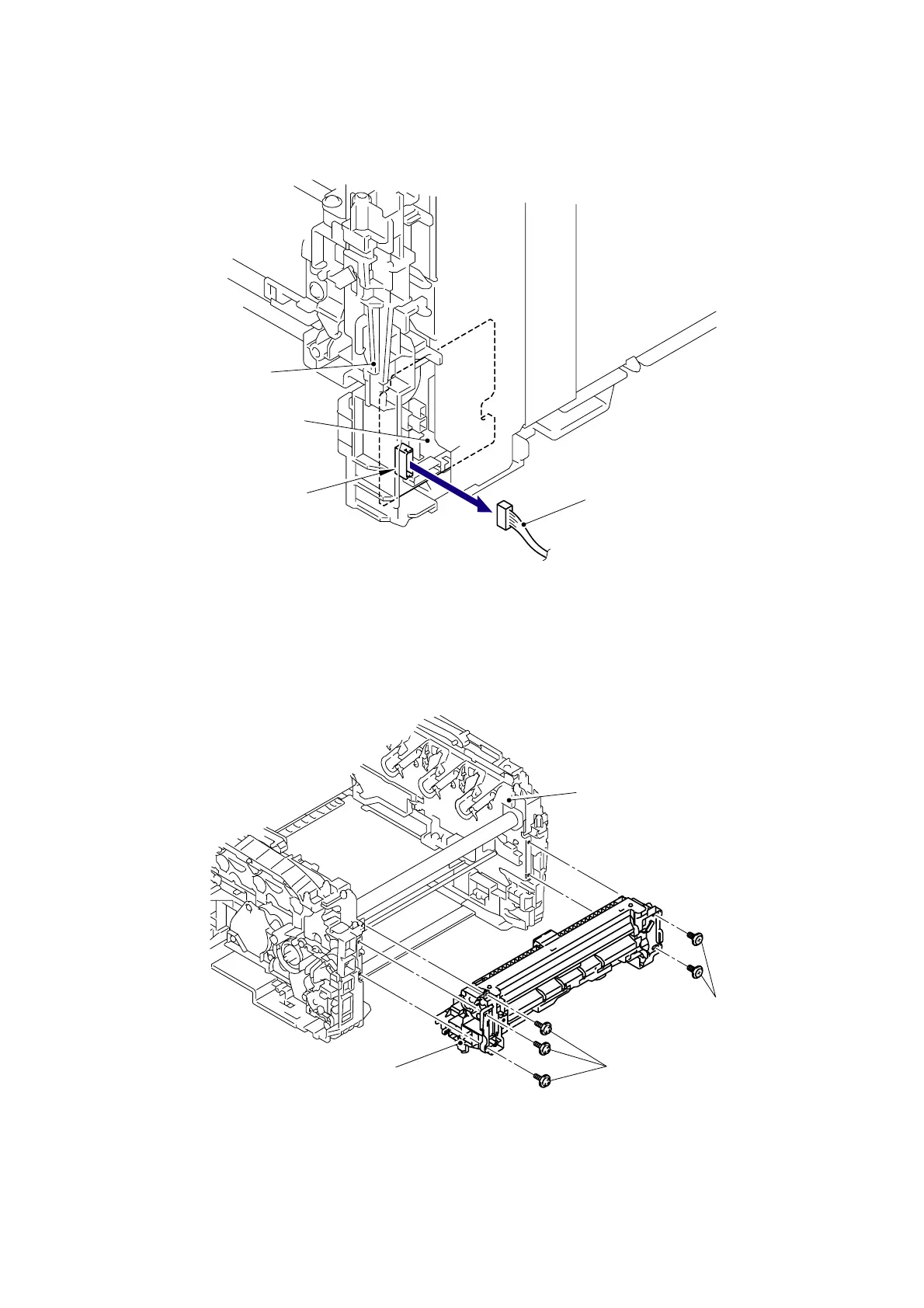

(5) Disconnect the Connector (CN3) of the Registration front/rear sensor harness ASSY from
the HVPS control PCB ASSY.
Fig. 5-184
(6) Remove the three Taptite cup S M3x6 SR screws and two Shoulder screws, and then
remove the Paper feed unit from the Main body.
Fig. 5-185
HVPS control PCB ASSY
CN3
Side frame R
Registration front/rear sensor
harness ASSY
<Right side>
Taptite cup S M3x6 SR
Shoulder screw
Main body
Paper feed unit
<Front>
