7-12
Confidential
[2] Printout of worker switch data (Function code 11)
<Function>
The machine prints out the setting items of the worker switches and their contents specified.
<Operating procedure>
(1) Press the 1 button twice in the initial state of the maintenance mode. The machine
displays “PRINTING” on the LCD.

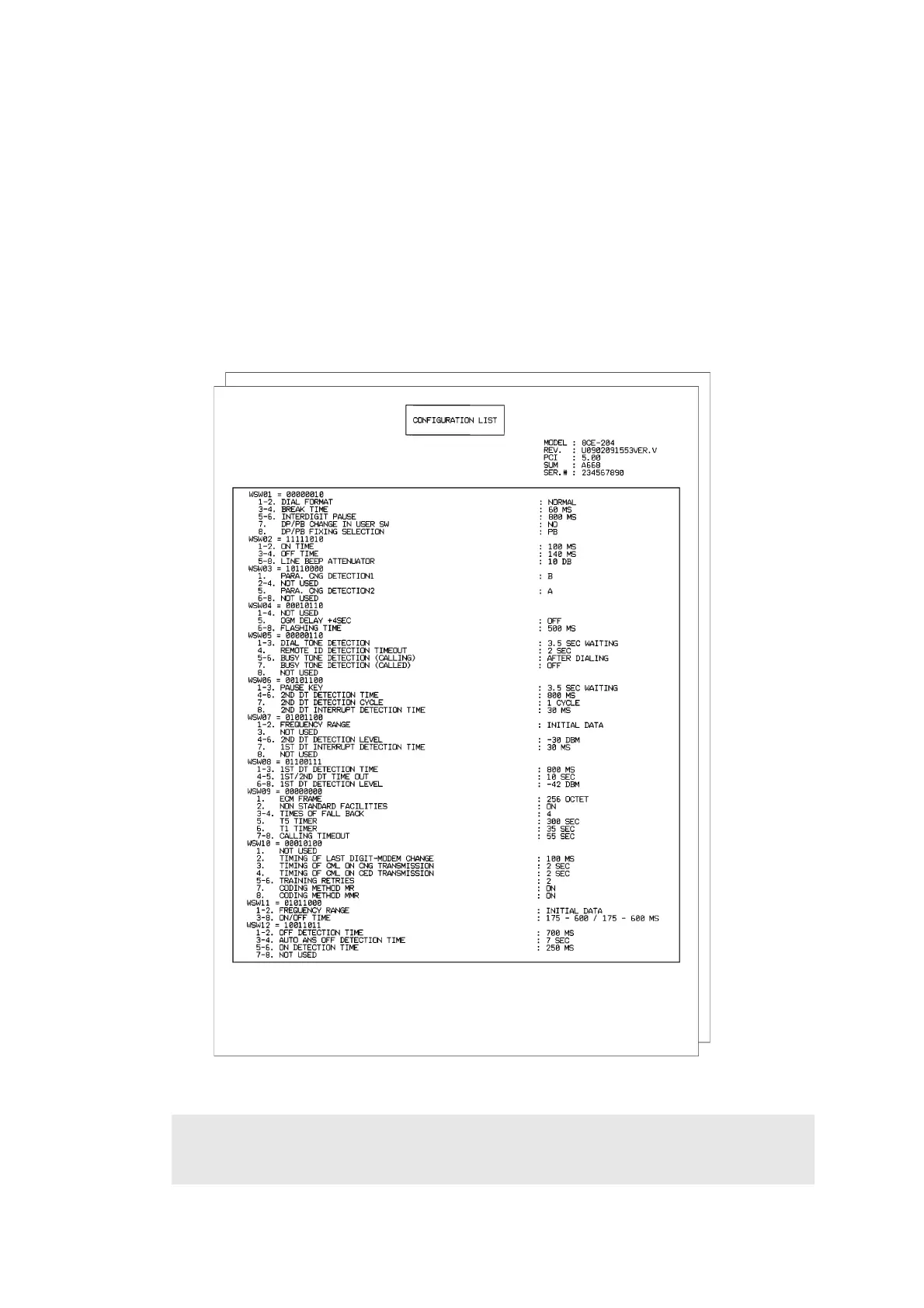

(2) Printing of CONFIGURATION LIST (see the figure below) starts, and when printing is
finished, the machine beeps for one second and returns to the initial state of the
maintenance mode.
Fig. 7-4
Note:
Although function names are printed in CONFIGURATION LIST for reasons of the
development of the program, some of them are not available on this machine.
