Programming Guide | VLT® AutomationDrive FC 360
e30bd380.10
0
Custom Readout (Value)
P 16-09
Custom Readout
Unit P 0-30
Max value
P 0-32
Min value
P 0-31
Motor Speed
Motor Speed
High limit
P 4-14 (Hz)
Linear Unit (e.g. Speed and flow)
Quadratic Unit (Pressure)
Cubic Unit (Power)
Linear
units only

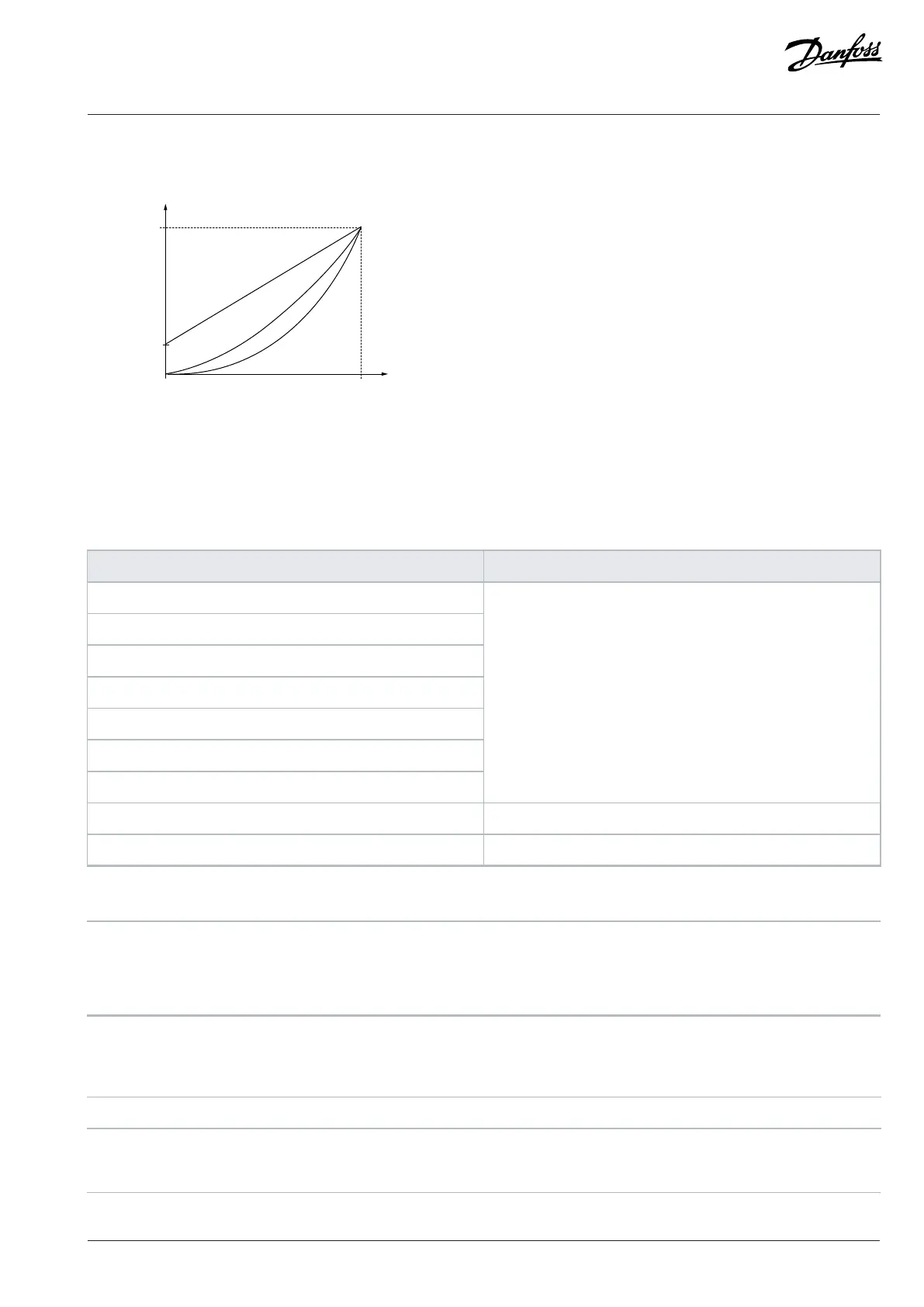

Figure 15: Custom Readout
The relation depends on the type of unit selected in parameter 0-30 Custom Readout Unit:
Table 11: Relation between Unit Type and Speed
Unit type Speed relation
Dimensionless
Speed
Flow, volume
Flow, mass
Velocity
Length
Temperature
Linear
Pressure Quadratic
Power Cubic
0-30 Custom Readout Unit
Default value: [1] % Parameter type: Option
Setup: 1 setup Conversion index: –
Data type: Uint8 Change during operation: True
Set a value to be shown in the LCP. The value has a linear, squared, or cubed relation to speed. This relation depends on the unit selected.
See the above table. The actual calculated value can be read in parameter 16-09 Custom Readout.
Option Name
[0] None
[1] %
