Danfoss VLT AutomationDrive FC 360 Programming Guide

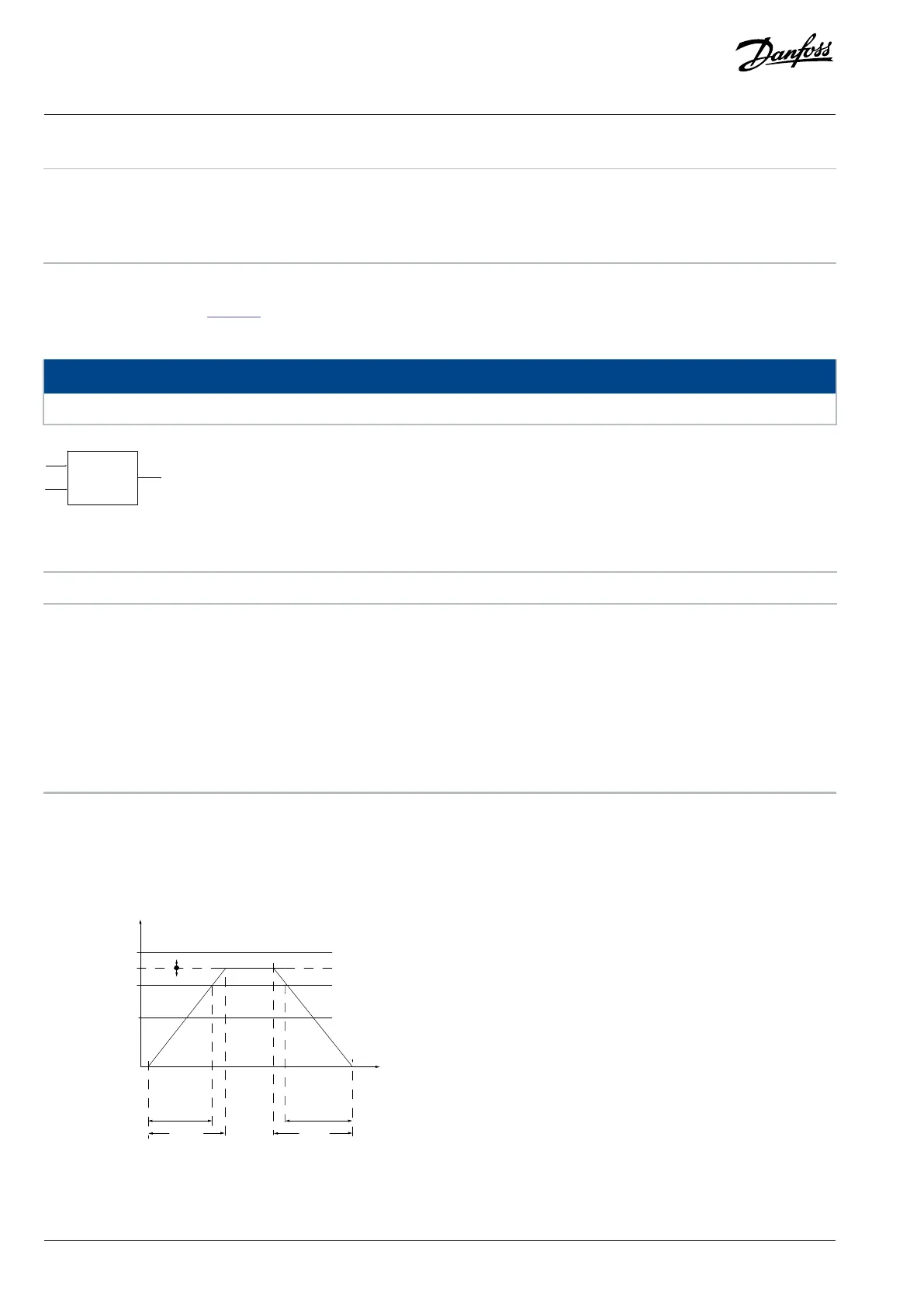

3-18 Relative Scaling Reference Resource
Default value: [0] No function Parameter type: Option
Setup: All setups Conversion index: –
Data type: Uint8 Change during operation: True
Select a variable value to be added to the fixed value (defined in parameter 3-14 Preset Relative Reference). The sum of the fixed and
variable values (labeled Y in Figure 23) is multiplied by the actual reference (labeled X in the following illustration). This product is then
added to the actual reference (X+X*Y/100) to give the resulting actual reference.
 NOTICE
This parameter cannot be adjusted while the motor is running.
Relative
Z= X+ X*Y/100
Resulting
actual
reference
Y
X
e30ba059.13
Z
Figure 23: Resulting Actual Reference
Option Name
[0] No function
[1] Analog Input 53
[2] Analog Input 54
[7] Frequency input 29
[8] Frequency input 33
[11] Local bus reference
4.4.3 3-4* Ramp 1
Configure the ramp parameter, ramping times, for each of the 4 ramps (parameter group 3-4* Ramp 1, parameter group 3-5* Ramp 2,
parameter group 3-6* Ramp 3, and parameter group 3-7* Ramp 4).
t
acc
t
dec
e30bd379.10
P 3-*2
Ramp (X)
Down
Time (Dec)
P 4-14
High-limit
Hz
Reference
P 1-23
Motor
frequency
P 4-12
Low limit
Time
P 3-*1
Ramp (X)Up
Time (Acc)
Figure 24: Example of Ramp 1
92 | Danfoss A/S © 2024.01 AU275649936274en-001401 / 130R0507
Programming Guide | VLT® AutomationDrive FC 360
