Programming Guide | VLT® AutomationDrive FC 360
Ref./Feedback
Analog input
High Ref./
Feedb. Value'
Low Ref./
Feedb. Value'
'Low Voltage'or
'Low Current'
'High Voltage'or
'High Current'
1 V 5 V 10 V
10
20
30
40
50
[V]
5
Par 6-xx
Par 6-xx
Par 6-xx
Par 6-xx
e30bd378.11

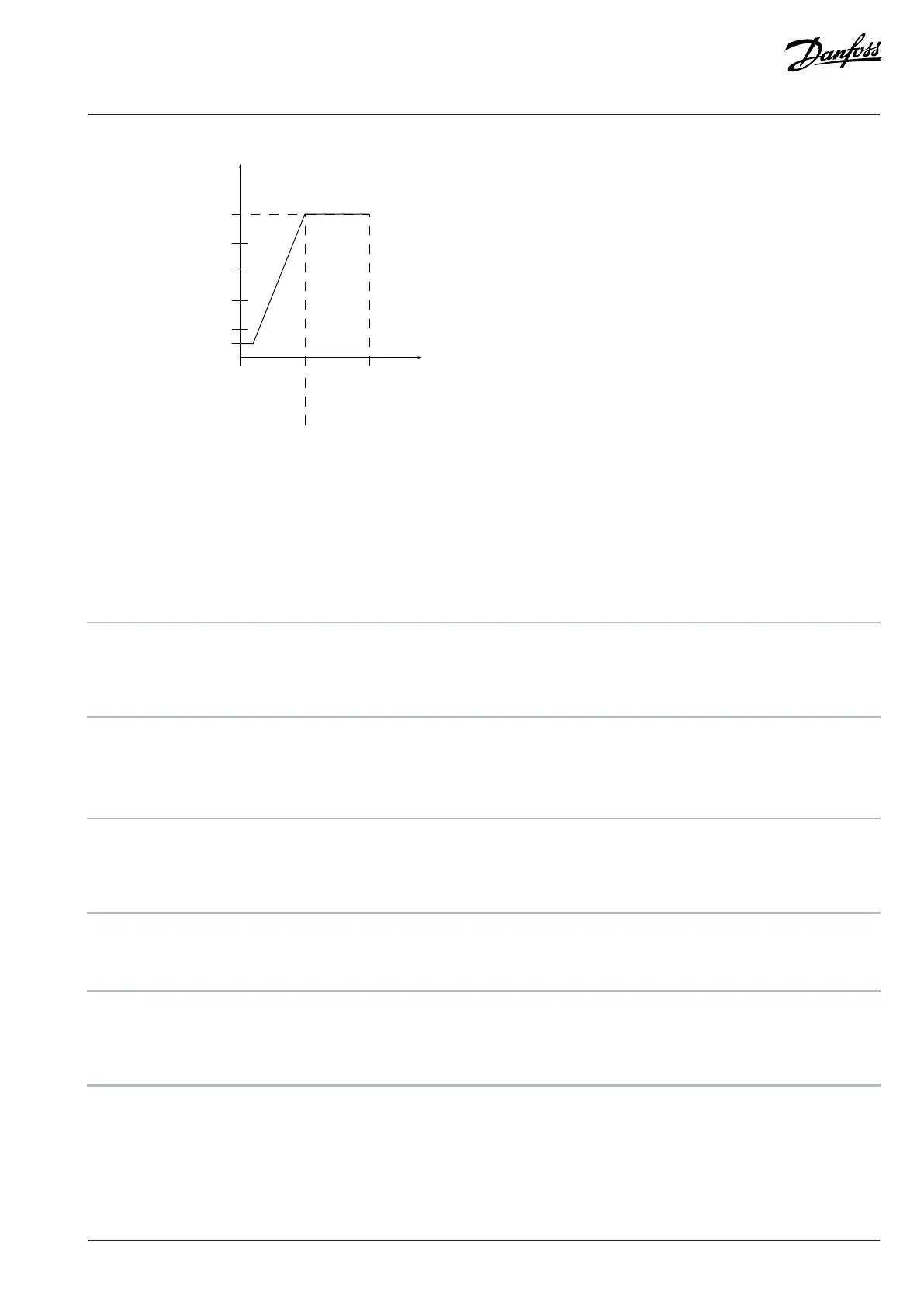

Figure 34: Timeout Function
4.7.3 6-1* Analog Input 53
Parameters for configuring the scaling and limits for analog input 53 (terminal 53).
6-10 Terminal 53 Low Voltage
Default value: 0.07 V Parameter type: Range (0.00–10.00 V)
Setup: All setups Conversion index: -2
Data type: Uint16 Change during operation: True
Enter the voltage (V) that corresponds to parameter 6-14 Terminal 53 Low Ref./Feedb. Value. To activate parameter 6-01 Live Zero
Timeout Function, set the value to >1 V.
6-11 Terminal 53 High Voltage
Default value: 10.00 V Parameter type: Range (0.00–10.00 V)
Setup: All setups Conversion index: -2
Data type: Uint16 Change during operation: True
Enter the voltage (V) that corresponds to the high reference value (set in parameter 6-15 Terminal 53 High Ref./Feedb. Value).
6-12 Terminal 53 Low Current
Default value: 4.0 mA Parameter type: Range (0.00–20.00 mA)
Setup: All setups Conversion index: -2
Data type: Uint16 Change during operation: True
Enter the low current value. This reference signal corresponds to the low reference feedback value that is set in parameter 6-14 Terminal
53 Low Ref./Feedb. Value. To activate parameter 6-01 Live Zero Timeout Function, set the value to >2 mA.
Danfoss A/S © 2024.01 AU275649936274en-001401 / 130R0507 | 145
