Programming Guide | VLT® AutomationDrive FC 360
Setup: All setups Conversion index: -2
Data type: Uint16 Change during operation: True
Scale for maximum output (20 mA) of the scaling at terminal 42. Set the value to be the percentage of the full range of the variable
selected in parameter 6-91 Terminal 42 Analog Output.
(mA)
0%
20
0/4
100%
Current
Analog
output
Min Scale
par. 6-93
Variable
for
output
example:
Power
Analog
Output
Max Scale
par. 6-94
e30bb772.10

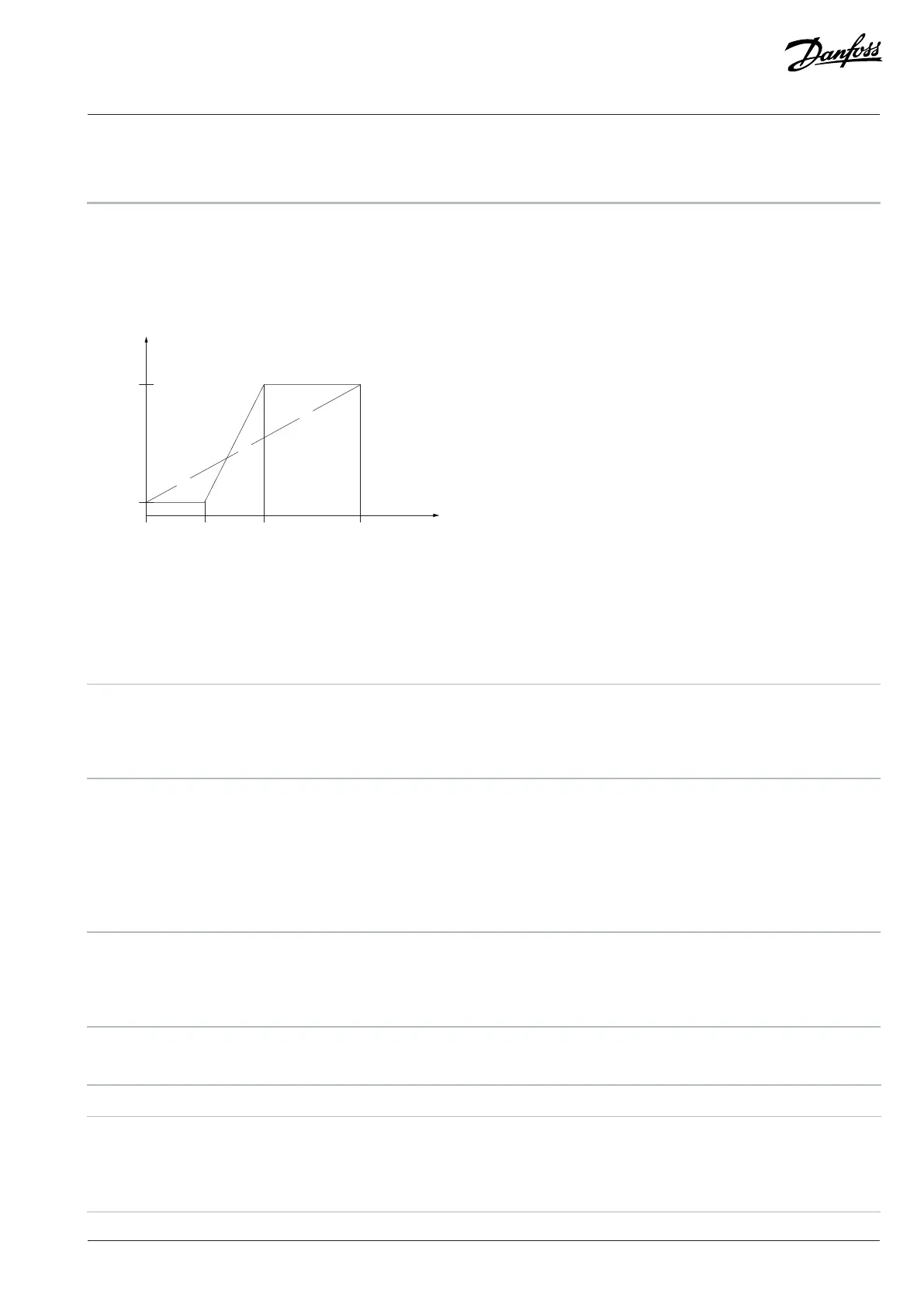

Figure 35: Output Scale versus Current
6-96 Terminal 42 Output Bus Control
Default value: 0 Parameter type: Range (0–16384)
Setup: All setups Conversion index: 0
Data type: Uint16 Change during operation: True
Hold the analog output at terminal 42 if controlled by bus.
4.8 Parameter Group 7-** Controllers
4.8.1 7-0* Speed PID Ctrl.
7-00 Speed PID Feedback Source
Default value: [20] None Parameter type: Option
Setup: All setups Conversion index: –
Data type: Uint8 Change during operation: False
Select feedback source for Speed CL Control.
Option Name
[1] 24 V encoder
[2] MCB 102
[3] MCB 103
Danfoss A/S © 2024.01 AU275649936274en-001401 / 130R0507 | 157
