Danfoss VLT AutomationDrive FC 360 Programming Guide

Programming Guide | VLT® AutomationDrive FC 360
e30bd375.11
Time
P 3-80
Hz
P 4-14 Hz
High limit
Jog speed
P 3-19
P 3-80
Ramp up
(acc)
Ramp down
(dec)
t
jog t jog
P 4-12 Hz
Low limit
P 1-23
Motor frequency

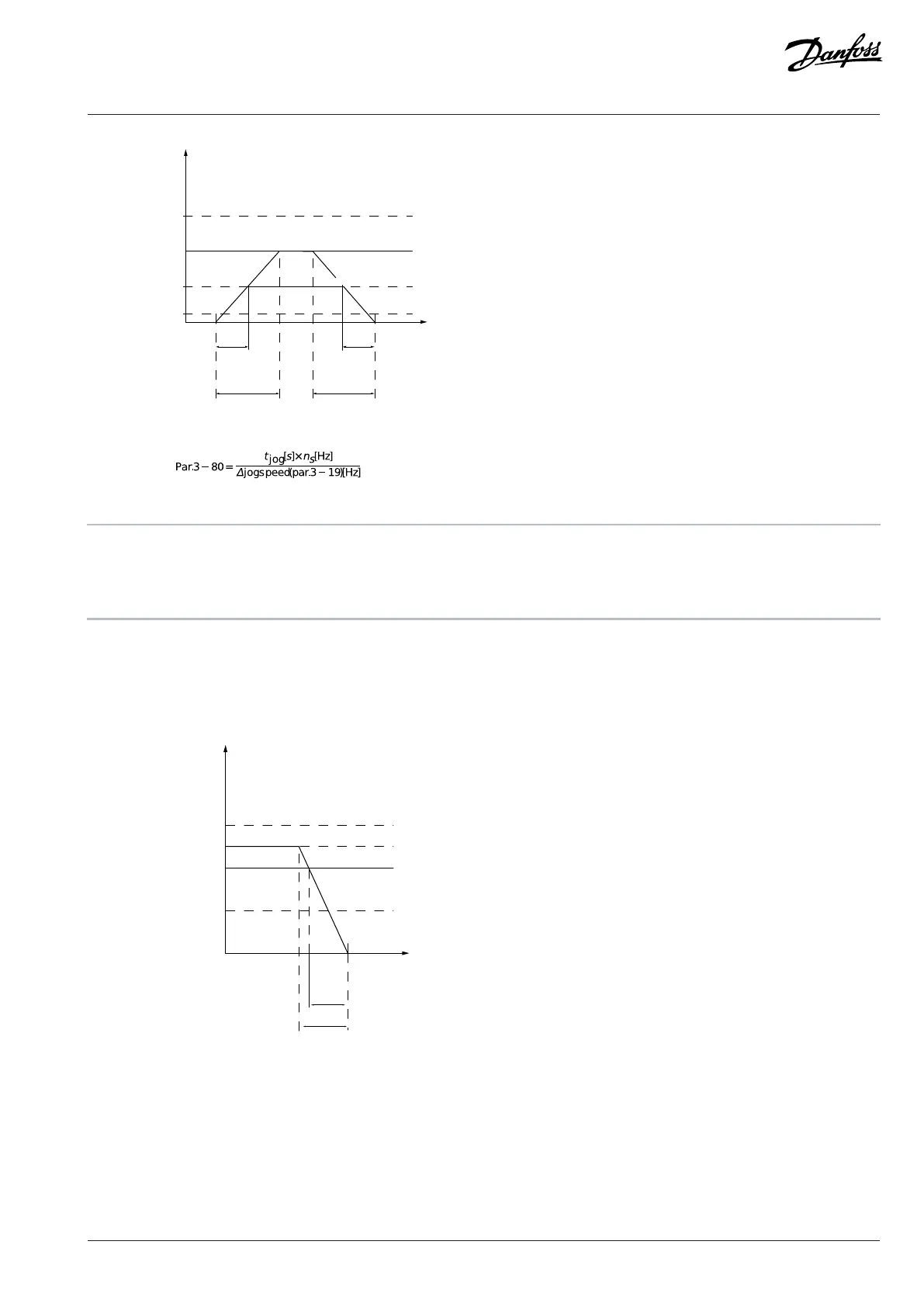

Figure 25: Jog Ramp Time
3-81 Quick Stop Ramp Time
Default value: Size related Parameter type: Range (0.01–3600.00 s)
Setup: 1 setup Conversion index: -2
Data type: Uint32 Change during operation: True
Enter the quick-stop ramp-down time, which is the deceleration time from the synchronous motor speed to 0 Hz. Ensure that no
resulting overvoltage occurs in the inverter due to regenerative operation of the motor required to achieve the given ramp-down
time. Ensure also that the generated current required to achieve the given ramp-down time does not exceed the current limit (set in
parameter 4-18 Current Limit). Activate quick stop with a signal on a selected digital input, or via the serial communication port.
e30bd376.11
Time
Hz
P 4-14 Hz
high limit
Reference
P 1-23
Motor frequency
low limit
P 4-12 Hz
P 3-81
Qramp
Qstop
Figure 26: Quick Stop Ramp Time
4.4.8 3-9* Digital Pot.Meter
The Digital Potentiometer enables increase or decrease of the actual reference by adjusting the setup of the digital inputs using the
functions Increase, Decrease, or Clear. To activate the function, at least 1 digital input must be set to Increase or Decrease.
Danfoss A/S © 2024.01 AU275649936274en-001401 / 130R0507 | 97
