5•Service
Doc. 065051-03 1/08 147
5. Insert the injection valve waste line into the small round opening at the right
front corner of the drip tray (see Figure 5-17
).
6. Route the needle seal line out the autosampler right side slot.
To connect the waste line when the AS is connected to two injection valves:
1. Insert the waste line from the first injection valve into the small round
opening at the right front corner of the drip tray.
2. Insert the waste line from the second injection valve into the larger drain line
opening (see Figure 5-18
).

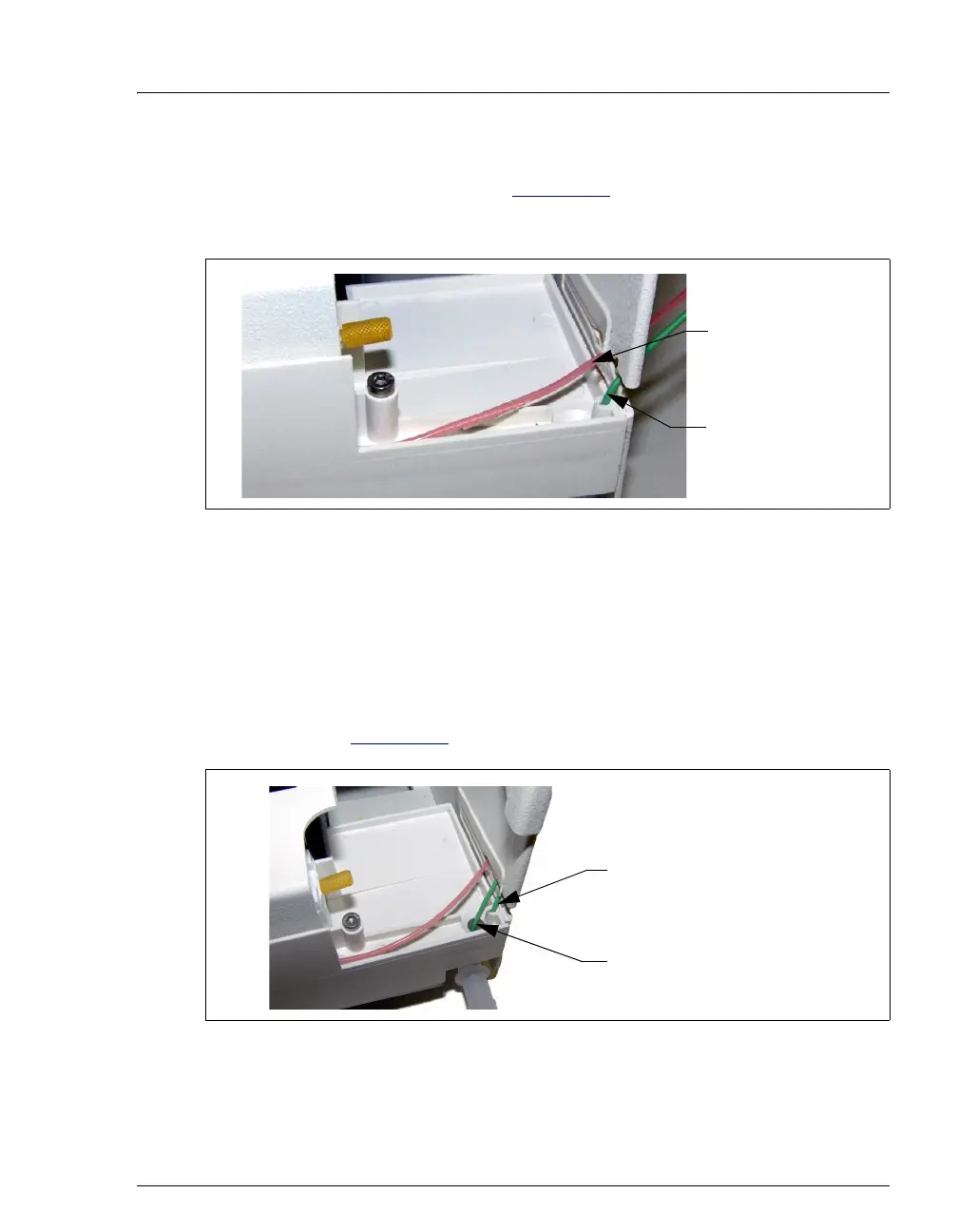

Figure 5-17. Routing the Injection Valve Waste Line to the Drip Tray:
Valve Installed in Another Module
Figure 5-18. Injection Valve Waste Line Connections for Dual Valves
Insert the waste
line from the
system’s injection
valve here
Route the needle
seal line to the
injection valve in
the system
Insert the waste
line from the first
injection valve
here
Insert the waste
line from the
second injection
valve here
