3.4 Specifying Sample Positions
When creating a schedule or sequence of injections, use the following guidelines
to specify sample positions in the vial or well plate sample tray.
3.4.1 Vial Tray Sample Positions
For the 49-position vial tray, vial
position 1 is in the lower-left
corner of the tray and vial position
49 is in the upper-right corner (see
Figure 3-7
).

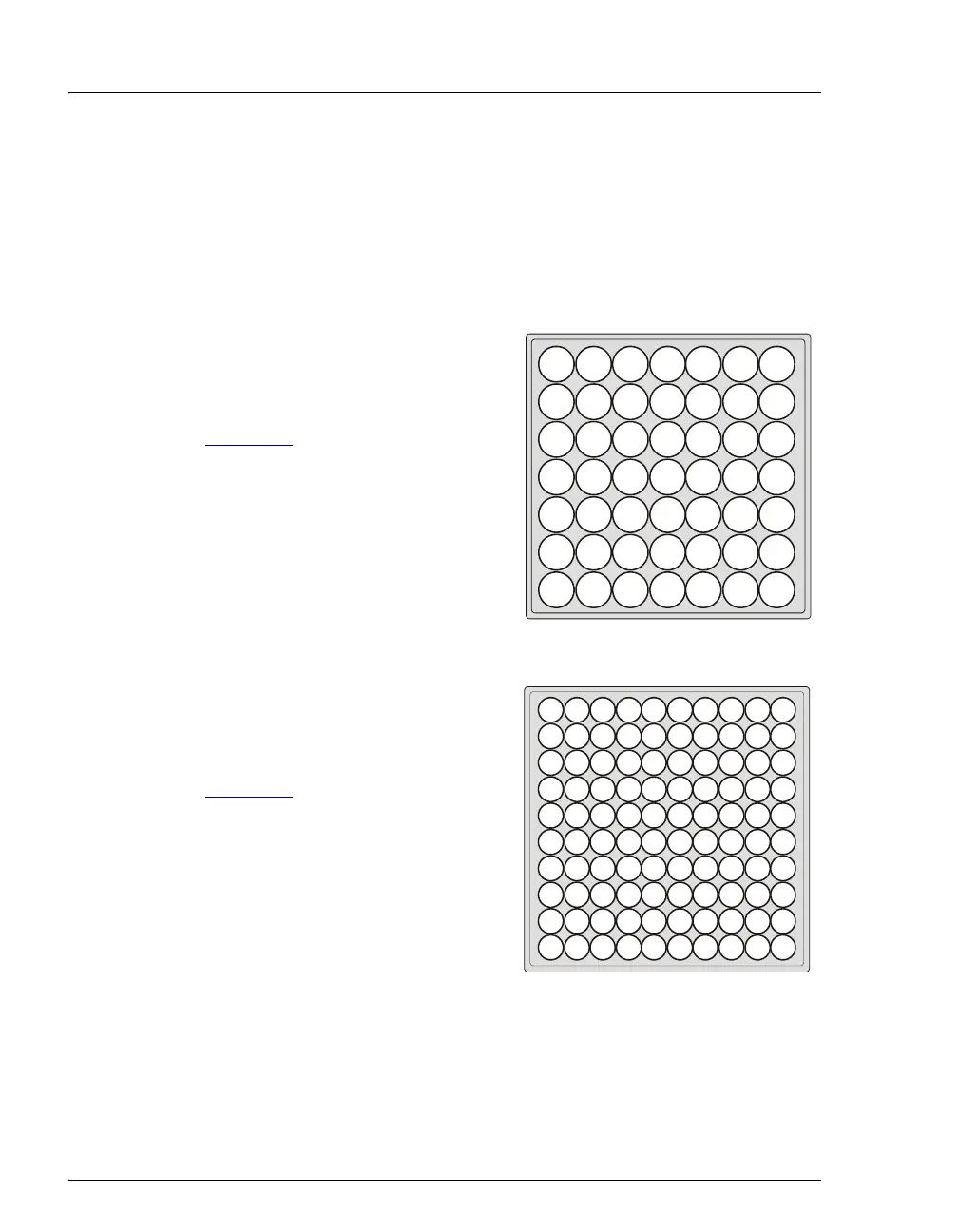

Figure 3-7. 49-Position Vial Tray
For the 100-position vial tray, vial
position 1 is in the lower-left
corner of the tray and vial position
100 is in the upper-right corner (see
Figure 3-8
).
Figure 3-8. 100-Position Vial Tray
