B • Installation
Doc. 065051-03 1/08 191
B.3.4 Connecting a Single Injection Valve
NOTE If your AS is equipped with the simultaneous injection
option, see Section B.3.5
for connection instructions.
NOTE If your AS is equipped with a diverter valve for
sequential injections, see Section B.3.6
for connection
instructions.
1. Open the AS and chromatography system module doors.
2. The needle seal line that extends from the inject port in the
autosampler is coiled inside the AS door, on the right side. Route this
line through the side slot on the AS (see Figure B-23
) and then
through the side slot on the chromatography system module to the
injection valve.
Do not cut the needle seal line to shorten it, and do not replace it with
a different line. The needle seal line is specially constructed and the
autosampler will not function correctly if this line is cut.

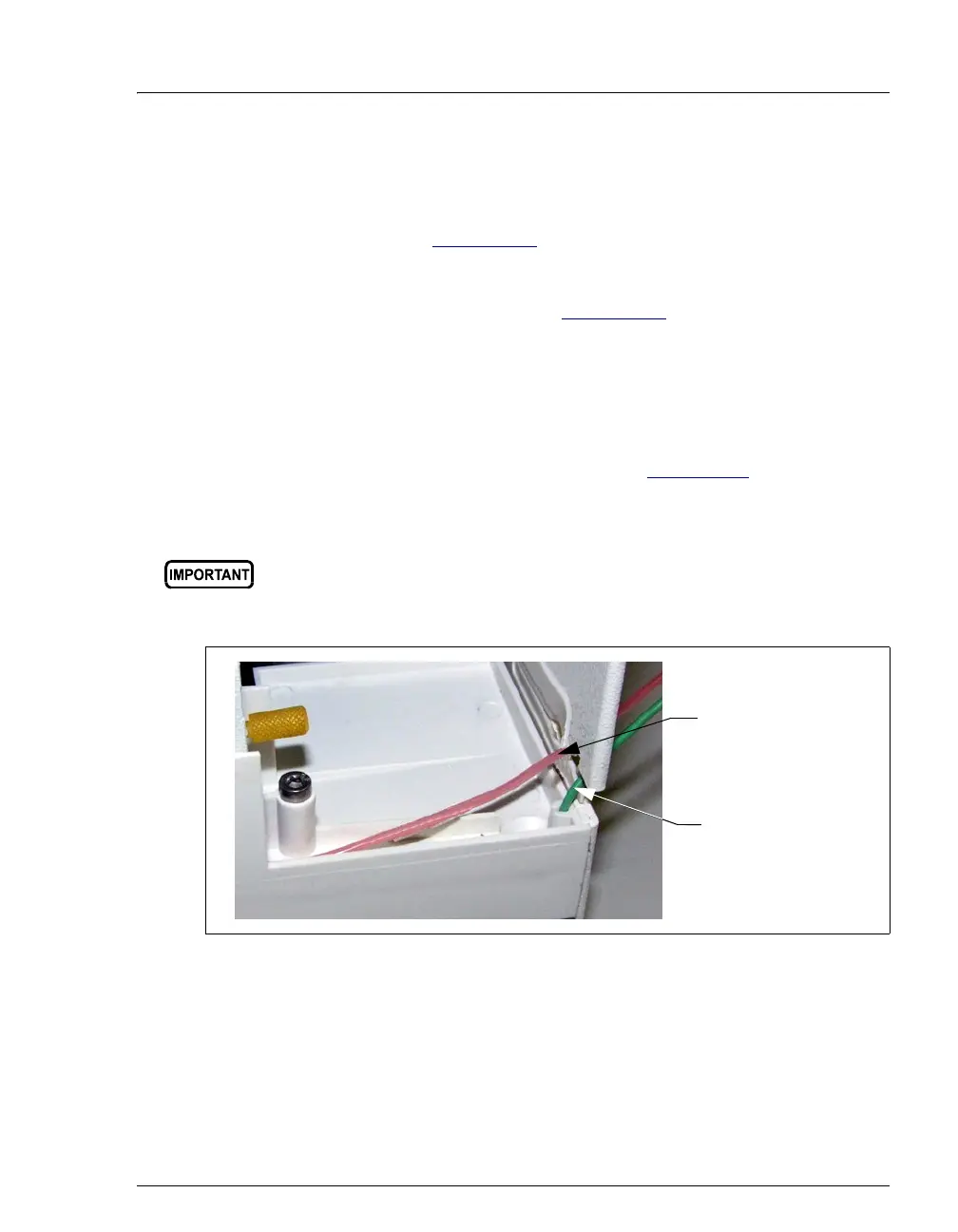

Figure B-23. AS Drip Tray
Insert the waste
line from the
injection valve here
Route the AS
needle seal line to
the injection valve
