AS Autosampler Operator’s Manual
42 Doc. 065051-03 1/08
Priming
The AS performs the following operations during priming:
• The sampling needle arm moves to the waste port and expels any
fluid from the needle.
• The sampling needle arm moves to the flush port and delivers a
volume of flush fluid. This primes the lines from the flush reservoir to
the syringe and through the sampling needle assembly (see
Figure 2-22
).
When the sample preparation option is installed, additional priming is
required to prime the lines from the reagent reservoir(s) to the sample
syringe (see Figure 2-24
). See Section B.3.13 for instructions on priming
the liquid lines.
2.7.9 Sample and Prep Syringe Fluid Schematics
Figure 2-22 shows the fluid connections to the sample syringe and flush
reservoir when no sample prep option is installed.

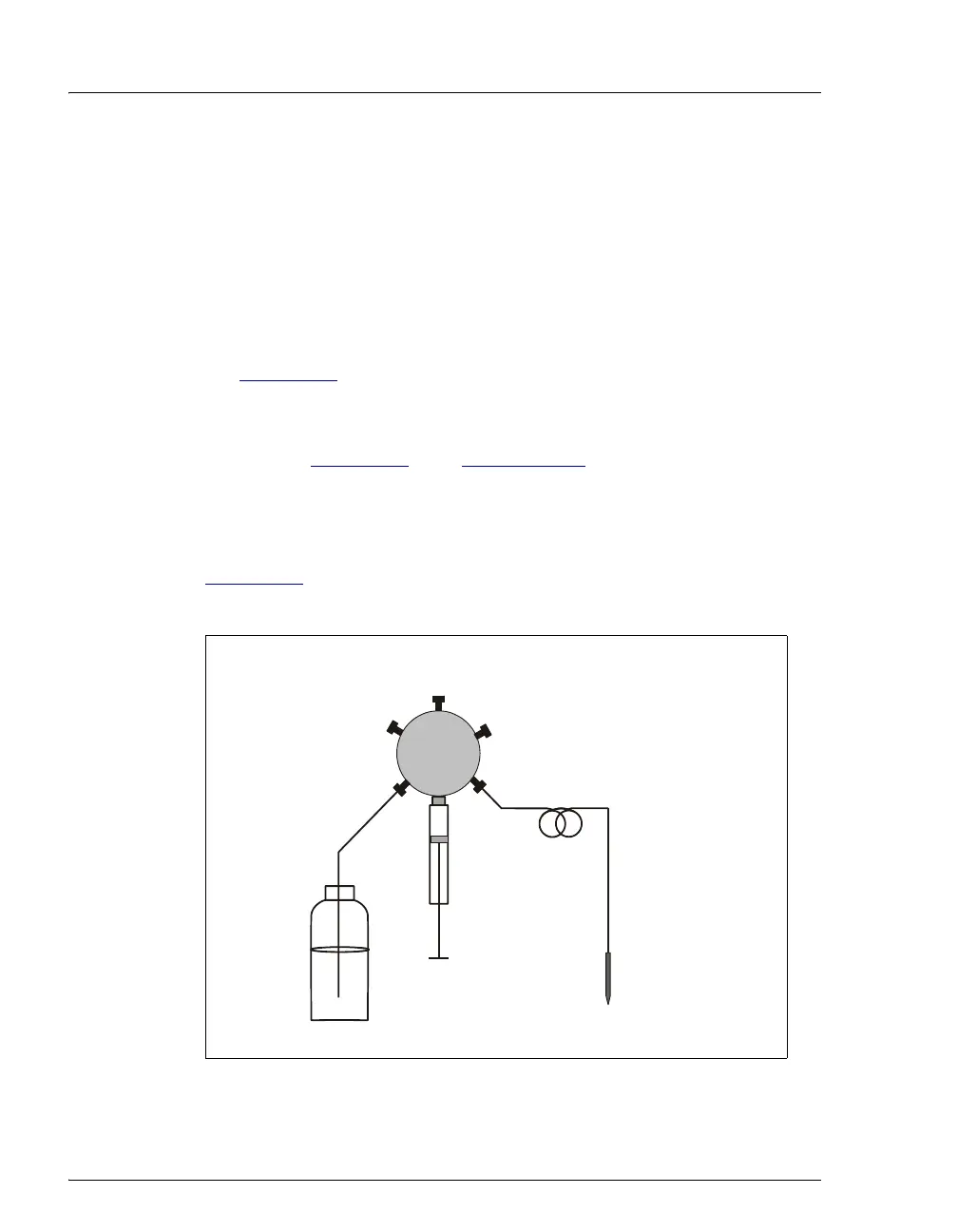

Figure 2-22. Fluid Schematic for Sample Syringe
Sample Syringe
Valve
Flush Reservoir
Sample
Syringe
Sampling
N
eed
l
e
A
B
C
D
E
F
Sampling
Needle
A
ssembly
