2.3.4 Flush, Waste, and Inject Ports
The flush port flushes the outside of the sampling needle with fluid from
the flush reservoir. Excess fluid flows to the waste port. The waste port
accepts waste fluid from the sampling needle and the flush port, and
directs it out the drain line. The inject port (see Figure 2-7
) accepts the
sample from the sampling needle and delivers it to the injection valve.
2.3.5 Sample Vials and Well Plates
Vial Trays and Vials
The following vial trays are available. See the following section for well
plate information.
The following vials are available:

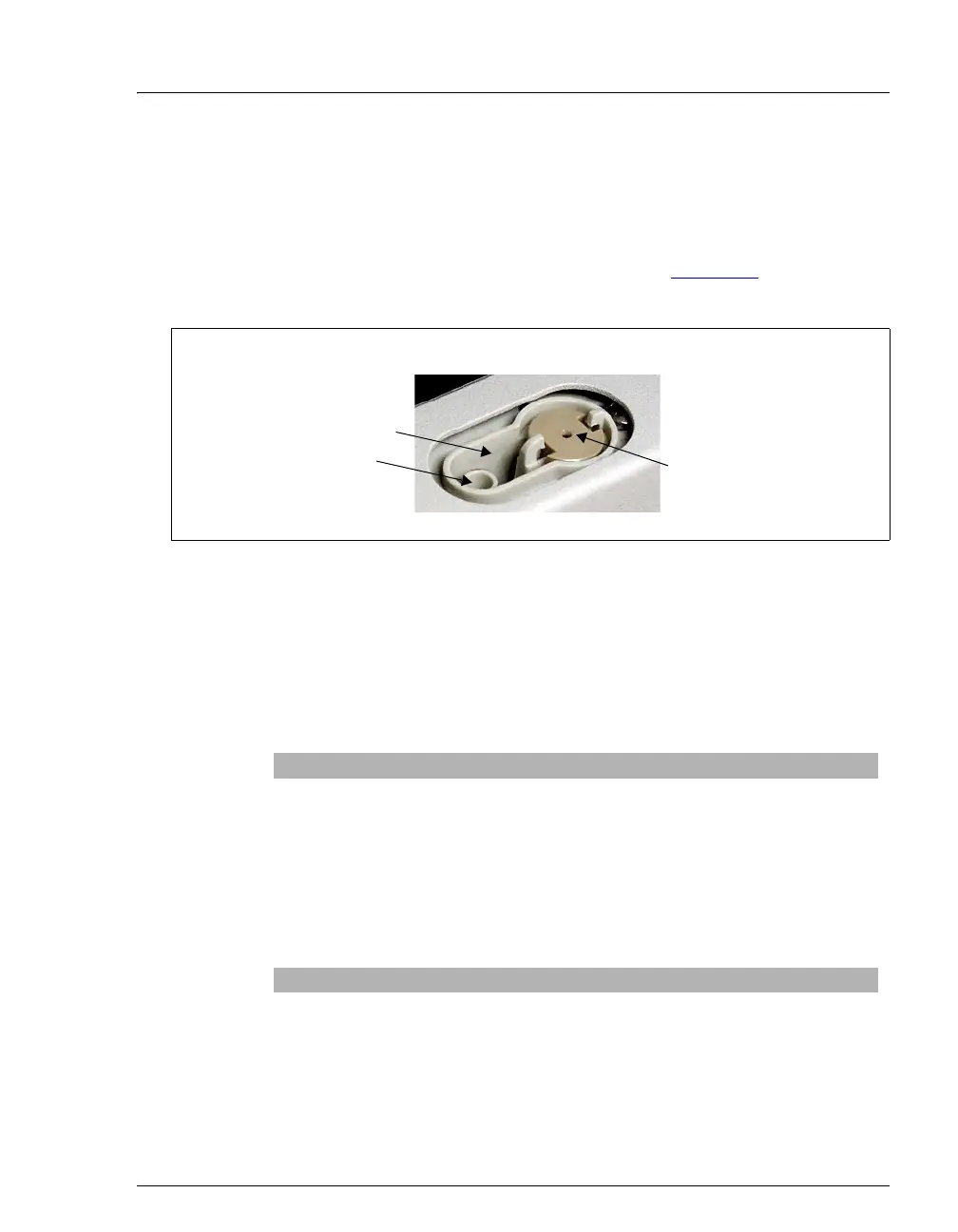

Figure 2-7. Flush, Waste, and Inject Ports
Tray Material Vial Size Held Tray Capacity Part Number
Plastic 10 mL 49 062374
Aluminum 0.3 mL, 1.5 mL 100 062481
Insulated Aluminum
a
a. Required for the sample temperature control option. Includes tray
covers for empty tray rows.
0.3 mL, 1.5 mL 100 062377
Vial Size and Material Quantity Part Number
0.3 mL polymer Package of 100 055428
1.5 mL glass Package of 100 055427
10 mL PolyVial™ Package of 100 055058
1.5 mL plastic Package of 100 061696
Waste Port
Flush Port
Inject Port
