B.3.6 Connecting a Diverter Valve (for Sequential Injections)
When the AS is configured for sequential injections, a high-pressure
diverter valve must be installed in the second valve position inside the
AS. A Diverter Valve Kit (P/N 063294) with the parts needed to install
the valve is available. In addition to the kit, you will need a 5.5 mm nut
driver to complete the installation.
Installing the Diverter Valve
1. Connect the cable from the diverter valve (see Figure B-31) to the
matching cable that extends from the lower-right corner inside the
autosampler compartment (see Figure B-32
). The cables are keyed to
fit only one way.

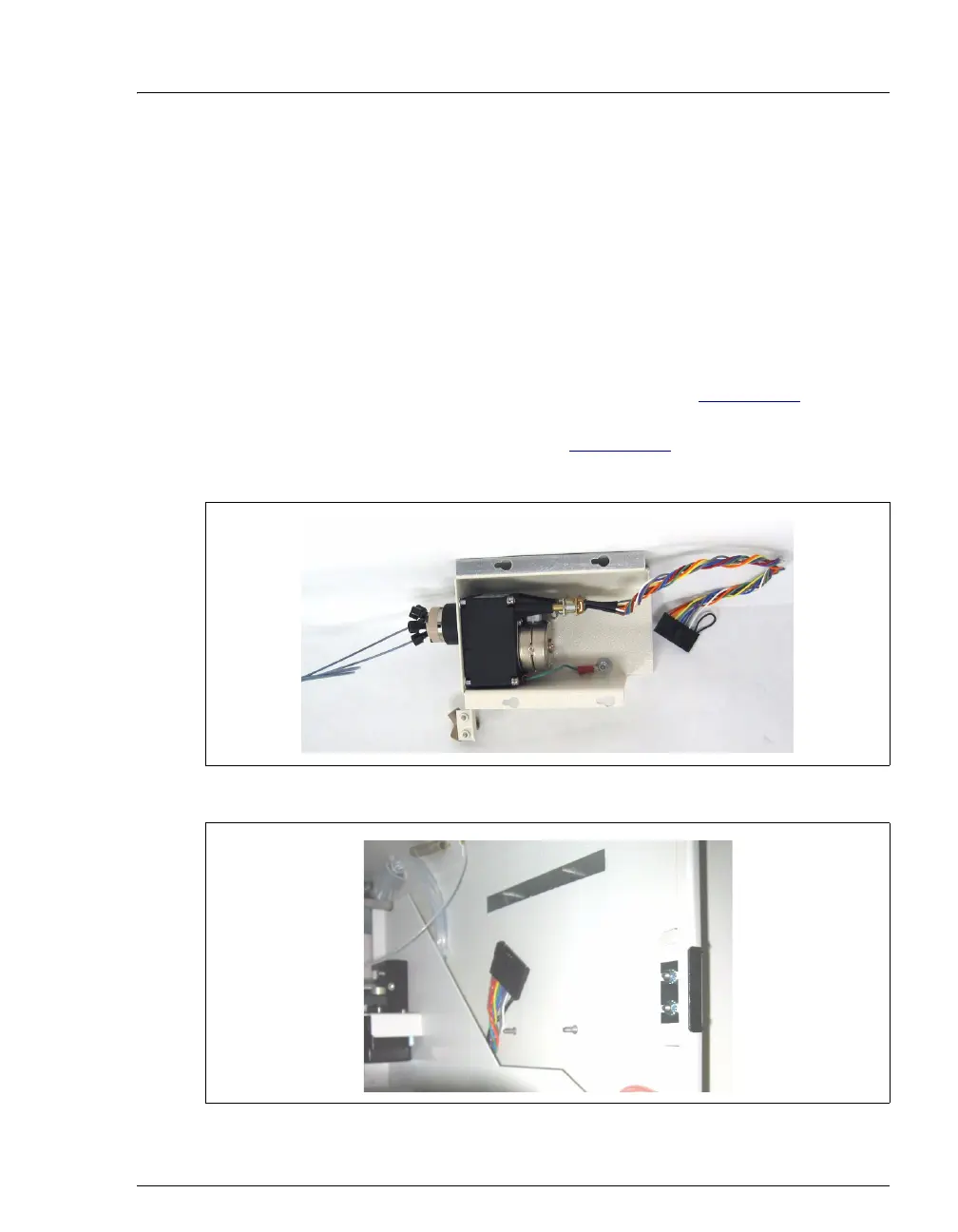

Figure B-31. Diverter Valve Assembly
Figure B-32. Diverter Valve Cable and Mounting Studs
Diverter
Valve Cable
Diverter Valve
Valve Cover
Valve Cable
Mounting Studs
Mounting Studs
