AS Autosampler Operator’s Manual
198 Doc. 065051-03 1/08
2. Dress the cable toward the rear of the AS.
3. Align the keyhole openings on the valve assembly with the four studs
mounted on the right side of the autosampler compartment (see
Figure B-32
) and push the assembly onto the studs (see Figure B-33).
4. Make sure the cable is not pinched and then slide the assembly back
to secure it on the narrow end of the keyholes.
5. Using a 5.5 mm nut driver, attach the four nuts with washers to the
mounting studs.

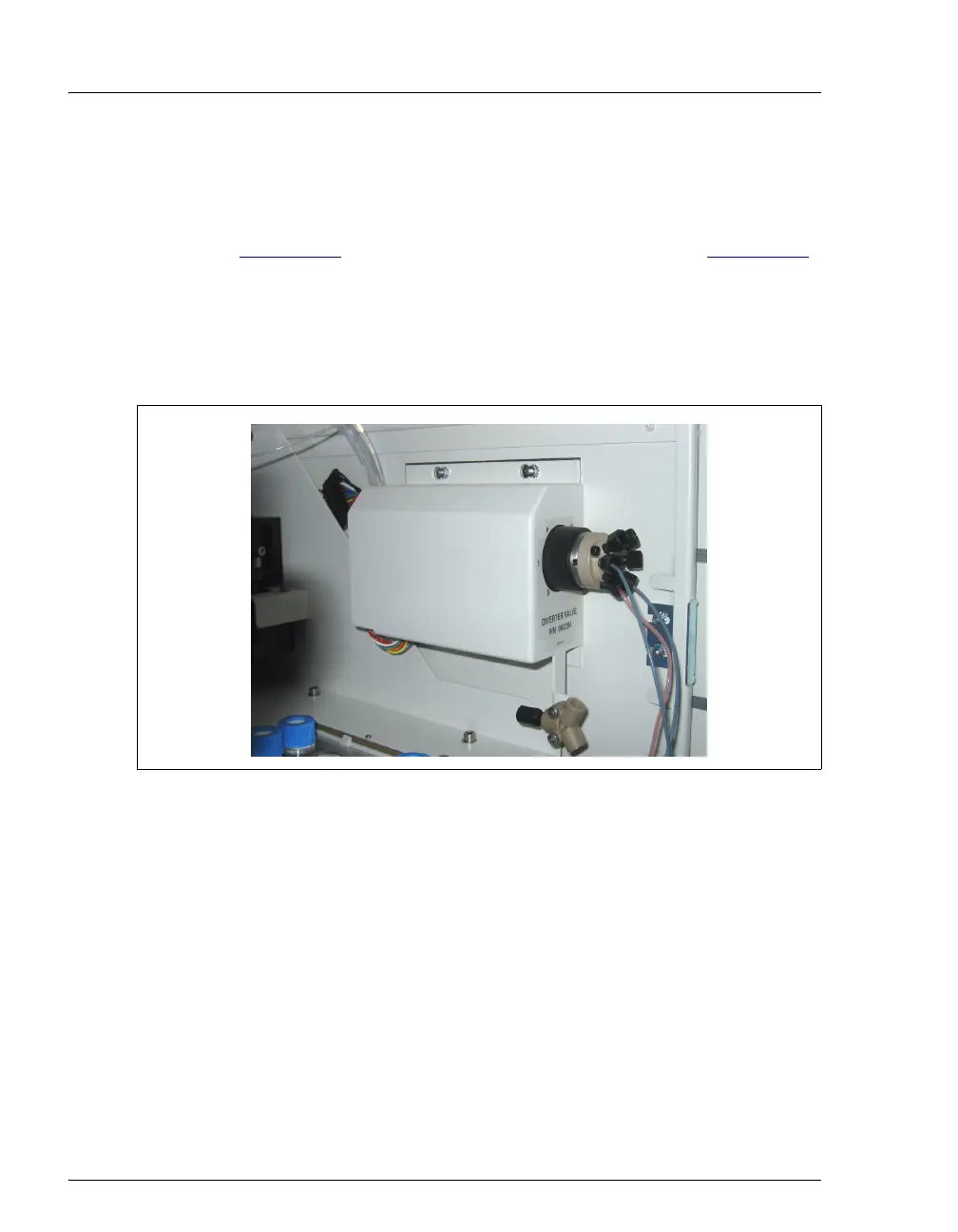

Figure B-33. Diverter Valve Assembly Installed
