B • Installation
Doc. 065051-03 1/08 199
Connecting the Plumbing
1. Connect the pink needle seal tubing from the AS inject port to port S
on the diverter valve (see Figure B-34
).
2. Connect the blue sample out line from port 1 on the diverter valve to
port S on the injection valve of system #1 (see Figure B-35
).

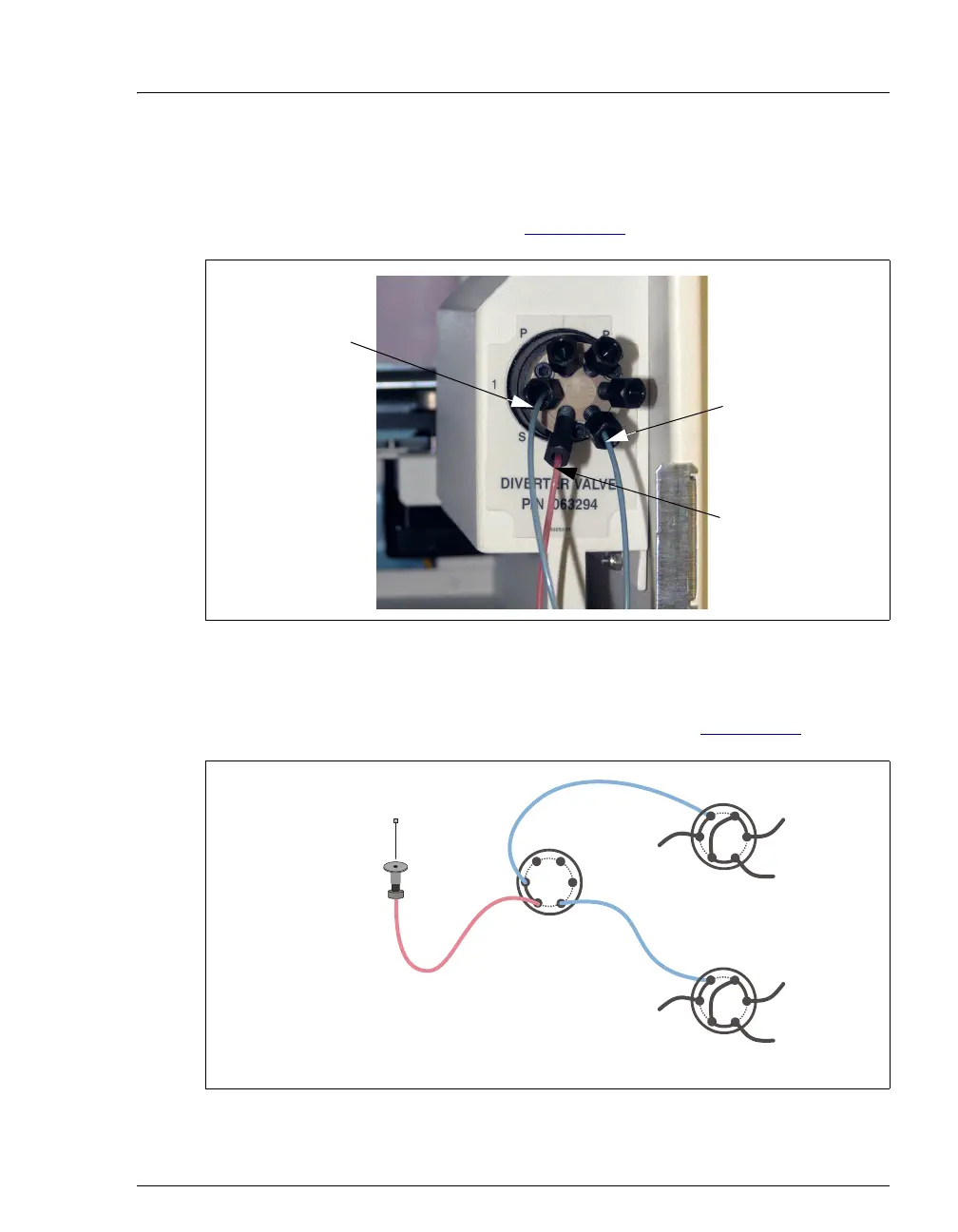

Figure B-34. Diverter Valve Plumbing Connections
Figure B-35. Diverter Valve Plumbing Connections to Injection Valves
Needle Seal Line
(Connected to Port S)
Sample Out Line
to System #1
Sample Out Line to
System #2
1
S
2
PP
P
Needle Seal Line
Diverter Valve
Inject Port
Diverter Line
W
L
P
C
L
S
Inject Valve #1
Inject Valve #2
W
L
P
C
L
S
Diverter Line
Needle
