AS Autosampler Operator’s Manual
188 Doc. 065051-03 1/08
6. If the sample temperature control option is installed, locate the drain
line (P/N 055075) in the AS Ship Kit (P/N 062381) and push the line
onto the fitting on the lower right front corner of the sampler
temperature control unit.
7. Place the end of the drain line that extends from the lower right front
corner of the autosampler compartment (see Figure B-20
) or sample
temperature control option into a waste container.

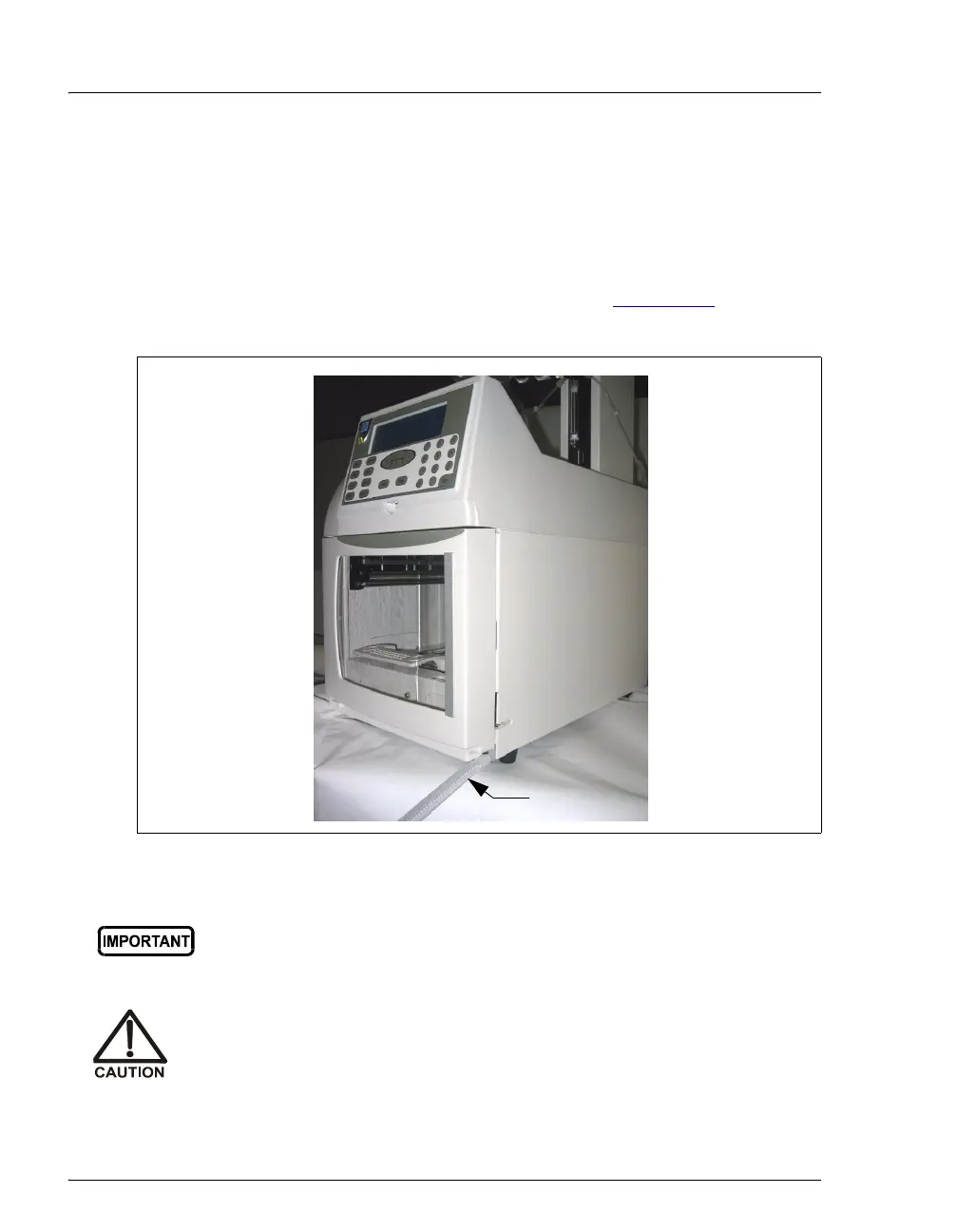

Figure B-20. Autosampler Compartment Drain Line
For correct drainage, make sure the tubing is not bent, pinched, or
elevated at any point. Do not allow the end of the waste line to be
submerged in waste liquid.
Neutralize acidic and caustic wastes before disposal. Dispose of all
wastes in accordance with local regulations.
Drain Line
