Removal–refitting of the engine assembly
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_1.64.1.html[11/12/2015 18:40:43]
Remove the tank covers 5 - 2, Removal of the fuel tank
fairings
Remove the fuel tank 8 - 2,
Removal of the fuel tank
Remove the battery 6 - 2,
Removal of the battery
Remove the battery support 6 - 2,
Battery support
Disconnect ECU connector from
main wiring harness
6 - 12,
Removal of the electronic
control unit
Connect the starter motor/solenoid
cable
6 - 3,
Removal of the starter motor
Disconnect the HT leads 6 - 12,
Spark plug
Remove the ABS control unit 7 - 6,
Removing of the ABS control
unit
Remove the airbox 8 - 7,
Removal of the airbox
Disconnect the throttle cable 7 - 8.1,
Removal of the throttle
twistgrip
Remove the throttle body 8 - 6,
Removal of the throttle body
Remove the oil cooler from the
frame
9 - 2.2,
Removal of the oil cooler
Remove the gearchange control 9 - 7.2,
Removal of the gearbox
assembly
Remove the rear brake fluid
reservoir
7 - 4,
Removal of the rear brake
lever
Remove the footrests 7 - 15,
Removal of the footrest
brackets
Remove the clutch transmission
unit
7 - 8.2,
Removal of the clutch
master cylinder assembly
Remove the front sprocket 7 - 14,
Removing of the front
sprocket
Remove the side stand 7 - 16,
Removing of the side stand
Remove the vertical head exhaust
pipe and the horizontal head
exhaust pipe
8 - 8,
Removal of the exhaust
system
Disconnect wiring connectors on the
engine block
6 - 1,
Routing of wiring on frame
Place a stand under the engine.

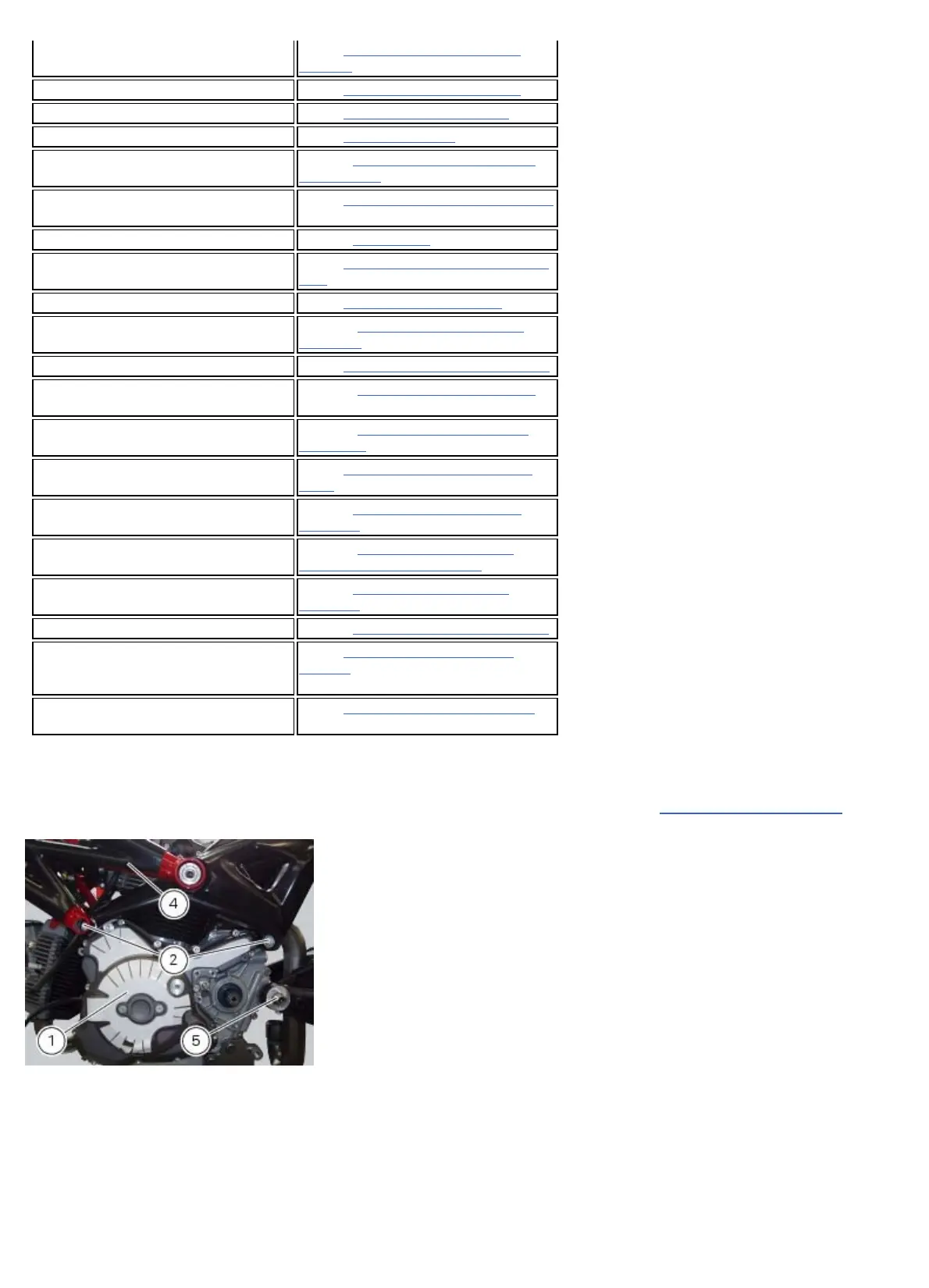

Unscrew and remove the nuts (3) on the right-hand side of the frame in correspondence with front and rear mounting
bolts (2) securing the engine (1).
Slide out swingarm pivot (5) to remove the swinging arm from engine (1) (Sect. 7 - 13,
Removal of the swingarm).
Withdraw the complete engine block (1) from the frame (4).
