Crankcase assembly: crankshaft/connecting rods assembly
file:///D|/Manuales/Para%20recolocar/MOTOS/DUCATI/DUCATI/M796/wsm/EN/M796_ABS_11_9_9C.80.1.html[11/12/2015 18:40:54]

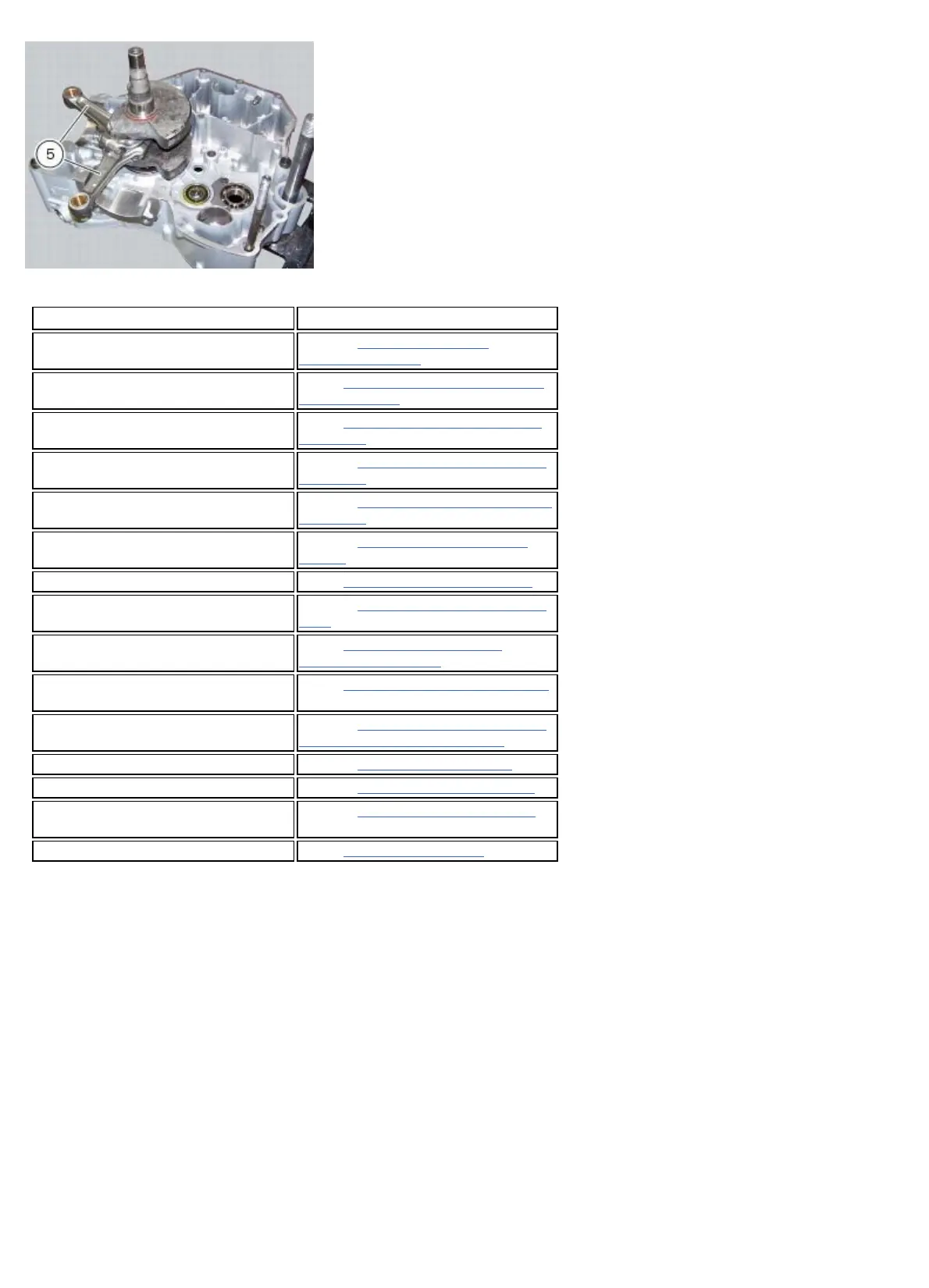

Operations Section reference
Reassemble the engine crankcase
halves
9 - 9.2, Reassembly of the
crankcase halves
Refit the mesh filter 4 - 3,
Changing the engine oil and
filter cartridge
Refit the cylinder barrel/piston
assemblies
9 - 5,
Refitting the cylinder/piston
assembly
Refit the complete cylinder head
unit
9 - 4.4,
Refitting the cylinder head
assembly
Refit the timing belts 9 - 4.2,
Refitting the timing system
assembly
Refit the timing covers 9 - 4.2,
Refitting the timing belt
covers
Refit the starter motor 6 - 3,
Refitting the starter motor
Refit the starter motor idler gear 9 - 9.1,
Refitting the starter motor
gear
Refit the flywheel/alternator
assembly
9 - 8,
Refitting the flywheel-
alternator assembly
Refit the alternator-side crankcase
cover
9 - 8,
Refitting the generator cover
Refit the primary gear 9 - 6.3,
Refitting the primary drive
gears and checking backlash
Refit the oil pump 9 - 2.1,
Refitting the oil pump
Refit the clutch assembly 9 - 6.1,
Refitting the APTC clutch
Refit the clutch-side crankcase
cover
9 - 6.2,
Refitting the clutch cover
Refit the engine to the frame 9 - 1,
Refitting the engine
