FICEP 32292 - Origins and sign conventions of the axes

Programming and operating manual Model 1001 DFB
14 FICEP S.p.A.
Name
Description
Function
ADM
Marking unit disc rotation axis (optional)
Marking
operations
APD
Counteracting axis of marking unit (optional)
AXU
Scribing axis for the lower side of the web (optional)

AXR
Saw mitering axis
Cutting
operations

AXS
Saw band feedrate axis
 All axes tagged with a star are shown in the following pictures

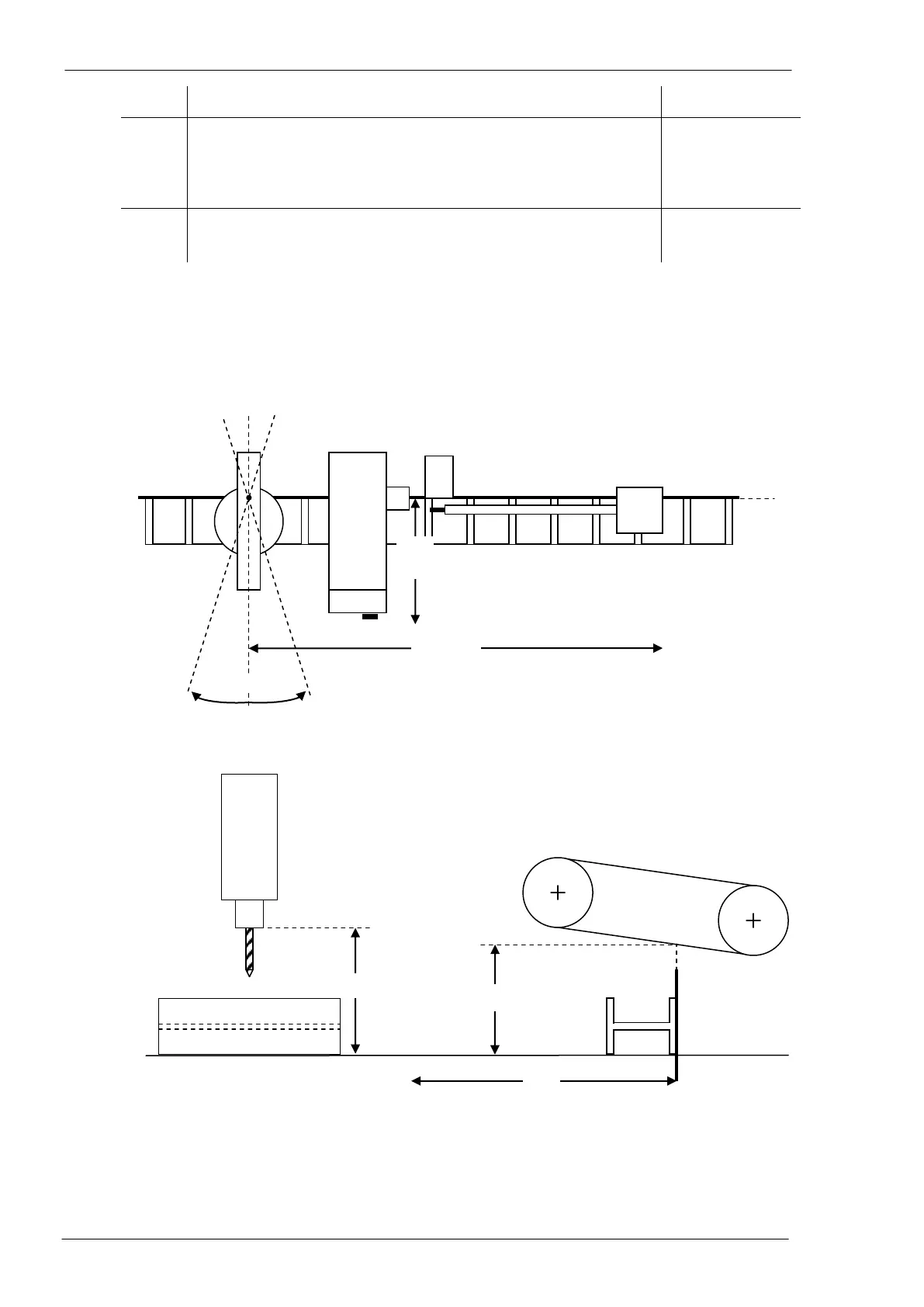

Origins and sign conventions of the axes
NOTE The above pictures refer to a 1001 DFB machine with right datum line (represented by the thick
line); the system can be assembled with left datum line (in accordance with the selected layout).
AXX
0
-
+
AXY
AMM
-
+
AXR
+
-
AXY = 0
AMM = 0
AXZ = 0
+
-
AXZ
AXS = 0
+
-
AXS
AXY
AMM
AXY = 0
AMM = 0
-
+
