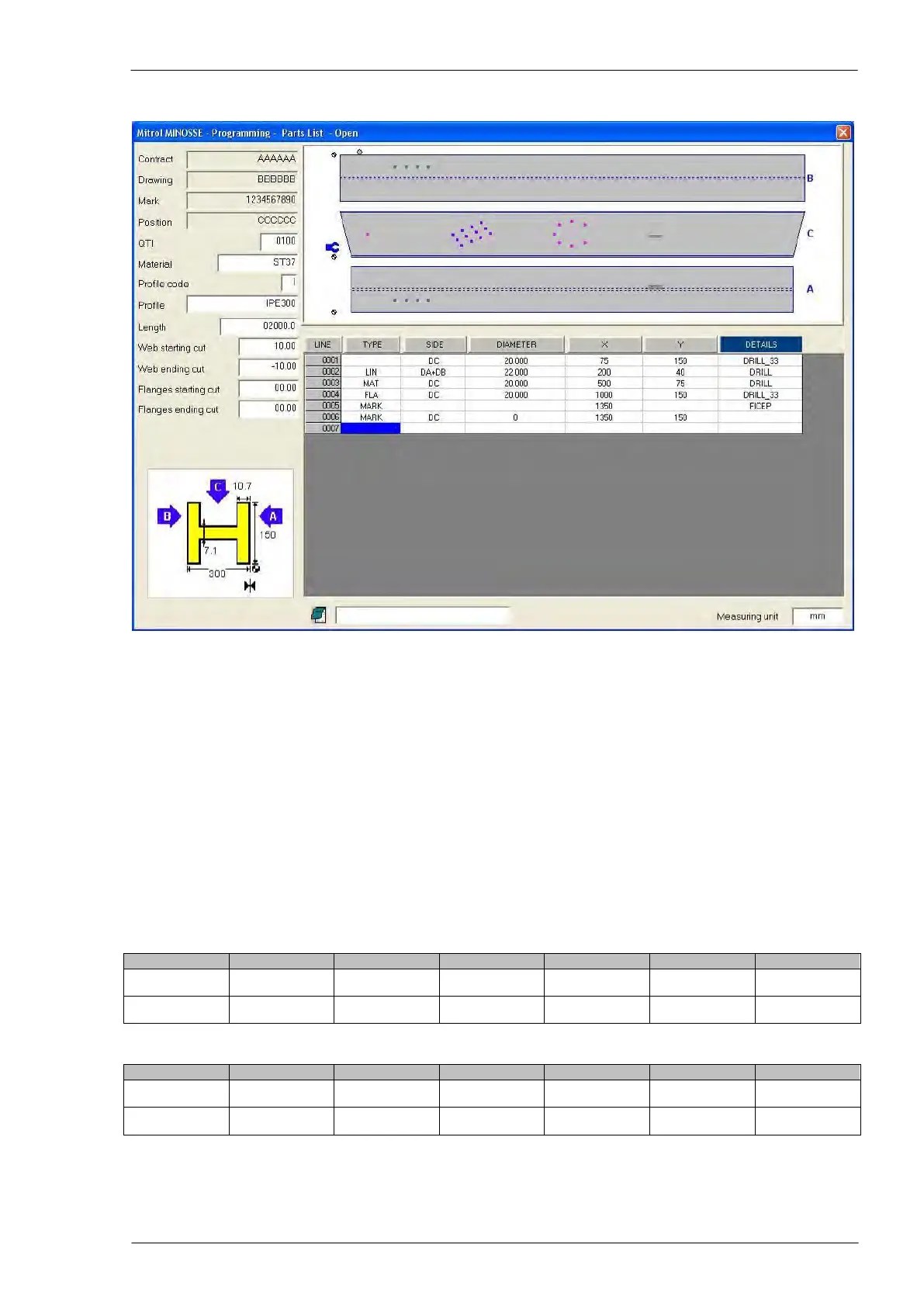

The final program summarizing all previous examples is displayed as follow:
Programming: special functions
According to the drawing dimensioning of the piece, it is possible to use several rules.
Use of the absolute and incremental coordinates
It is possible to use the absolute coordinates, as per all previous examples, or the incremental coordinates
as per the following one where the operation is programmed in the two different ways:
Program with absolute coordinates
LINE
TYPE
SIDE
DIAMETER
X
Y
DETAILS
001
DC
22.000
500
150
DRILL
002
DC
22.000
600
150
DRILL
Program with absolute and incremental coordinates
LINE
TYPE
SIDE
DIAMETER
X
Y
DETAILS
001
DC
22.000
500
150
DRILL
002
DC
22.000
100+
0+
DRILL
