Model 1001 DFB Programming and operating manual
FICEP S.p.A. 61
Programming: pattern of holes with same diameter arranged on an arc of circle or a whole circle
Meaning of the fields and possible choices
FIELD
CONTENT
MEANING
TYPE
FLA
Pattern of holes with same diameter arranged on an arc of circle (flange
pattern)
SIDE
See single hole
DETAILS
See single hole

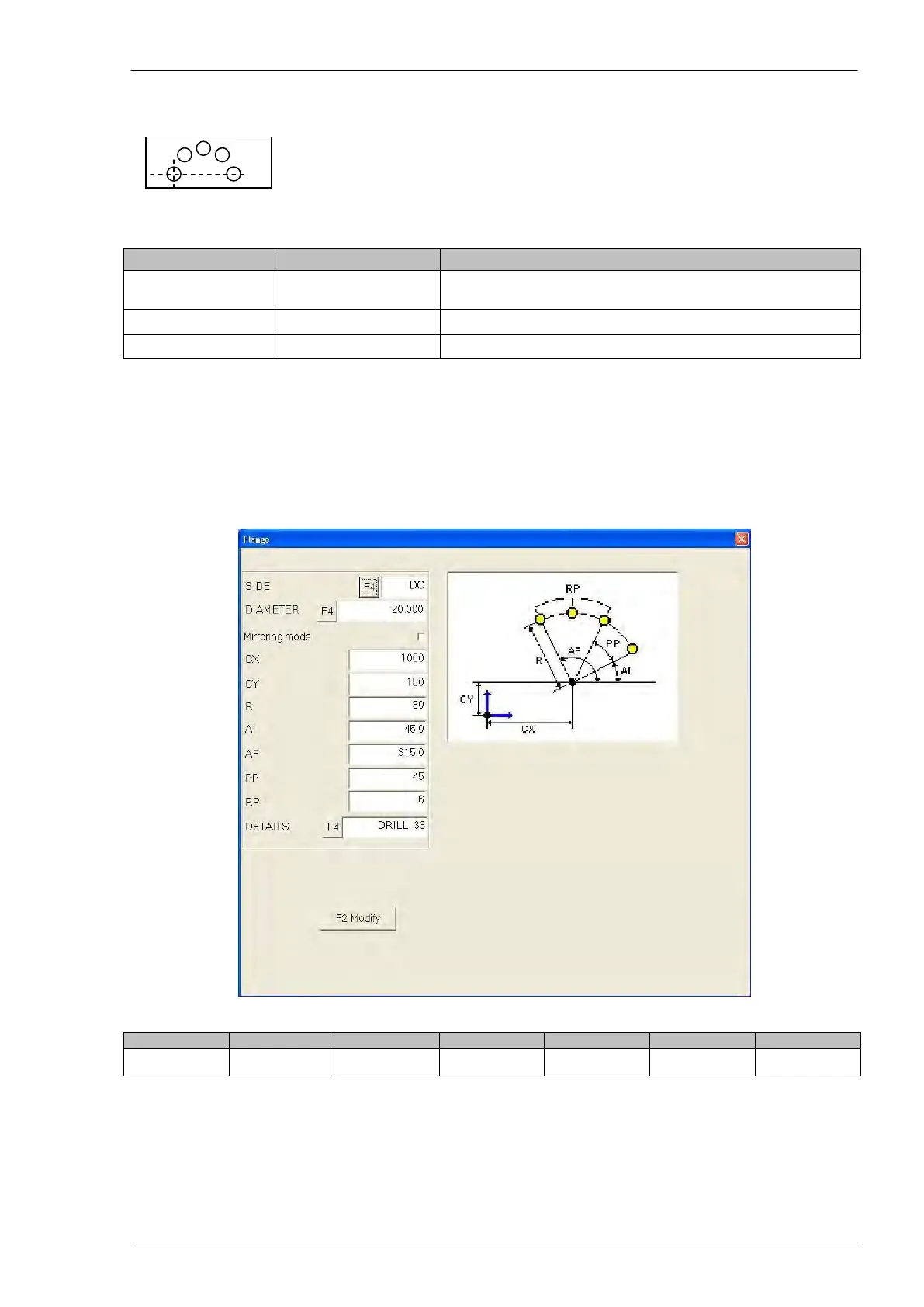

Selecting “FLA” in the “TYPE” field, a window is displayed to insert the parameters of the holes pattern
configuration and of the other field of the programming line.
Example: seven holes with diameter 20 mm executed on the web using an high-speed drilling tool and
arranged on an arc of circle of 270°, spaced 45° and with radius 80 mm; the first hole must be at 45° as to
the X-axis.
LINE
TYPE
SIDE
DIAMETER
X
Y
DETAILS
004
MAT
DC
20.000
1000
150
DRILL 33
NOTE The values of X and Y coordinates are only as instances.
