FICEP 32292 - Programming Specific Operations

Programming and operating manual Model 1001 DFB
58 FICEP S.p.A.

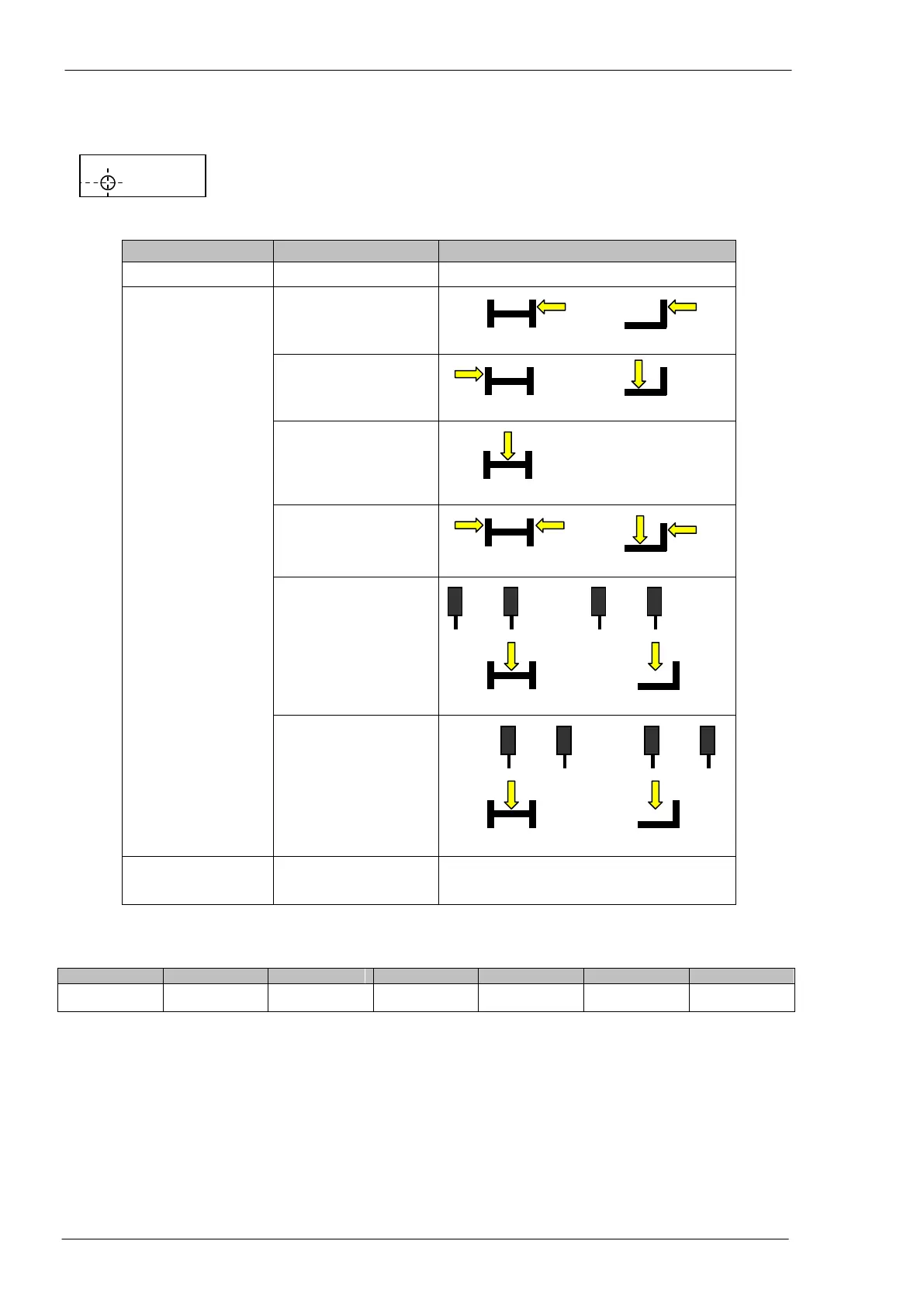

Programming: single hole
Meaning of the fields and possible choices
FIELD
CONTENT
MEANING
TYPE
No code (empty)
Single hole
SIDE
DA
DB
DC
DA+DB
All profiles except “L”
DCD (only for machines
with two drilling heads)
“L” profiles
DBD (only for machines
with two drilling heads)
All profiles except “L”
DCS (only for machines
with two drilling heads)
“L” profiles
DBS (only for machines
with two drilling heads)
DETAILS
DRILL
Helicoidal tool; sensitive cycle allowed
DRILL 32
Tool with inserts; sensitive cycle not allowed
DRILL 33
High speed tool; sensitive cycle not allowed
Example: single hole with diameter 20 mm to be performed with inserts tool on the web
LINE
TYPE
SIDE
DIAMETER
X
Y
DETAILS
001
DC
20.000
75
150
DRILL 32
NOTE The values of X and Y coordinates are only as instances.
►│◄
►│◄
X
Y
►│◄
►│◄
►│◄
►│◄
►│◄
►│◄
►│◄
►│◄
►│◄
