Model 1001 DFB Programming and operating manual
FICEP S.p.A. 69
.

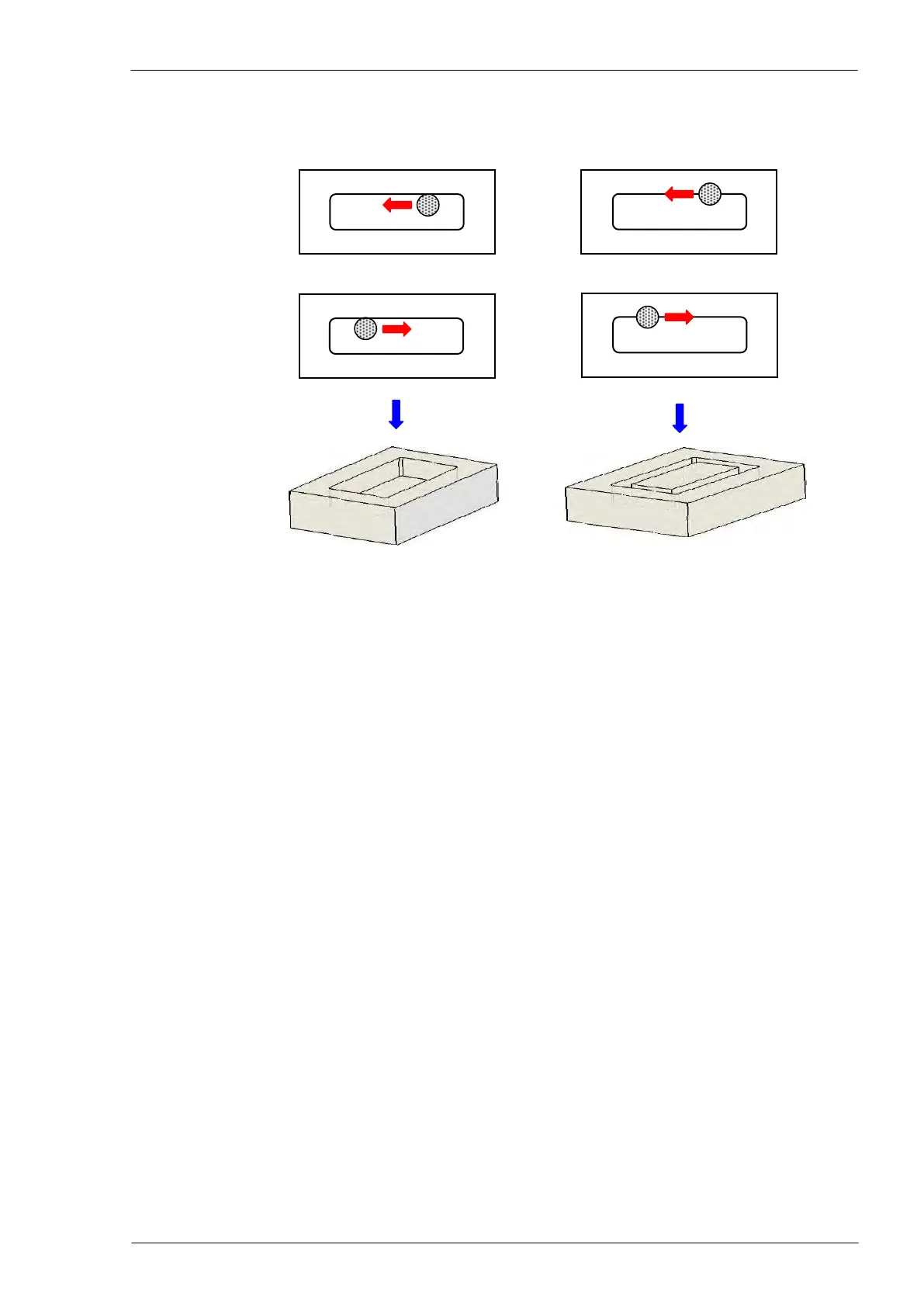

How the CNC must take into account the size of the tool.
Tool tangential rotation speed; the correct value must be provided by the supplier
Optional user code to identify the tool
Total depth of working; this is the entry n. 11 of the setup table (see page 45). This value
is always negative because it represents a coordinate on the opposite side of material
with reference to the tool.
POCKET operation: depth of the pocket
MILL operation: bigger than material thickness
Depth of first pass of the tool; this is the entry n. 12 of the setup table (see page 45).
POCKET operation: first pass depth; positive value
MILL operation: this operation is carried out in just one pass entry 06 = entry 05
Increment between two subsequent passes; this is the entry n. 13 of the setup table (see
page n. 45). This value is always positive because it is an increment and not a coordi-
nate.
POCKET operation: real increment between two subsequent passes
MILL operation: entry 06 = entry 05 entry 07 not used
Automatic execution of particular drilling and pointing operations
Programming short cuts for basic recurring operations are available.
Automatic execution of web drilling and contemporaneous flanges pointing
With the cursor in the TYPE field press F4 and select the “COPEP” operation; a window opens to allow
the operator to define parameters for basic drilling and pointing operations; to modify the operator must
press the F2 key of the PC keyboard.
