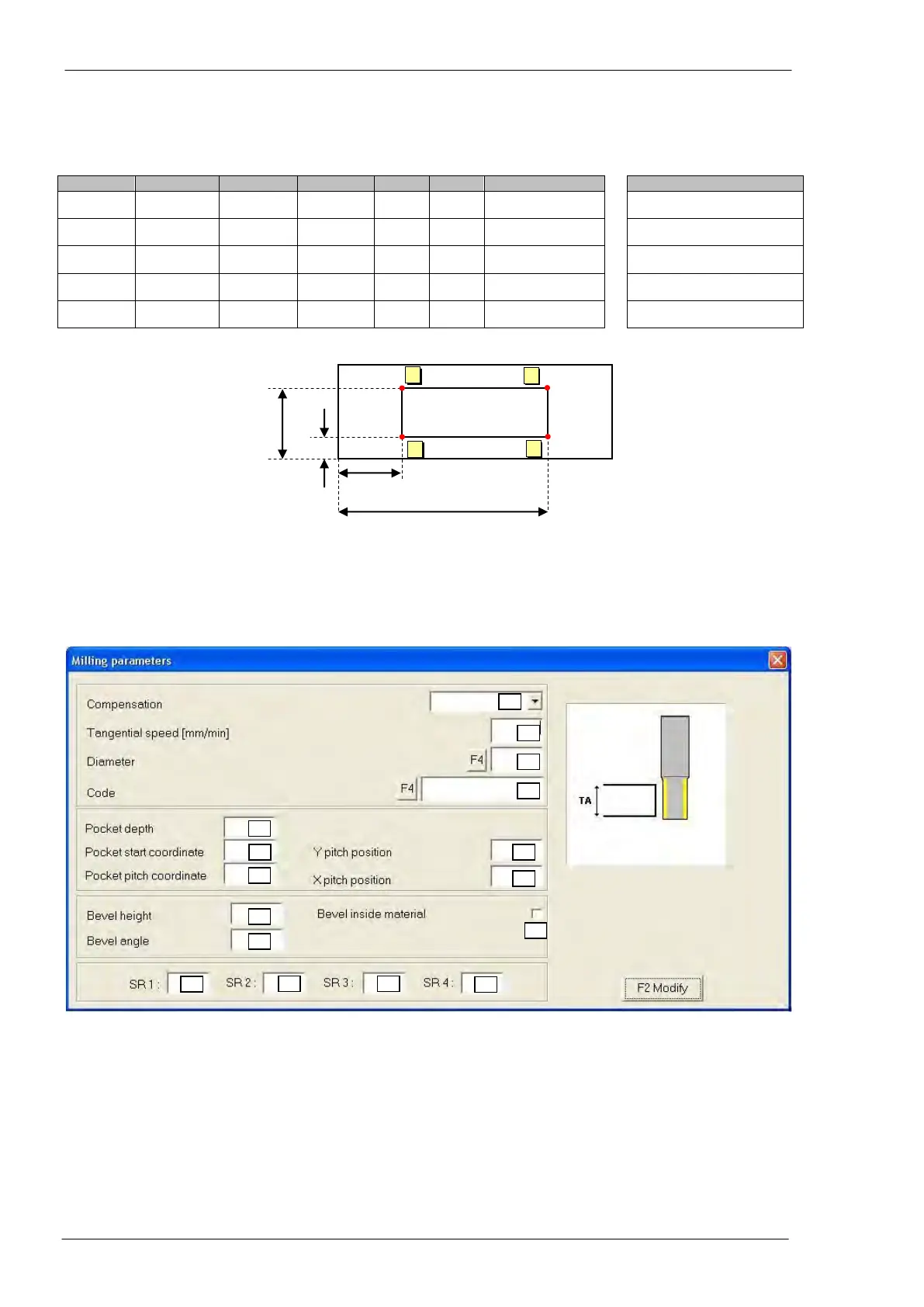

Example of program for milling or pocketing operations: slot carrying out
LINE
TYPE
SIDE
RADIUS
X
Y
DETAILS
REMARK
001
LEAD
DC
100
50
POCKET / MILL
Start from point n. 1
002
CUT
DC
400
50
Removal up to point n. 2
003
CUT
DC
400
150
Removal up to point n. 3
004
CUT
DC
100
150
Removal up to point n. 4
005
CUT
DC
100
50
Removal up to point n. 1
When the cursor is in the “DETAILS” field of the “LEAD” instruction press “Enter” of the PC keyboard; a
window opens in which the programmer can define the working parameters.
