Manual control of the auxiliary devices and adjustments
The auxiliary push-buttons panel
The auxiliary push-buttons panel includes the auxiliary devices controls.
ATTENTION: the configuration of this push button panel, number, disposition and meaning of
the push buttons, is strictly complied to the 1001DFB configuration bought and to

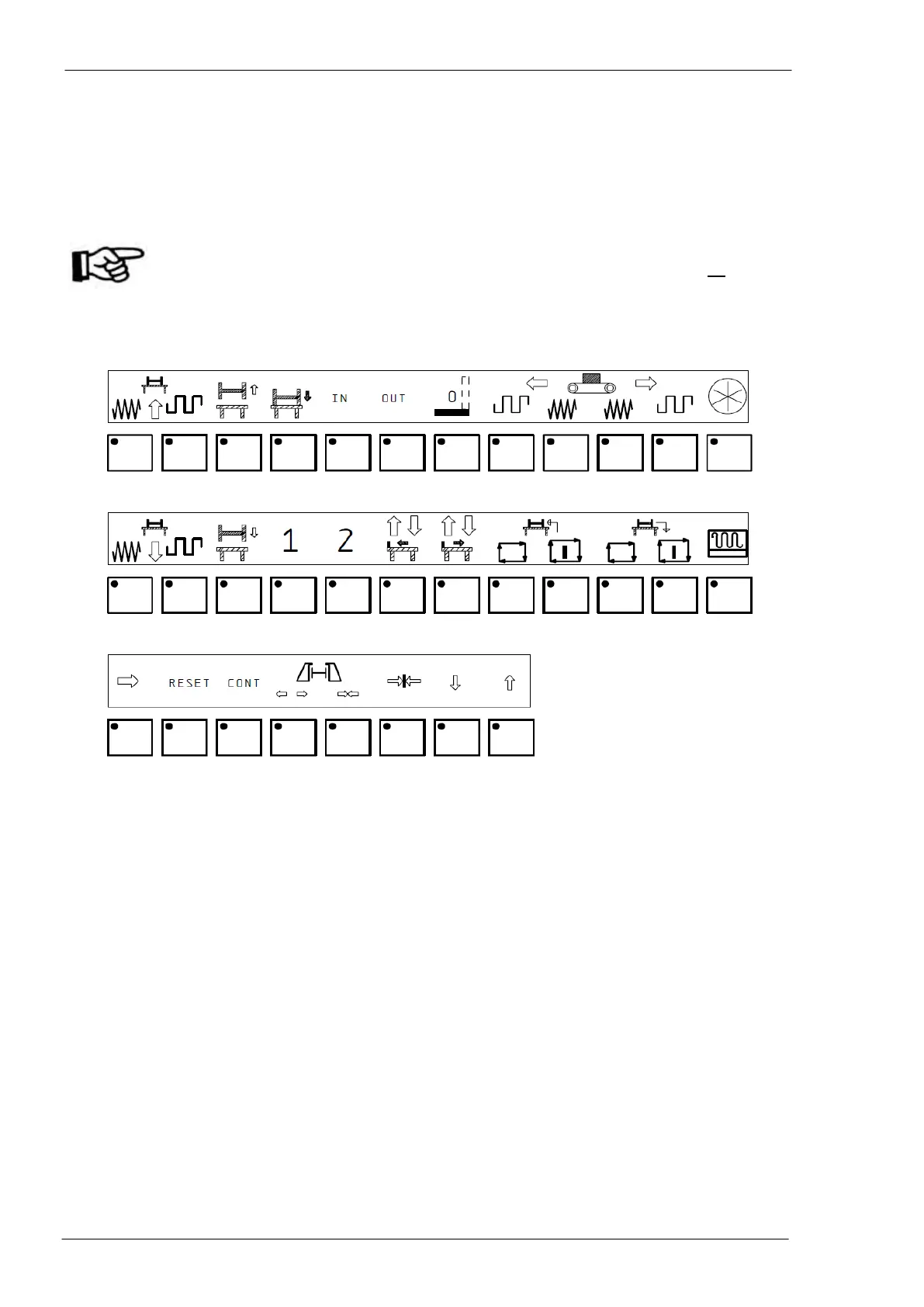

its insertion in a production line. The following “general” picture shows all possible
controls and can partially correspond to the machine auxiliary push-buttons panel.
For special and/or customized push buttons not shown in this manual, a special
documentation will be supplied.
Functions of the auxiliary push buttons panel
01: Slow forward of In/Out transfer tables
02: Fast forward of In/Out transfer tables
03: Command of carts lifting
04: Command of carts in middle position
05: Selection of the entry transfer table
06: Selection of the exit transfer table
07: Lifting/lowering of the alignment devices
08: Fast forward of the powered roller way
09: Slow forward of the powered roller way
10: Slow backward of the powered roller way
11: Fast backward of the powered roller way
12: Reservation of the unloading table
13: Slow backward of In/Out transfer tables
14: Fast backward of In/Out transfer tables
15: Command of carts lowering
16: Selection of unloading zone n.1 (carts only)
17: Selection of unloading zone n.2 (carts only)
18: Command of double catches rotation towards
the stationary vice side
19: Command of double catches rotation towards
the mobile vice side
20: Selection automatic bar loading on the table
21: New bar insertion on the table
22: Activation/deactivation of material automatic
unloading with magnet
23: Activation/deactivation of material automatic
unloading with roller way
24: Activation of unloading magnet in manual mode
25: Activation/deactivation of lateral unloading
“shutter” device
26: Alarms and messages reset
27: Operator answer to confirm
28: Opening of drilling unit mobile vice
29: Closing of drilling unit mobile vice
30: Opening/closing of the pincher
31: Pincher lowering (only with opened pincher)
32: Pincher lifting (only with opened pincher)
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
