CONTROLS
1001 DFB
Drilling & Sawing Line
The push button lights when a tool change is in progress: the
operator may press it before entering in the machine protected area
(the system goes in setup mode) in order to adjust the external
lubrication jet.

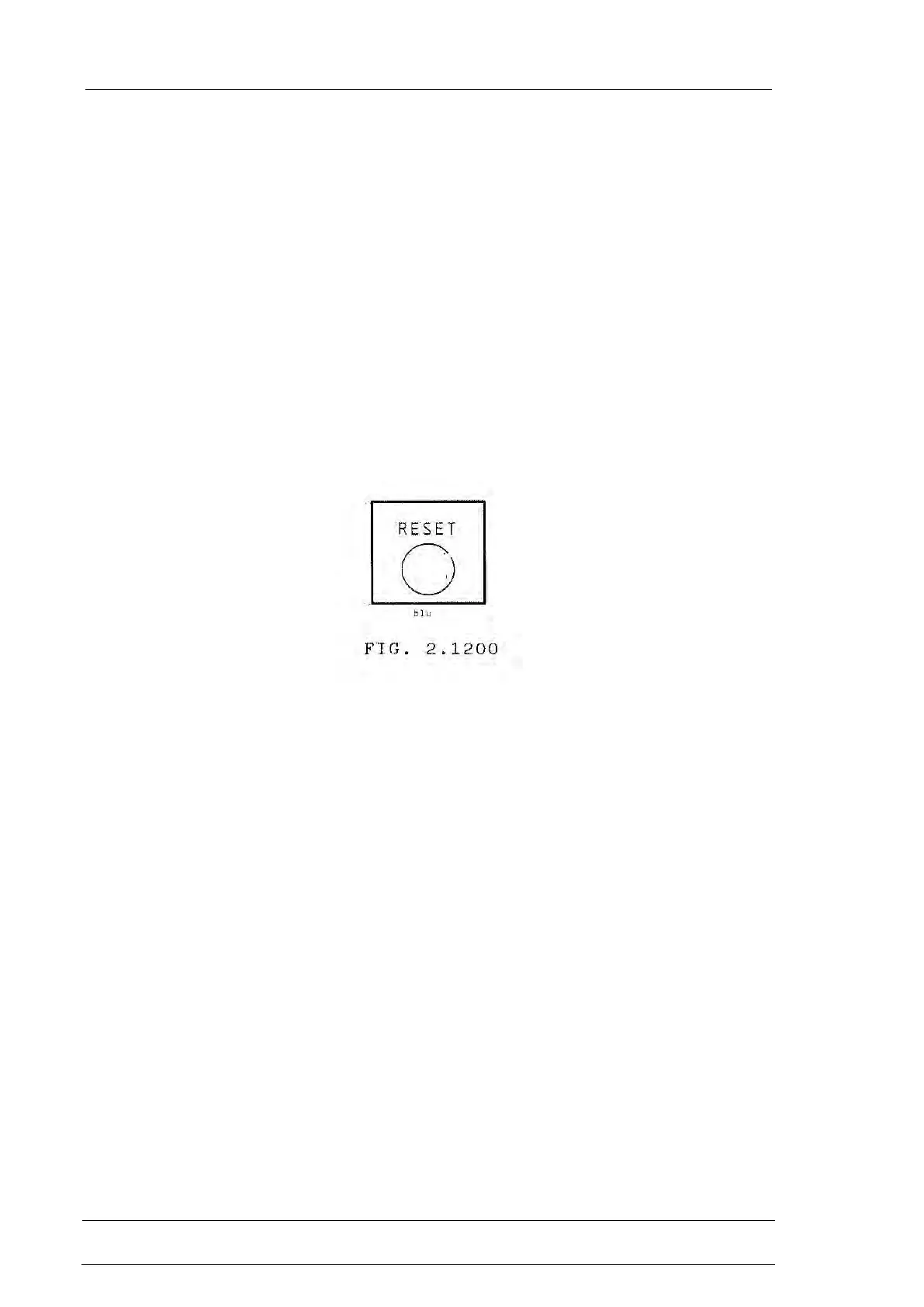

3.2 Push button of RESET (optional) Fig. 2.1200
Emergency stop reset push button. It is placed on the door of the main electric
board (where the three phase supply of the whole system is connected).
