Model 1001 DFB Programming and operating manual
FICEP S.p.A. 25

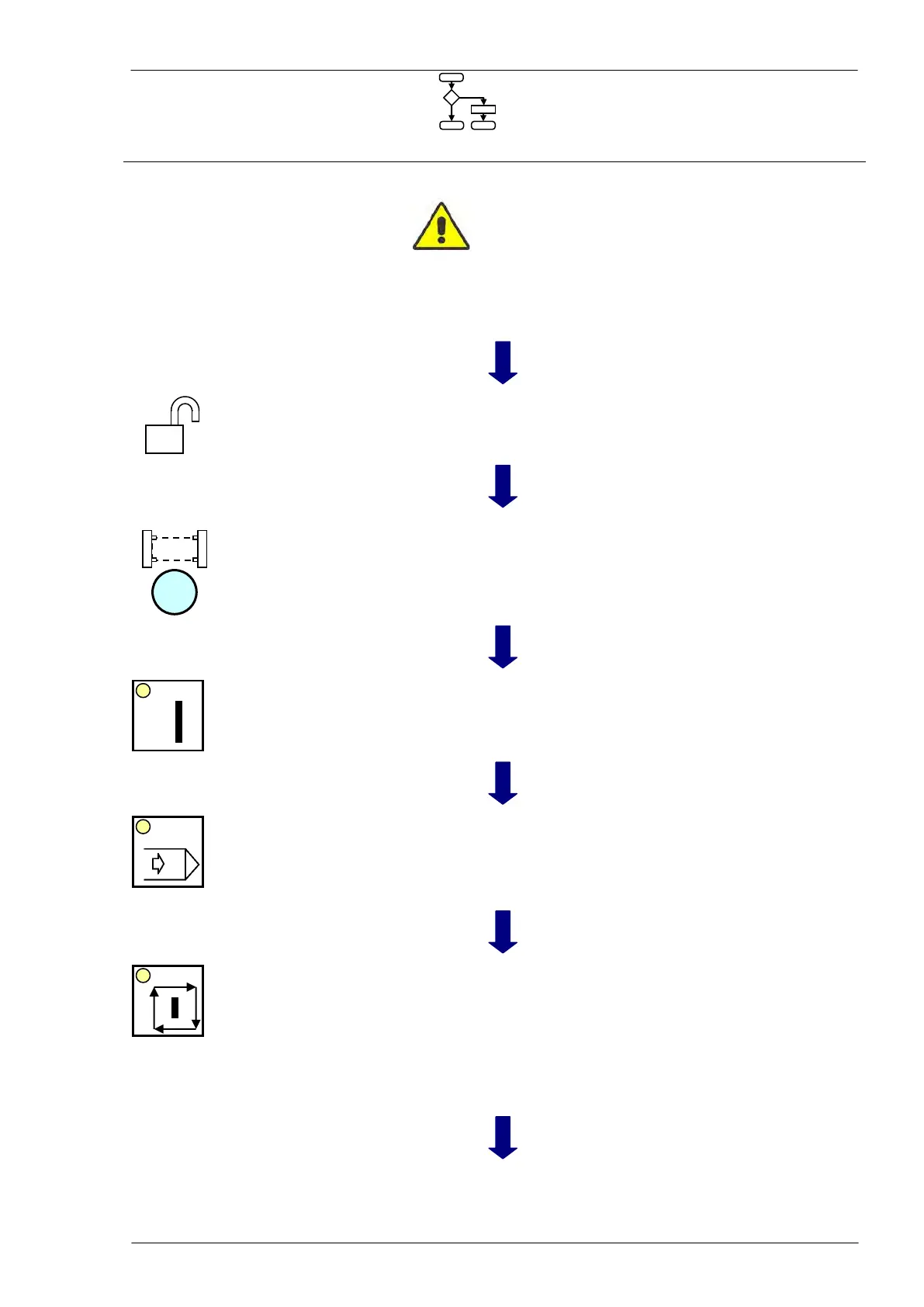

Procedure to execute the axes zero cycle
System start-up procedure ended correctly; main
CNC windows displayed.
Select the “Execution” section of
the CNC software environment
It allows displaying the CNC environment window with
the main axes numerical coordinates.
All coordinates values are in red colour. That
means it is necessary to execute the axes zero cycle.
Rotate the key-type selector
switch in central position.
The operator can control the system
Reset of protection barriers alarm
The alarm of protection barriers interruption (if provid-
ed) is RESET
Switch the auxiliary circuits on.
The oil pump starts and the oil pipes goes under
pressure; the LED of the push button remains illumi-
nated and the line is in stand-by mode
Select the automatic execution
push button
The continuous execution mode is selected. The LED
remains illuminated, whereas the LED of Cycle Start
push button is blinking to signal that the system is
ready to Start
Press the “Start cycle” push but-
ton to start the axes zero cycle.
The axes start to move and reach the relevant refer-
ence points; the sequence of axes movement is pre-
determined and cannot be modified; on the video ax-
es coordinates values changes accordingly. During
the execution, the LED is illuminated.
ATTENTION: the execution time of the whole zero cy-
cle changes according to the starting position of each
axis at the starting up of the line.
Condition at the end of axes zero
cycle
Axes coordinates becomes blue and the LED of the
Cycle Start push button is blinking to signal that sys-
tem is ready to start the execution of a program.
