Programming and operating manual Model 1001 DFB
60 FICEP S.p.A.

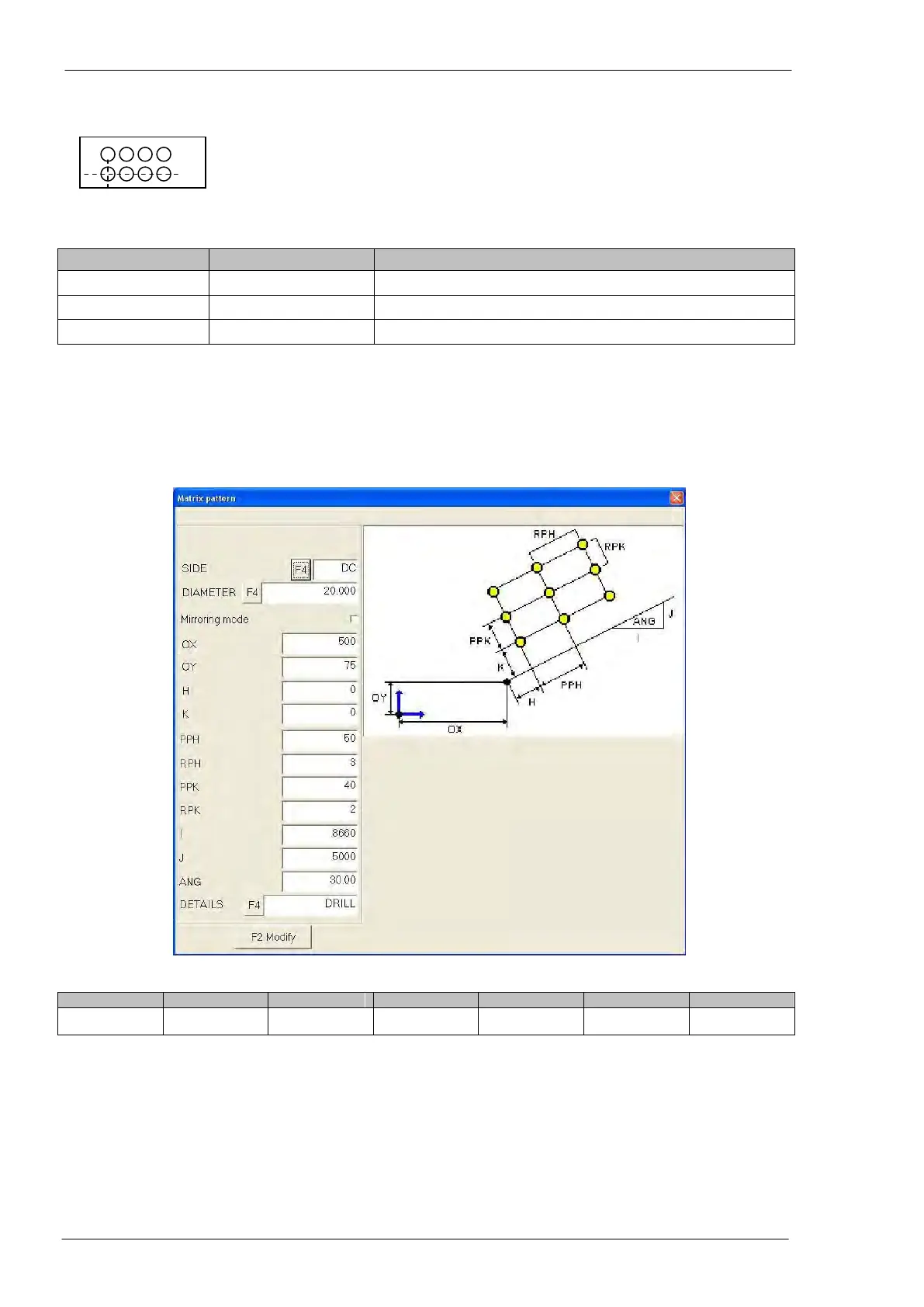

Programming: matrix pattern of holes with same diameter
Meaning of the fields and possible choices
Pattern of holes with same diameter arranged in echelon formation
Selecting “MAT” in the “TYPE” field, a window is displayed to insert the parameters of the holes pattern
configuration and of the other field of the programming line.
Example: matrix of twelve holes with diameter 20 mm executed on the web with standard helicoidal tool,
spaced 50 mm along one direction (3 repetitions) and spaced 40 mm in the orthogonal direction (2 repeti-
tions). In this example, the matrix has a 30° angle as to the longitudinal X-axis.
NOTE The values of X and Y coordinates are only as instances.
