Programming and operating manual Model 1001 DFB
36 FICEP S.p.A.
CHAPTER 5: TOOLS SETUP
Machine setup
Drilling tools

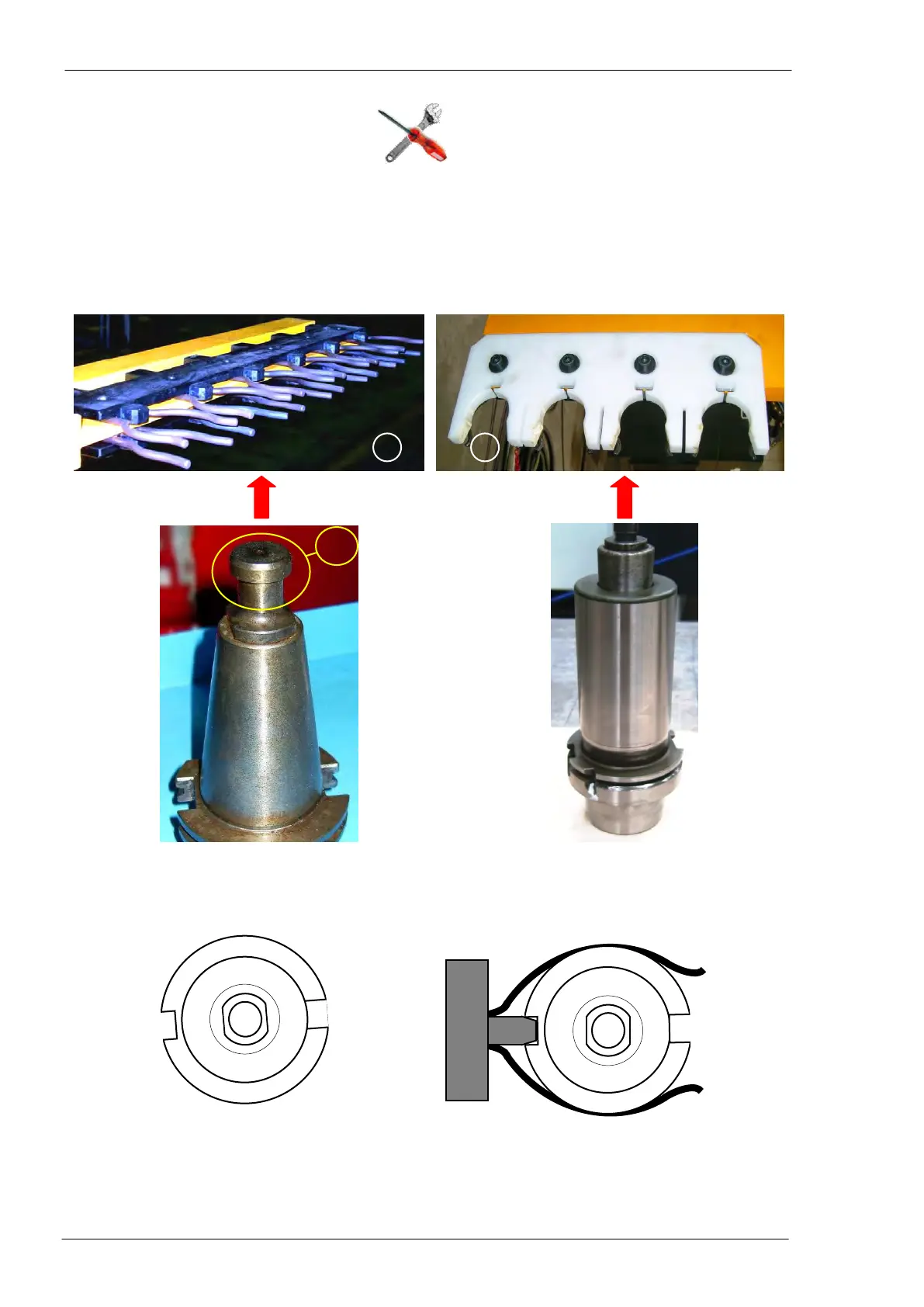

The 1001 DFB line could be provided with tools magazines depending on the configuration bought. A
magazine is built up of an arm with forked site, each of them store an ISO 45 tool holder type (1) or a
HSK-A80 tool holder type (2).
Both tool holders have two slots with same width but different depth; the tool holder is to be inserted into
the magazine so that the slot with less depth correspond with each reference pin (if present) of the forked
site.
Normally, if the reference pin is not present or the difference between the two slots is imperceptible, the
tool holder has a third slot with triangular shape; in this case the operator must insert the tool holder with
this third triangular slot turned toward the drilling head (see the following picture).
