Programming and operating manual Model 1001 DFB
20 FICEP S.p.A.

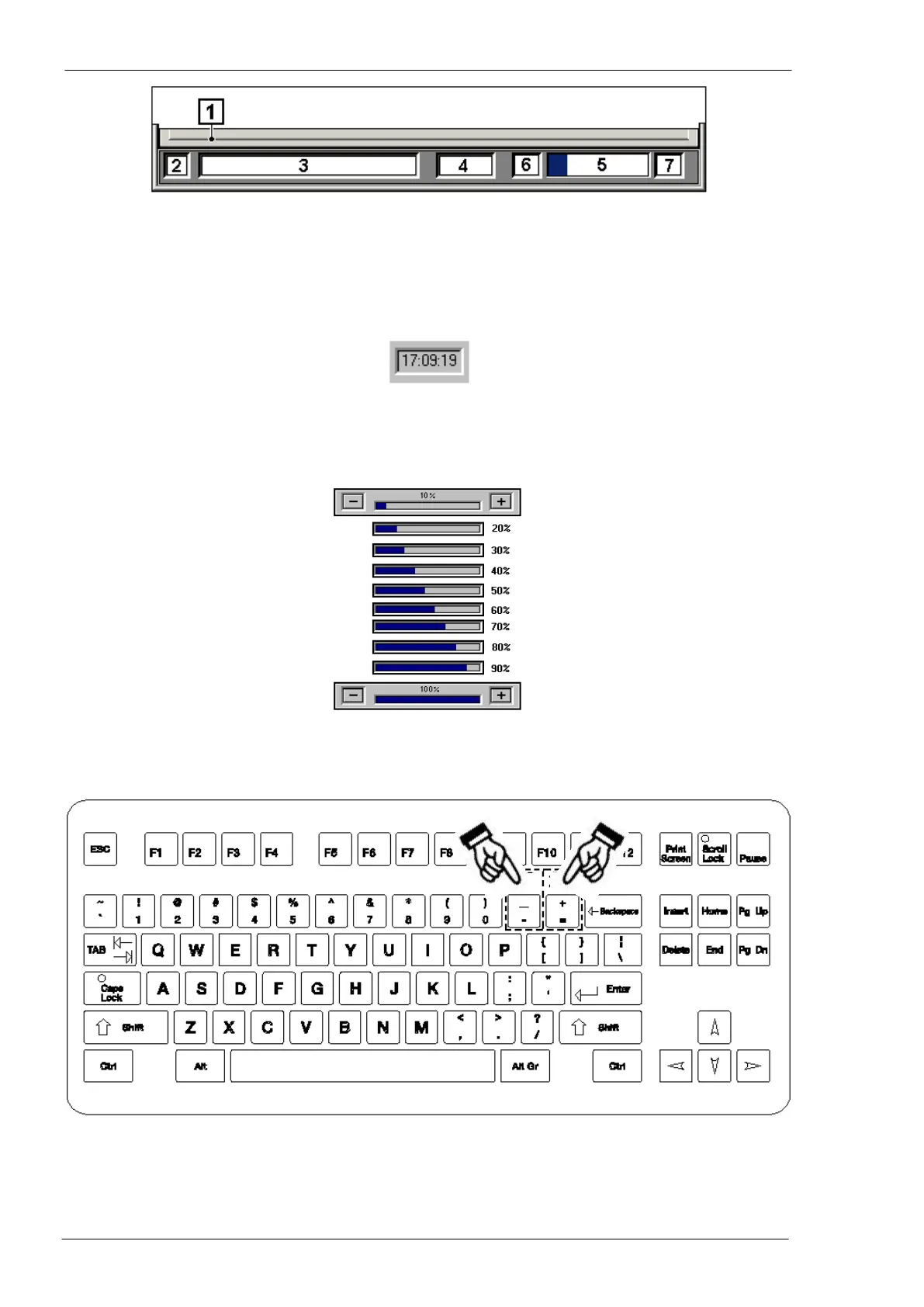

2, 3 Box signalling a current alarm, error or messages (numerical code and brief description). To open
the alarm window press the combination ALT+H on the PC keyboard.
4 shows the current time in the following format: hh:mm:ss = hours:minutes:seconds, of the clock
inside the PC.
5 per cent value of the AXX axis movement speed (from a min. of 10% up to a max. of 100%). The
value, which has been set, is displayed by a filling bar and by a value written as percent. The speed
variation is made by 10% steps.
6, 7 by “+” and “-“ graphic push buttons or the corresponding keys of the PC keyboard, the operator can
increase or decrease the speed.
