FLIR D3300 Series User Manual

Connecting Additional External Monitors
24
between the monitor connected to the VGA/HDMI port and the monitor connected to
the Main port.
24.2.1 Configuring the Spot Monitor for Full-Screen or Split-Screen
By default, a monitor connected to the Spot port automatically shows channels in Se-
quence View.

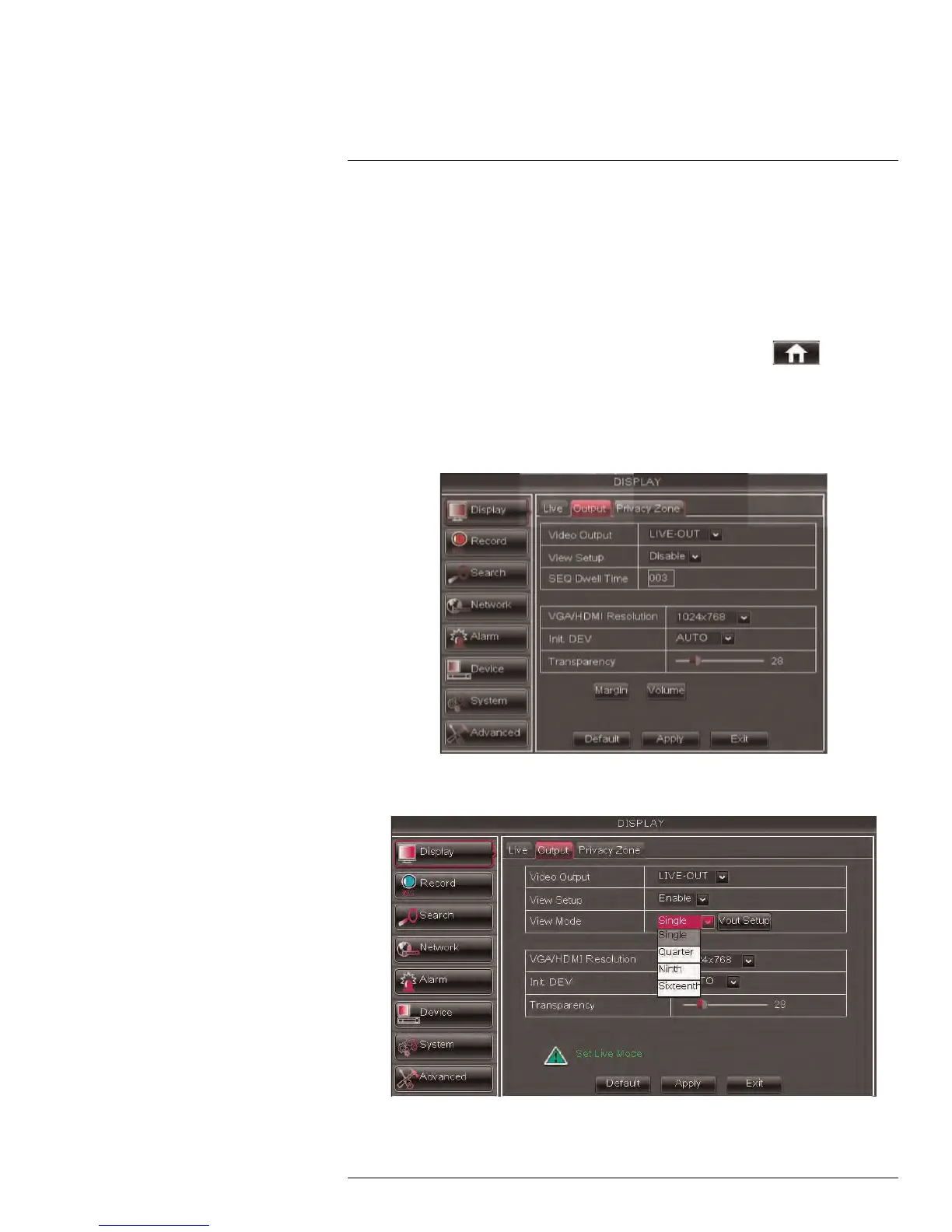

To configure the Spot monitor to show channels in split-screen:
1. Right-click to open the Menu Bar and click the Main Menu button (
).
2. Click Display and select the Output tab.
3. Under Video Output, select Spot-Out to configure settings for the monitor connected
to Spot.
4. Under View Setup, select Enable. This lets you select and arrange the channels you
want to show on the screen.
5. Under View Mode, select Single to show 1 channel in full-screen, Quarter to show 4-
channels in split-screen, or Ninth to show 9-channels in split-screen.
#LX400005; r. 1.0/13714/13883; en-US
170
