Remote Viewing Interface
16

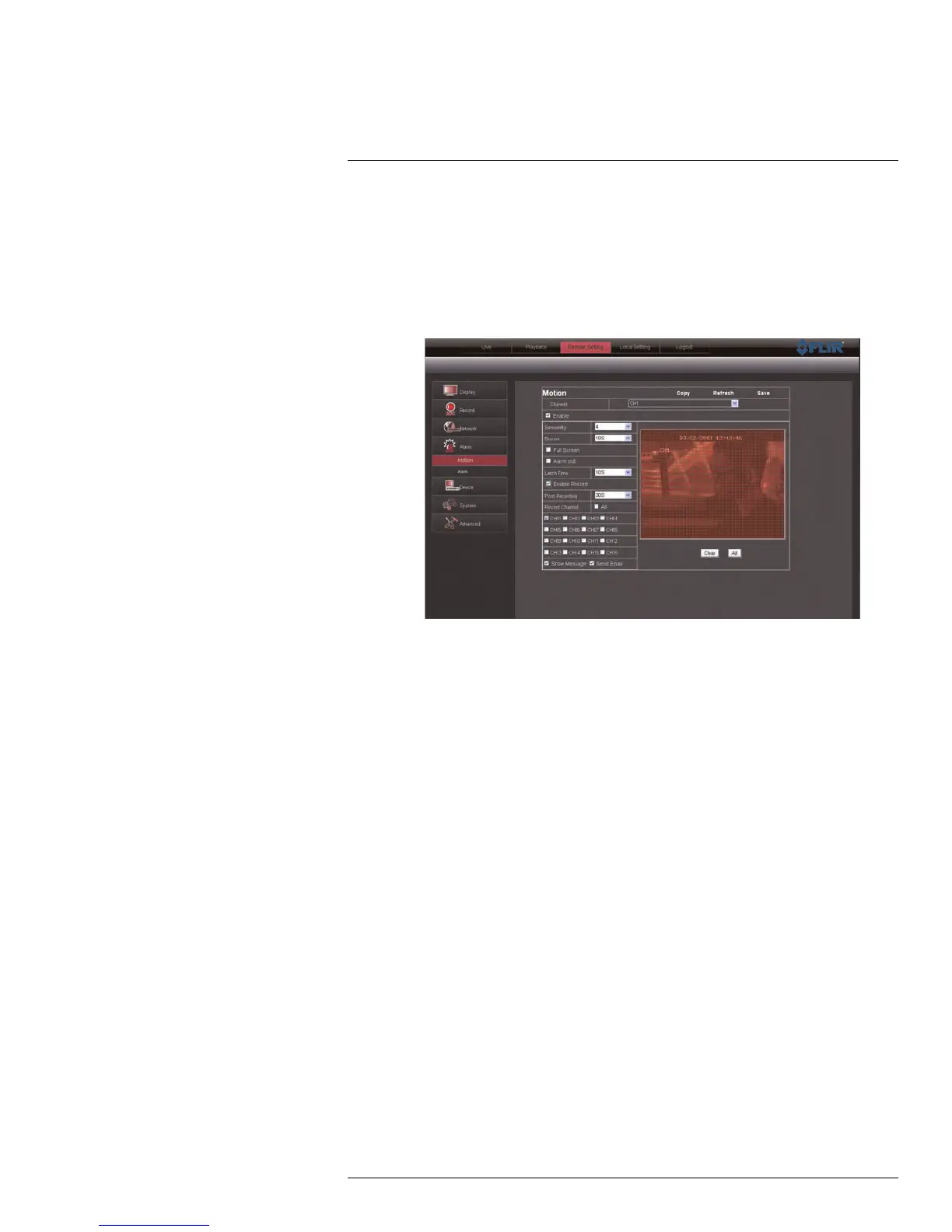

2. Configure the following motion recording parameters:
• Channel: Select the channel you wish to apply the settings to.
• Enable: Select this checkbox to enable motion recording.
• Sensitivity: Select the desired motion detection sensitivity. The greater the value,
the greater the motion sensitivity.
• Buzzer: Select OFF to disable the buzzer when the system detects a motion event
or select the duration of the buzzer after the system detects a motion event.
Click and drag to configure motion detection areas
Red: Motion detection enabled
Clear: Motion detection disabled
• Alarm Out: Select the checkbox to trigger connected alarm devices.
• Full Screen: Select the checkbox so that the channel goes into full screen mode
when motion is detected.
• Enable Record: Select to enable system recording when motion is detected.
• Post Recording: Select the post-recording time after a motion event occurs.
• Record Channel: Select the channels that should record during a motion event.
• Show Message: Select the checkbox to enable the system to display a warning
message during a motion event.
• Send Email: Select the checkbox for the system to send a email notification during
a motion event.
3. Drag your mouse cursor in the window to select the desired area to monitor the chan-
nel for motion.
4. Click Save to apply your settings.
16.20 Configuring your System to "Beep" During Motion
You can set your system to "beep" during motion. This is useful to notify you if someone
enters or exits an area.
To configure the system to "beep" during motion:
1. Click the Remote Setting tab, and click Alarm > Motion.
2. In the Channel drop-down menu, select the channel you wish to configure.
3. Select the Enable checkbox.
4. Beside the Buzzer drop-down menu, select the "beep" duration or select OFF to dis-
able the "beep."
#LX400005; r. 1.0/13714/13883; en-US
90
