Front Panel
4
4.1 4/8/12/16-Channel

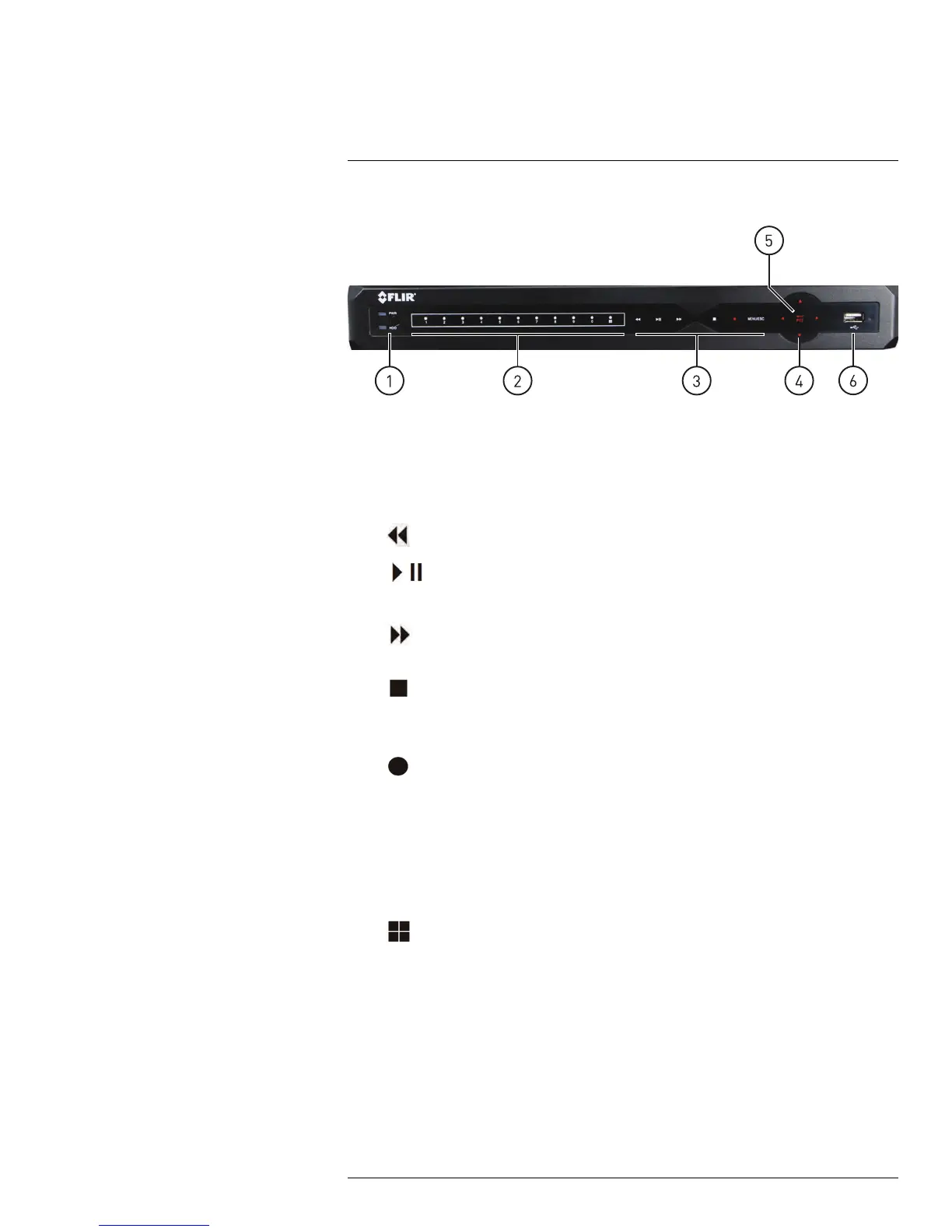

1. IR Sensor: IR receiver for the remote control.
LED Indicators:
• PWR: Power LED.
• HDD: Hard disk activity LED.
2. Menu & Playback Controls:
•
: In Playback Mode, press to rewind. Press repeatedly to increase rewind speed.
•
: In Playback Mode, press to play / pause video.
• In Viewing mode, press to open Search Menu to select playback time.
•
: In Playback Mode, press to fast forward. Press repeatedly to increase fast for-
ward speed.
•
: In Playback Mode, press to stop video playback.
• In Live Viewing Mode, press to stop DVR recording. Password required; does
not override scheduled recording.
•
: Press to stop / resume recording. When the channel displays a red box with
the letter "C", the channel is recording.
• Menu / Esc: Opens the system menu. In menus, press to go back / exit menus.
3. Channel Controls:
• Ch1 ~ Ch0: Press to view channel in Full-screen View.
• (16-Channel models) To access channels 10 and greater: Press 0 for channel 10 or
1+0 for channel 10, 1+1 for channel 11, 1+2 for channel 12, etc.
•
: In Live Viewing Mode, press repeatedly to switch between Split-screen View-
ing modes.
4. Navigation Buttons:
• ▲: Press to move cursor up.
• ▼: Press to move cursor down.
• ◀: Press to move cursor left.
• ▶: Press to move cursor right.
#LX400005; r. 1.0/13714/13883; en-US
