Rear Panel
5
9. Loop Out 1~4: BNC outputs to connect channels 1~4 to a Loop Out monitor.
10. Audio Out: BNC output for 1 audio channel (e.g. speakers).
11. HDMI: Connect to a HDMI-compatible TV or monitor (not included) to view the system
interface.
12. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
13. USB Port: Connect a USB mouse (included) or USB flash drive (not included) for data
backup or firmware updates.
14. DC12V: Connect the included AC power adapter.
15. On / Off Switch: Turns the DVR on or off.
5.6 D3332 (32-Channel)

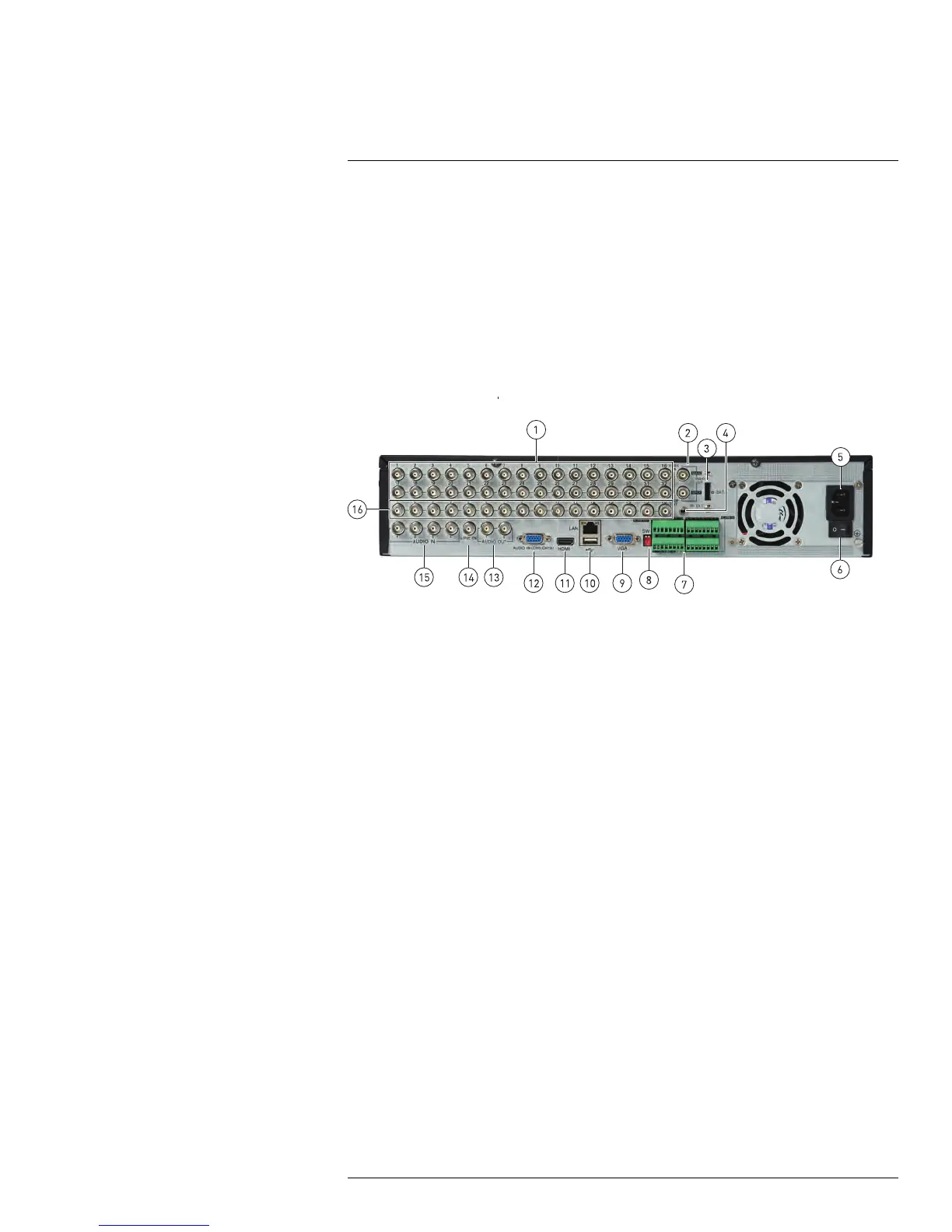

1. Video Input: Connect BNC cameras.
2. Video Output: BNC output for external or spot monitors.
3. eSATA: Connect a self-powered eSATA external hard drive (not included) for data
backup.
4. IR-EXT: Service only; not supported.
5. AC Input: Connect the included AC power cable.
6. On / Off Switch: Turns the DVR on or off.
7. PTZ / Alarm Block: Connect compatible PTZ cameras (not included) or alarm devices
(not included).
8. Not supported
9. VGA: Connect a VGA monitor (not included) to view the system interface.
10. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
• USB Port: Connect a USB mouse (included) or USB flash drive (not included) for
data backup or firmware updates.
11. HDMI: Connect to a HDMI-compatible TV or monitor (not included) to view the system
interface.
12. Audio In 5~16: Connect Octopus cable to connect audio-enabled cameras (not in-
cluded) or self-powered microphones (not included) to channels 5 through 16.
13. Audio Out: BNC output for 2 audio channels (e.g. speakers).
14. Line in: Service only; not supported.
15. Audio In: BNC inputs for audio-enabled cameras (not included) or self-powered mi-
crophones (not included) connected to channels 1 through 4.
16. Loop Out 1~16: BNC outputs to connect channels 1~16 to a Loop Out monitor.
