Rear Panel
5

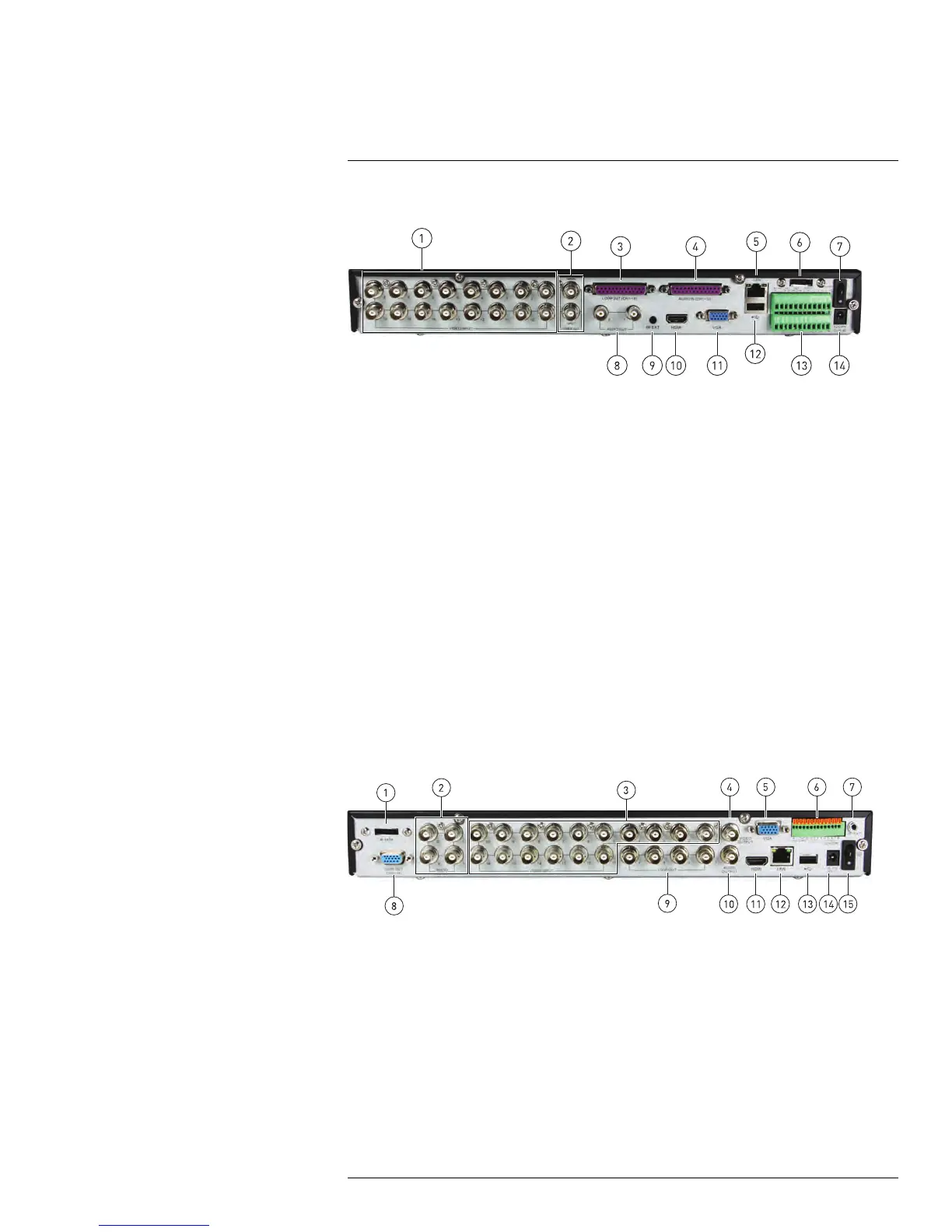

5.4 D3316 (16-Channel)
1. Video Input: Connect BNC cameras.
2. Video Out: BNC outputs for external or spot monitors.
3. Loop Out (CH1~16): Connect included Octopus cable to connect channels to Loop
Out monitors.
4. Audio In (CH1~16): Connect included Octopus cable to connect audio-enabled cam-
eras (not included) or self-powered microphones (not included).
5. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
6. eSATA: Connect a self-powered eSATA external hard drive (not included) for data
backup.
7. On / Off Switch: Turns the DVR on or off.
8. Audio Out: BNC output for 2 audio channels (e.g. speakers).
9. IR-EXT: Service only; not supported.
10. HDMI: Connect to a HDMI-compatible TV or monitor (not included) to view the system
interface.
11. VGA: Connect a VGA monitor (not included) to view the system interface.
12. USB Port: Connect a USB mouse (included) or USB flash drive (not included) for data
backup or firmware updates.
13. PTZ / Alarm Block: Connect compatible PTZ cameras (not included) or alarm devices
(not included).
14. DC12V: Connect the included AC power adapter.
5.5 D3216 (16-Channel)
1. eSATA: Connect a self-powered eSATA external hard drive (not included) for data
backup.
2. Audio Input: BNC inputs for audio-enabled cameras (not included) or self-powered
microphones (not included).
3. Video Input: Connect BNC cameras.
4. Video Output: BNC output for external monitor.
5. VGA: Connect a VGA monitor (not included) to view the system interface.
6. PTZ / Alarm Block: Connect compatible PTZ cameras (not included) or alarm devices
(not included).
7. IR-EXT: Service only; not supported.
8. Loop Out 5~16: Connect Octopus cable to connect channels 5~16 to a Loop Out
monitor.
#LX400005; r. 1.0/13714/13883; en-US
