FLIR D3300 Series User Manual

Rear Panel
5
5.1 D3304 (4-Channel)
8
1
2
3
4
5
6
7
9
1
0
1
1
1
2
1
3
1
4
5.2 D3308 (8-Channel)
8
1
2
3
4
5
6
7
9
1
0
1
1
1
2
1
3
1
4
5.3 D3312 (12–Channel)
8
1
3
4
5
6
7
9
1
0
1
1
1
2
1
3
1
4
2

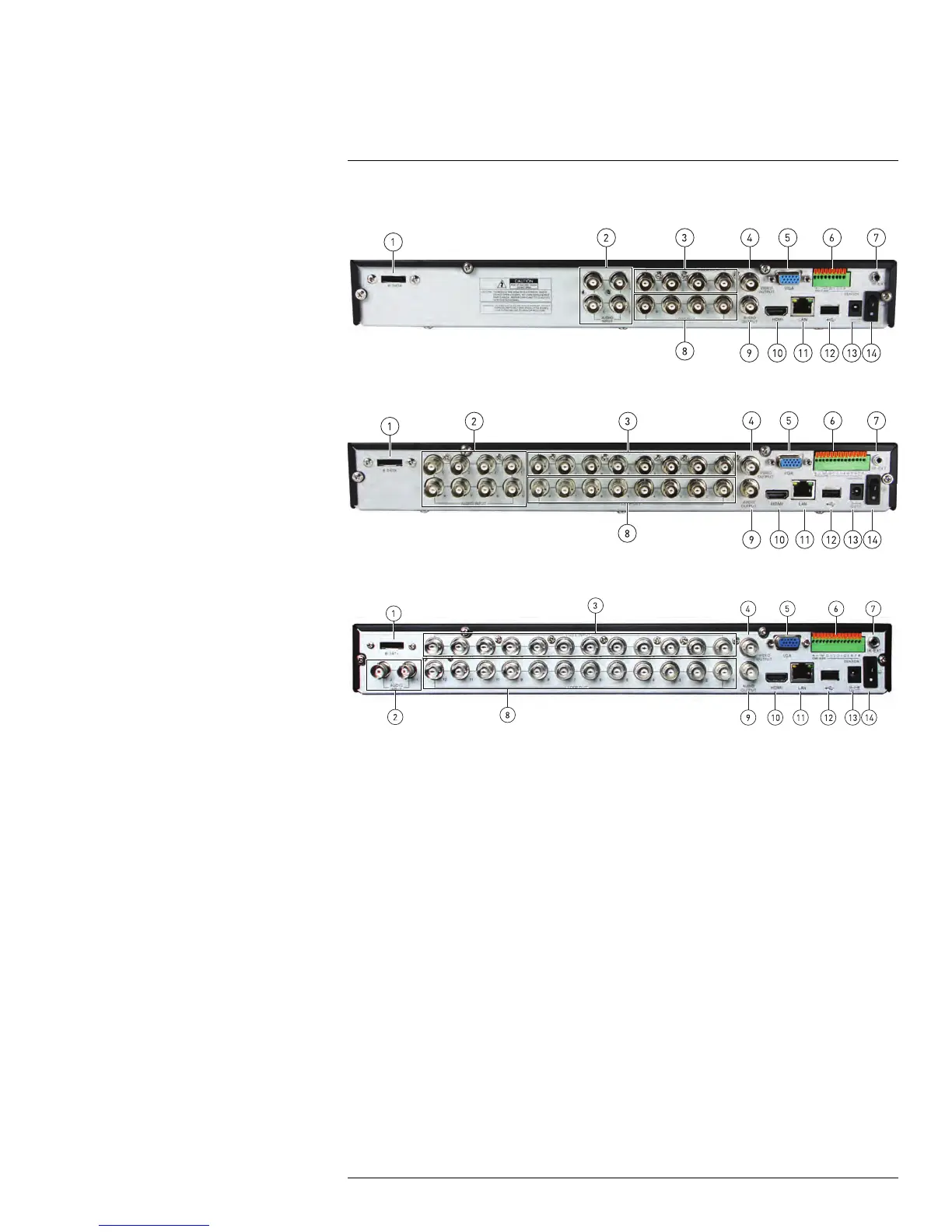

1. eSATA: Connect a self-powered eSATA external hard drive (not included) for data
backup.
2. Audio Input: BNC inputs for audio-enabled cameras (not included) or self-powered
microphones (not included).
3. Video Input: Connect BNC cameras.
4. Video Output: BNC output for external monitor.
5. VGA: Connect a VGA monitor (not included) to view the system interface.
6. PTZ / Alarm Block: Connect compatible PTZ cameras (not included) or alarm devices
(not included).
7. IR-EXT: Service only; not supported.
8. Loop Out: BNC outputs to connect each channel to a Loop Out monitor.
9. Audio Output: BNC output for 1 audio channel (e.g. speakers).
10. HDMI: Connect to a HDMI-compatible TV or monitor (not included) to view the system
interface.
11. LAN: Connect a CAT 5 RJ45 Ethernet cable for local and remote connectivity.
12. USB Port: Connect a USB mouse (included) or USB flash drive (not included) for data
backup or firmware updates.
13. DC12V: Connect the included AC power adapter.
14. On / Off Switch: Turns the DVR on or off.
#LX400005; r. 1.0/13714/13883; en-US
9

FLIR D3300 Series Specifications

General

Brand	FLIR
Model	D3300 Series
Category	DVR
Language	English
