8/10
2. Replacement and adjustment of parts
26820
26820
Zigzag adjustment
(3) Advance the paper.
1. Turn the cam section of the pressure release motor by hand and make the advance roller into the pressure
condition.
2. Press the shutter lever down while pressing the paper magazine to advance the paper to the advance roller
position by slowly rotating the knob clockwise.
3. Turn the knob of paper supply unit A2 while pressing the paper magazine.
• For details, see
☞4 Confirming the paper center of paper supply unit A2.

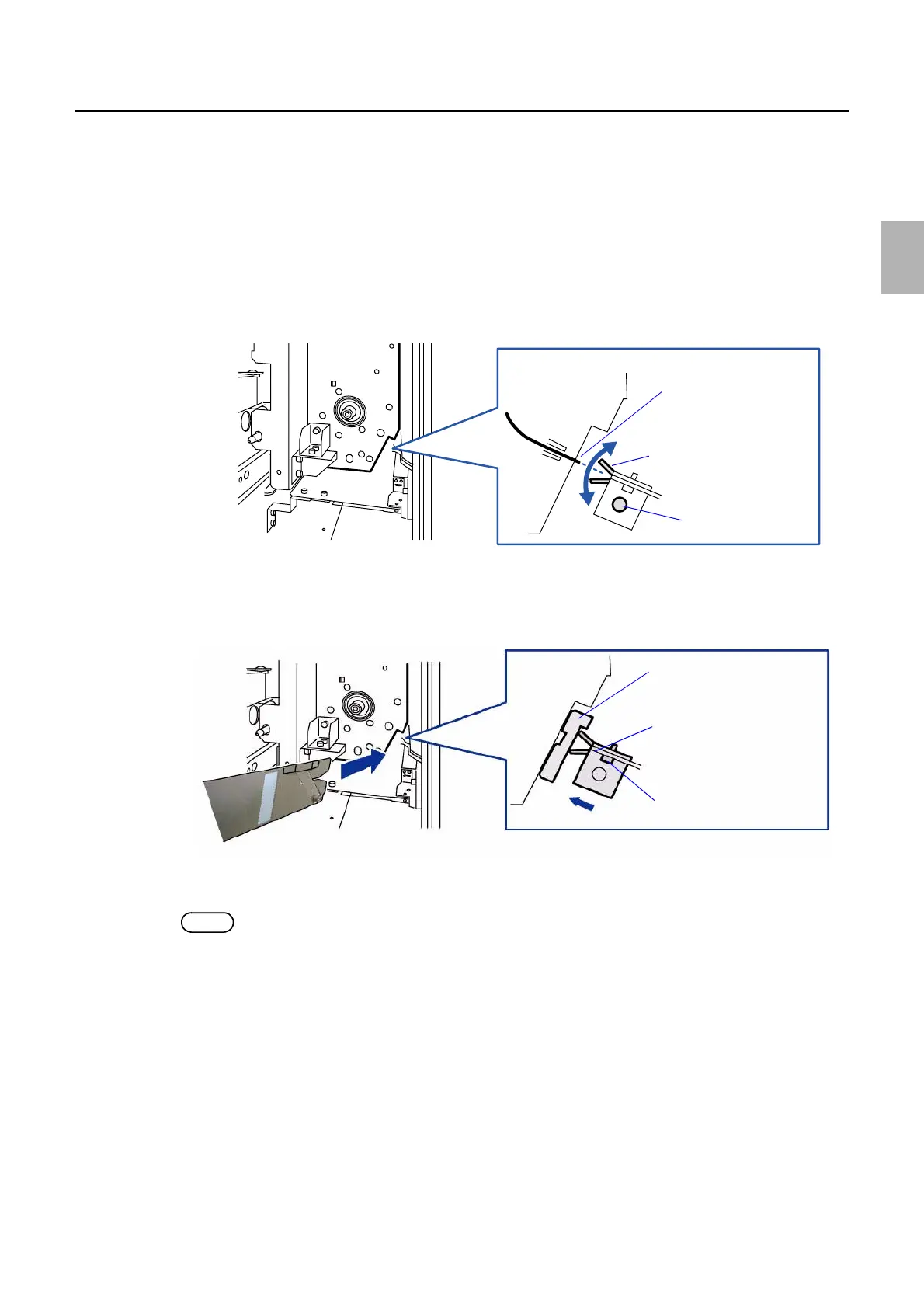

(4) Perform adjustment so that paper leading end comes to the center position of the paper guide. (one adjusting
screw)
(5) Insert the leading end of the manual cutter.
(6) Loosen two adjusting screws of the paper guide. Move the paper guide to the manual cutter and temporarily
tighten the adjustment screw on your side. Then, remove the manual cutter.
(7) Slowly move the paper guide inlet plate within 1.5 mm while visually confirming the plate, then fix it with the
adjusting screws.
NOTE
• The convex of manual cutter is 1.5 mm.
Adjusting screw
Paper guide inlet
Paper leading end
G089693
Manual cutter
Two adjusting screws
Paper guide
G090247
